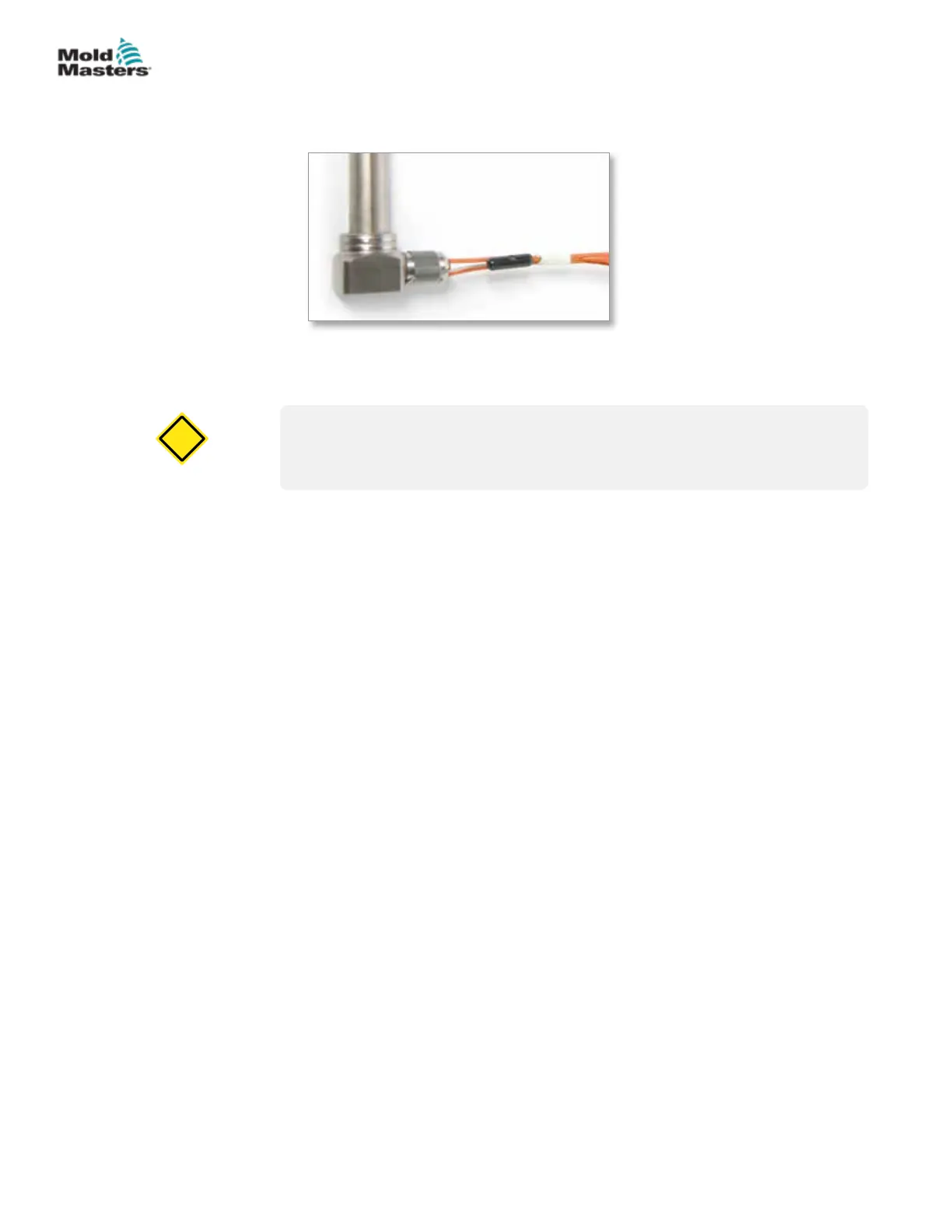

7. Use heat resistant tape to secure the nozzle wires and thermocouple
wires just above or below the insulator pod.
5.8 Thermocouple Removal For Non-Front
Mounted Thermocouples
CAUTION
Removing thermocouples will damage them and is not recommended
unless replacing a damaged thermocouple with a replacement one.
CAUTION
1. Remove the thermocouple from the electrical box and wire channels.
2. Remove the nozzle from the manifold plate.
3. Remove the thermocouple retaining clips.
4. Remove the thermocouple.
Thermocouple Installation - continued
5-8
