Mold-Masters Hot Runner - 18.4 Nozzle Thermocouple Assembly; 18.5 Melt-Disk Thermocouple Assembly

18.4 Nozzle Thermocouple Assembly
1. Although not necessary, a thermal compound may be applied to the tip of
the thermocouple.
2. Connect the thermocouple as specied in the General Assembly drawing.
See also “Section 5 - Assembly”.

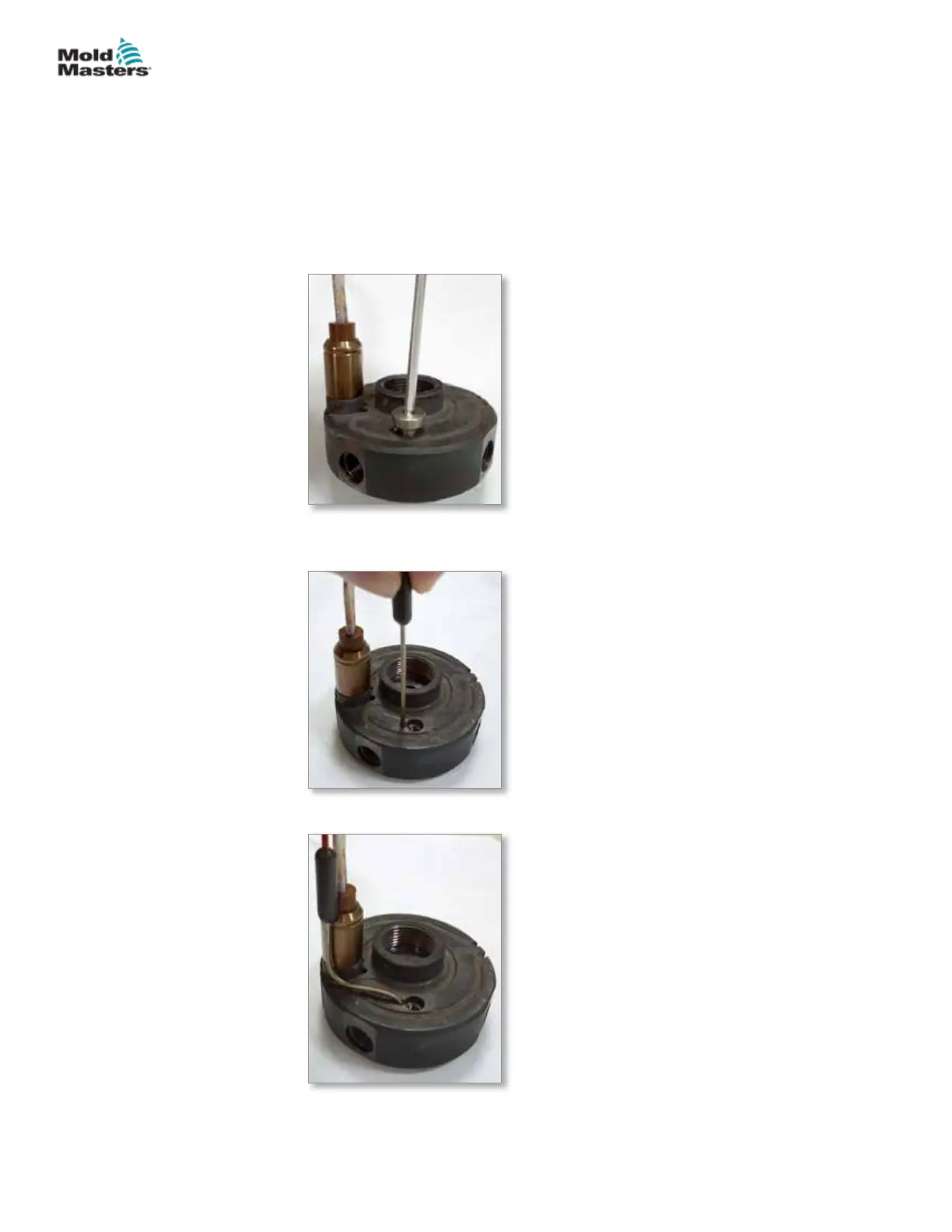

18.5 Melt-Disk Thermocouple Assembly
1. Remove the thermocouple retaining screw from the Melt-Disk.
2. Insert the thermocouple tip into the thermocouple hole until it touches the
bottom of the hole.
3. Bend the thermocouple 90° towards the terminal.
18-5MELT-DISK SYSTEM
Hot Runner User Manual
