Mold-Masters Hot Runner - Removal of Emergency Heater Sleeve

5. Make sure that the emergency heater sleeve does not contact the bottom
washer.
6. Bend and route the heater element wires alongside the thermocouple
wires through the front-mounted wire channels. See section 5.11.2.
5.12.2 Removal of Emergency Heater Sleeve
Equipment that can be used to do this procedure: snap ring pliers.
1. Open the emergency heater sleeve.
2. Use the slots on the emergency heater sleeve to pull the emergency
heater sleeve o󰀨 the nozzle. See Figure 5-14.

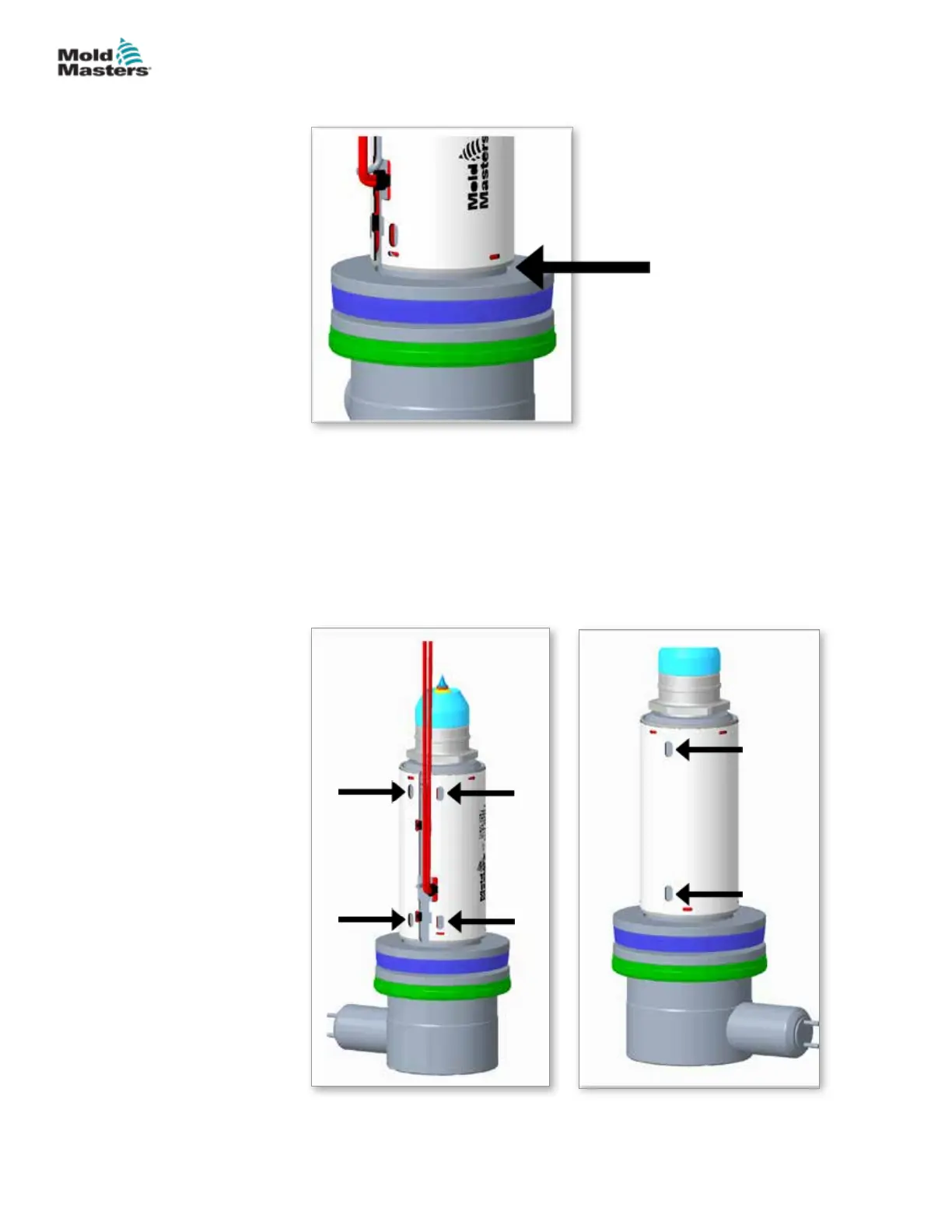

Figure 5-14 Slots on the emergency heater sleeve
5-27ASSEMBLY
