12.8.2 SE20-15 Model
1. Heat the system to allow any plastic to become soft.
2. Remove the valve pin.
3. Remove the two SHCSM5X155 mounting screws. See Figure 12-10.

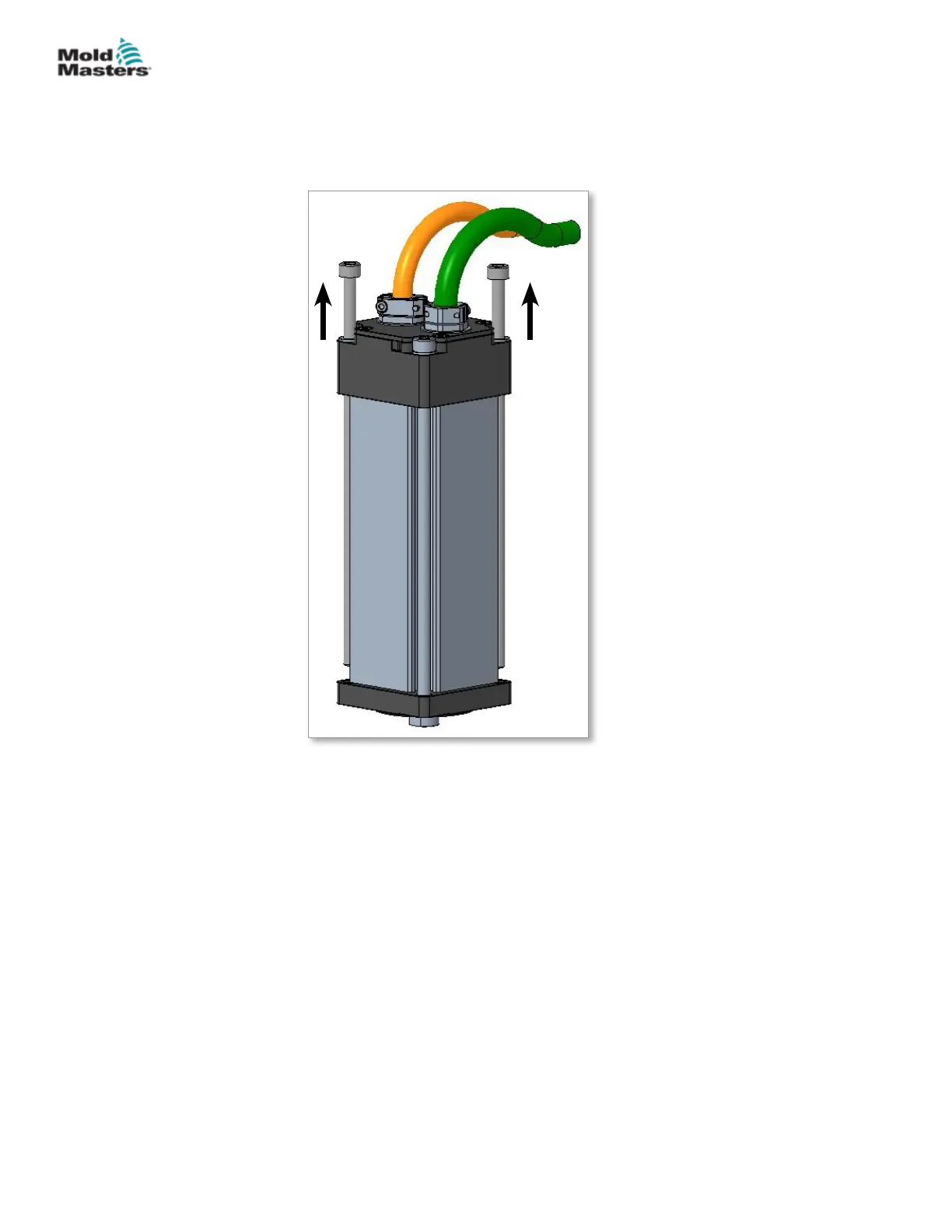

Figure 12-10 Remove the two mounting screws
4. Pull motor up until the valve pin is free to disengage.
12-12
