18.7 Assembly of Melt Disk to the Nozzle

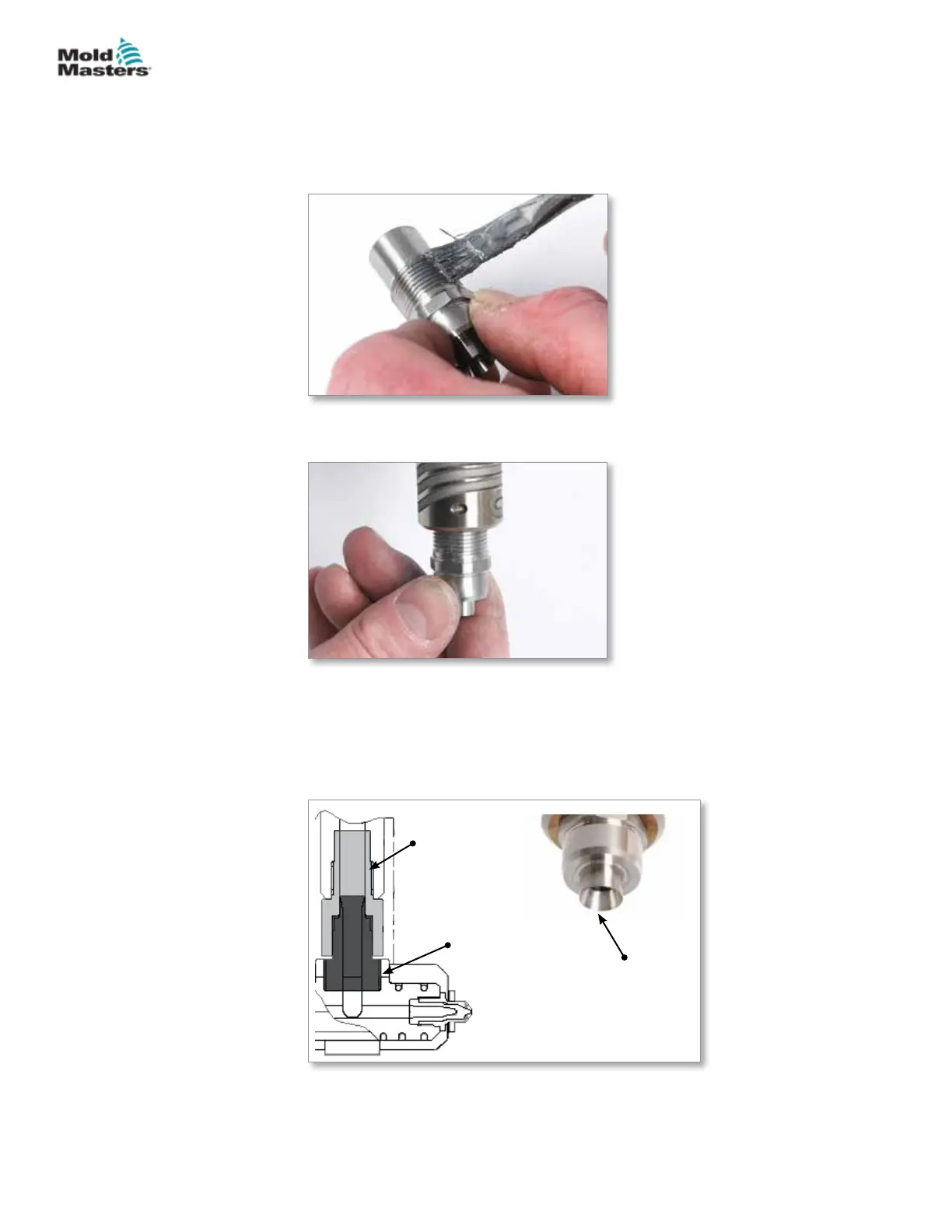

18.7.1 Reverse Two-Piece Melt-Link
1. Apply anti-seize compound to the threads of the Melt-Link using Mold-
Masters supplied compound.
2. Thread Melt-Link MTL14A into the nozzle and Melt-Link MTL14B into the
Melt-Disk.
3. Torque COLD to 27-30 Nm (20-22 ft-lb).
4. Assemble Melt-Disks onto the nozzles according to mold design via the
Melt-Link.
5. Ensure the sharp edge of the Melt-Link does not get damaged when
pushing the two halves together.
Do not damage
sharp edge
MTL014B
threaded into
Melt-Disk
MTL014A
threaded
into nozzle
18-9MELT-DISK SYSTEM
