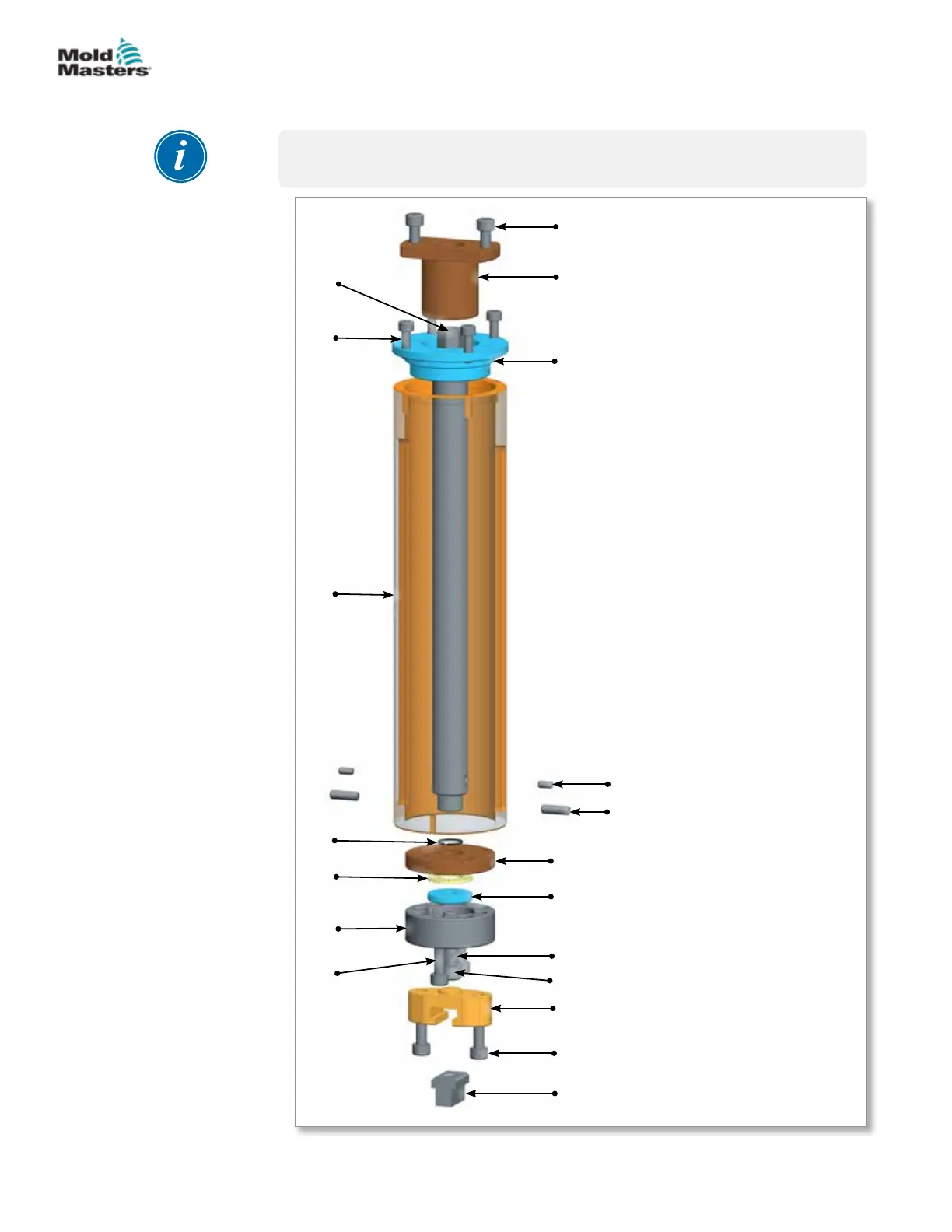

10.14 Extraction Tools for Hydraulic and
Pneumatic Actuators
IMPORTANT
EXTOOLAS10 replaces EXTOOL5500A / EXTOOL6500A / EXTOOLAS01.
1. Socket head cap screw
[M6X18]
2. Puller base adapter
3. Thrust needle roller
bearing
4. External retaining ring
5. Sleeve
6. Socket head cap screw
[M5X16]
7. Rod
8. Socket head cap screw
[M6 X 12]
9. Flange
10. Holder
11. Set screw [M4X8]
12. Set screw [M5X16]
13. Puller base -
M5 screws
14. Spacer
15. Nord lock M8.0
washer
16. Special socket head
cap screw [M8X30M]
17. Puller base
18. Socket head cap
screw [M6X20]
19. Adapter key
10-22
