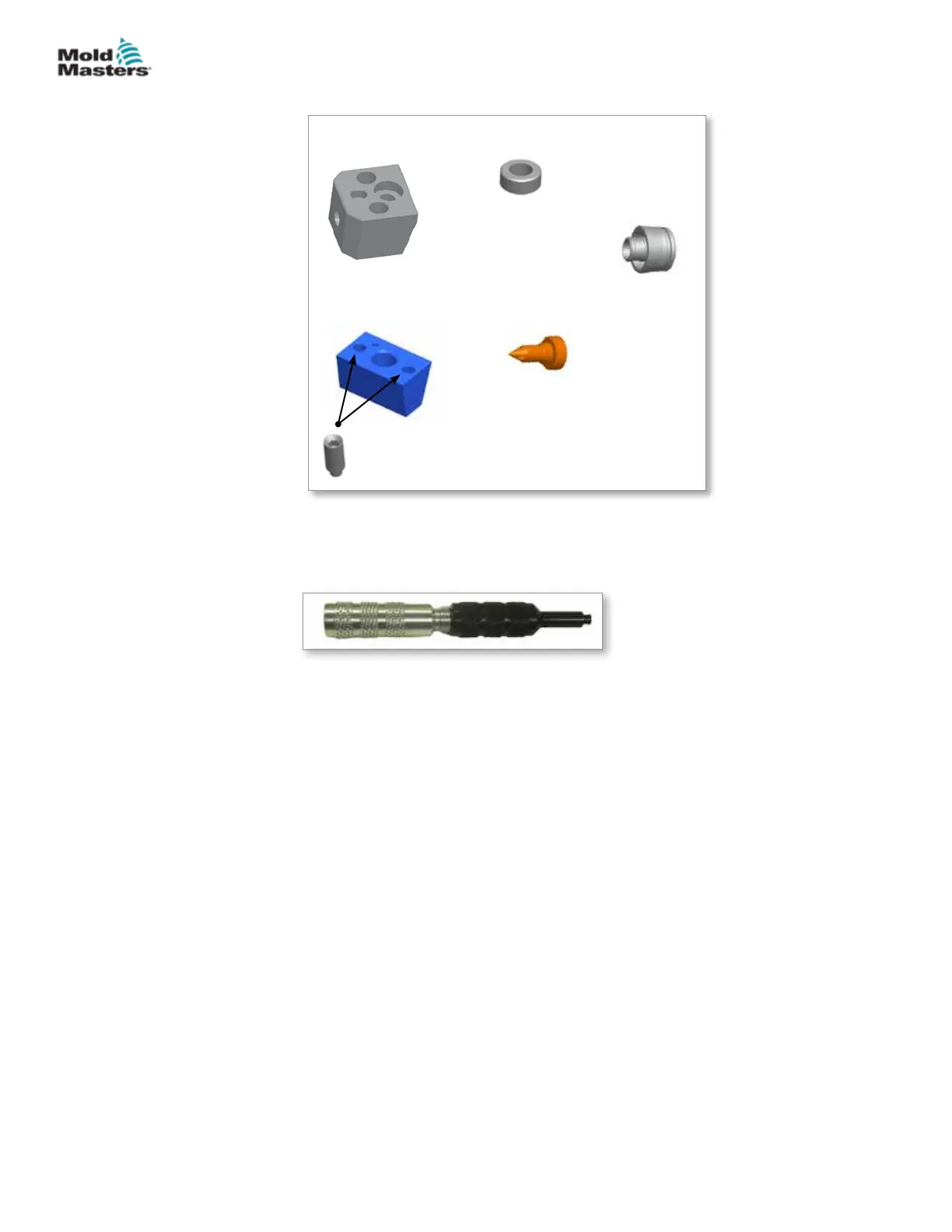

19.3.1 Melt-CUBE Design A: Gate Seal Assembly
Melt wedge
Transfer seal
Torpedo
Inseal
Load wedge
M4 set screw
(SSETSM4X10DM)
Figure 19-5 Gate seal assembly
19.3.2 Melt-CUBE Design A: Maintenance Toolkit
• Melt-CUBE inseal extraction tool (EXTOOL20)
• 2 mm (0.08 in.) hex wrench - use for M4 set screws
• 3 mm (0.12 in.) hex wrench - use for M4 screws
• 5 mm (0.2 in.) hex wrench - use for M6 screws
• SHCSM5x90mm (2) - to extract melt wedge
• SHCSM4x60mm (2) - to extract load wedge
