5.6 Water-Cooled Gate Insert Installation
(Optional)
Your system may not include a water-cooled gate insert. Refer to your
General Assembly drawing.
The water-cooled gate insert will require nal machining by tool maker.
1. Machine the gate well and nozzle well details.
2. Finish to nal height and to correct guiding diameter, if required. Refer to
your system drawing for details.
3. Clean the insert-seating bore.
4. Install O-rings onto the water-cooled gate insert.
NOTE
Align the dowel to ensure proper orientation.
1. O-rings
2. Dowel
3. Sealing bore
3
1
2
1

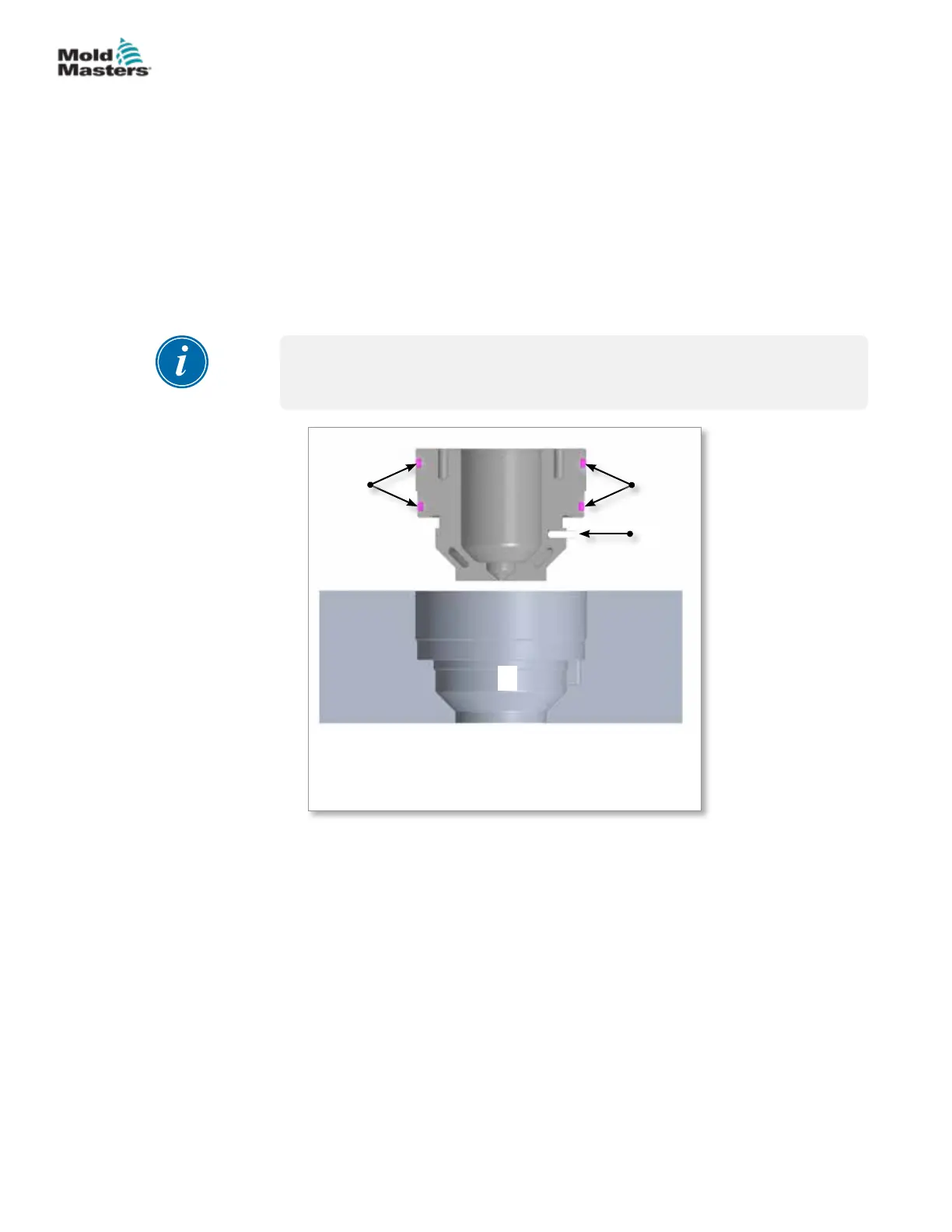

Figure 5-5 Water-cooled gate insert
5-5ASSEMBLY
Hot Runner User Manual
