13.3.13 Perform E-Drive Controller Checks
Follow the procedures listed in the E-drive controller user manual and
perform the E-drive controller checks.
13.3.14 Install the Hot Half into the Mold
CAUTION
Make sure the synchro-plate valve pins are at the open position before
shipping.
CAUTION
13.4 First Time Installation or Replacement of the
Belt

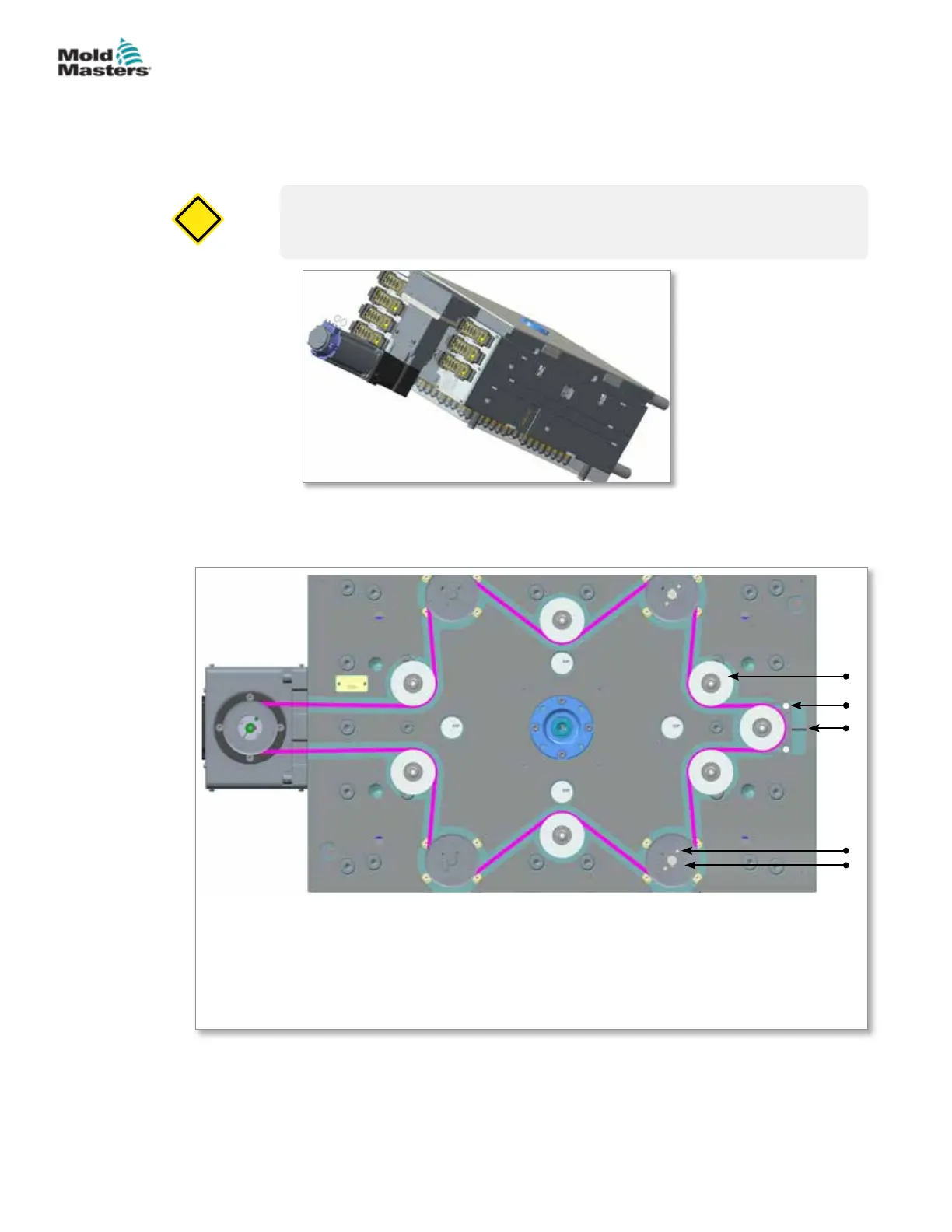

Figure 13-5 Installation or replacement of the belt
1. Idler nut and pulley
2. Tensioning idler screws
3. Idler tensioning screw
4. Taper bushing screws
5. Use standard 1/4 - 20 socket head cap screw to jack taper lock
3
4
5
2
1
13-13E-DRIVE
