4.5 Establish Your System Type
The following pages are to be used as a general guide to assist in identifying
components. Refer to your General Assembly drawings for specic
component lists. If your system does not match these systems, please
refer to other speciality systems mentioned within the manual for additional
information.
4.5.1 System With Cast-in Heater Element

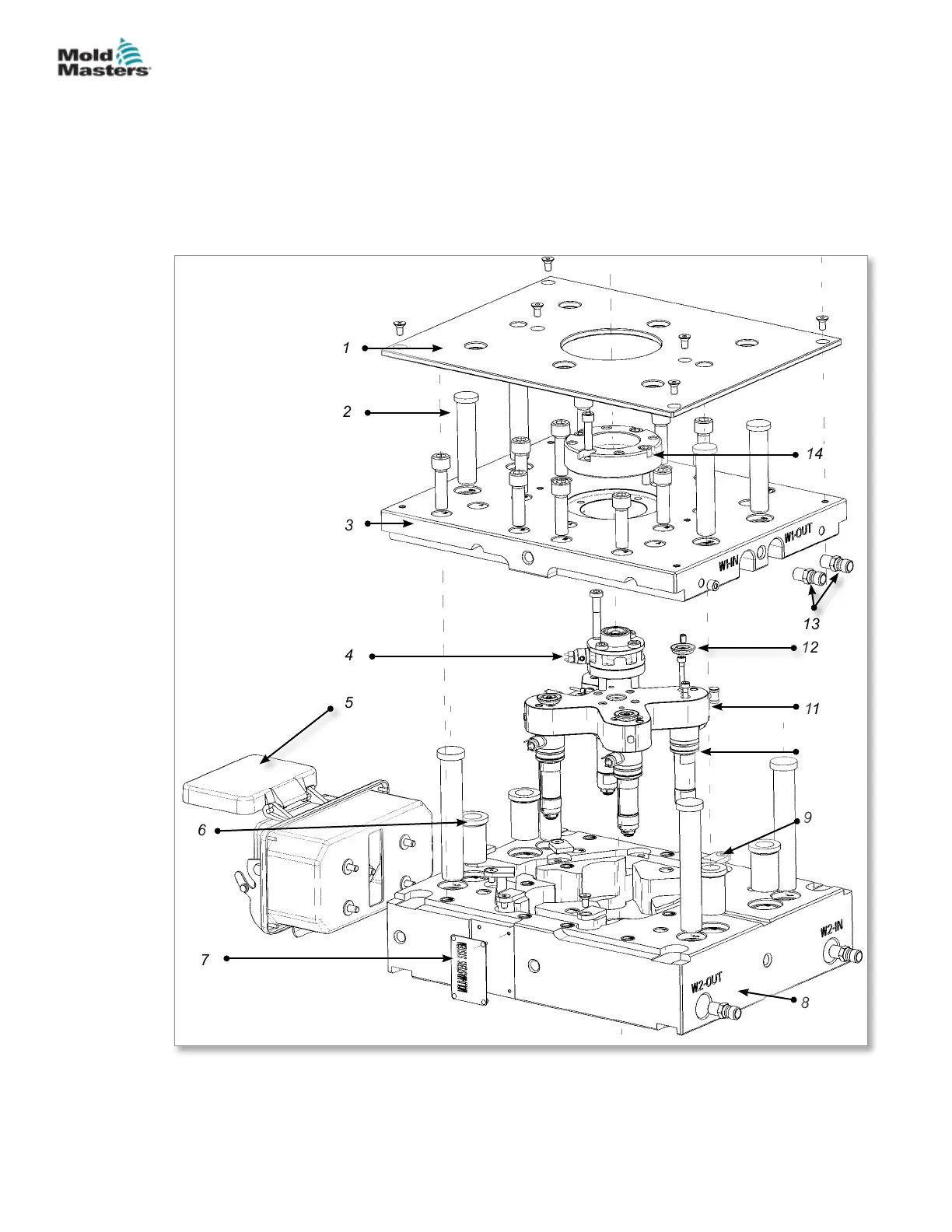

Figure 4-3 Cast-in heater element
1
2
3
4
5
6
7
8
9
14
13
12
11
10
1. Insulation board
2. Leader pins
3. Top clamp plate
4. Center heater
5. Electrical box
6. Leader bushing
7. Name plate
8. Manifold plate
9. Wire retainer
10. Nozzle
11. Manifold
12. Pressure disk
13. Jiy plugs
14. Locating ring
