5.9 Dura Line Thermocouple Installation
This page only applies to Legacy Dura Nozzles.
Mold-Masters Dura systems are supplied with an appropriate bending tool.
Any questions regarding bending tools, please contact your Mold-Masters
representative. Make sure that correct bending tool is used. Each di󰀨erent
type of Dura nozzle requires a di󰀨erent bending tool. The correct bending tool
would be supplied with your Hot Runner.

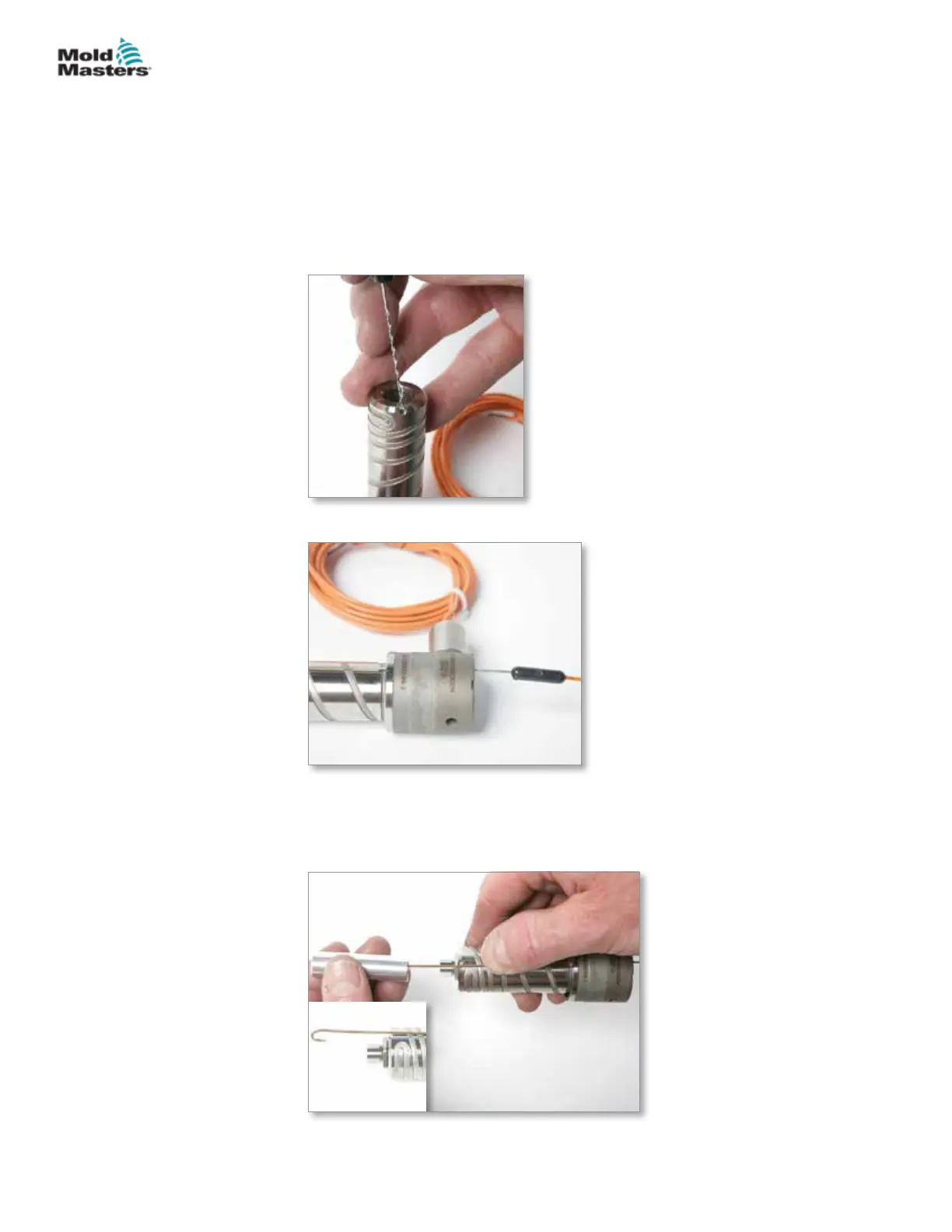

1. Clean nozzle thermocouple bore.
2. Place thermocouple through the ange of the nozzle.
3. Place the end of the bending tool all the way over the end of the
thermocouple. While supporting the thermocouple, create a 180° “sh
hook” with the tool. Make sure the bending tool is snug up against the
thermocouple.
5-9ASSEMBLY
