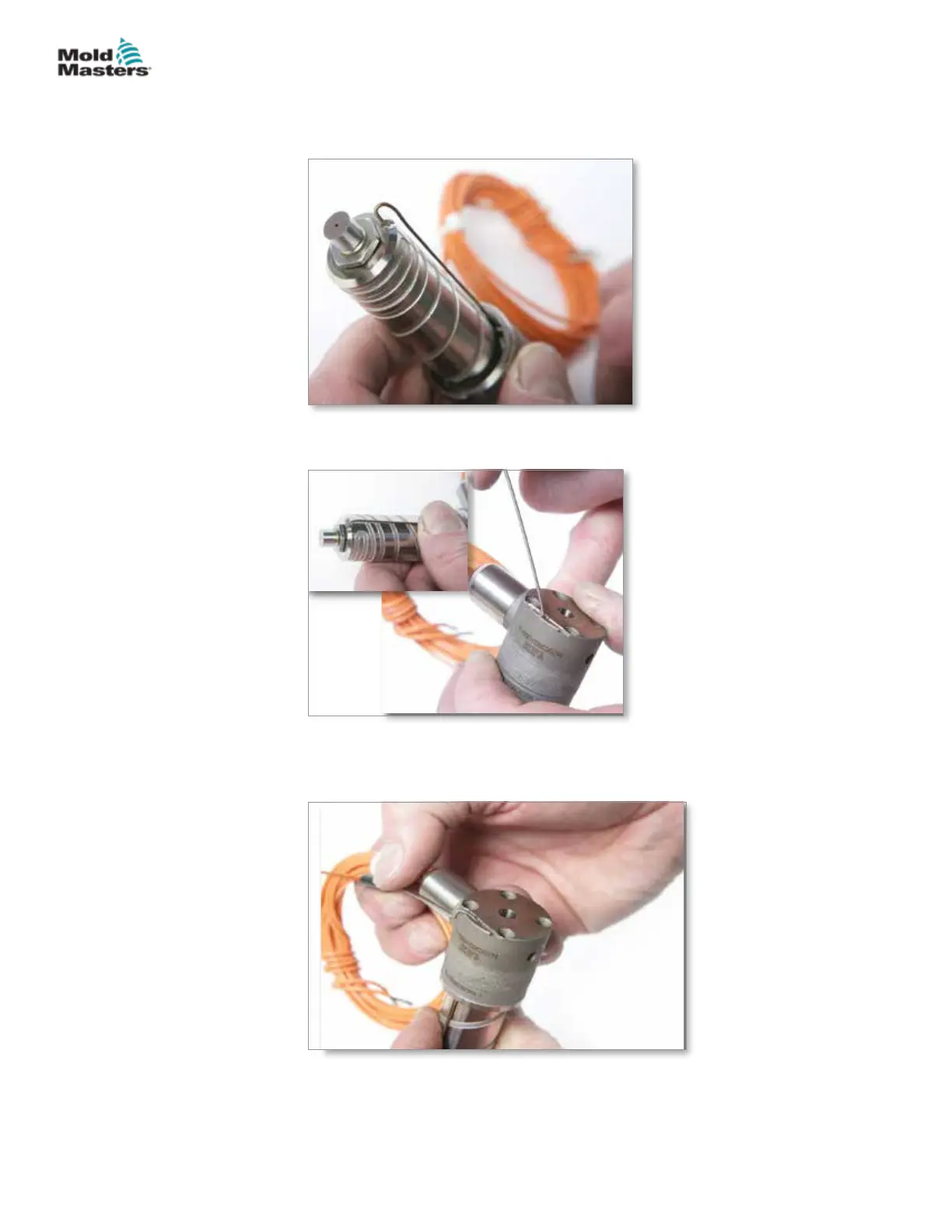

4. Insert the bent thermocouple end into the nozzle mating hole and make
sure it is fully engaged.
5. Make sure the thermocouple is fully engaged in the nozzle body while
bending the thermocouple at the ange.
6. Press thermocouple downwards to sit against terminal end and secure to
side of terminal end with heat resistant tape to ensure it does not become
pinched between the nozzle and the manifold.
Dura Line Thermocouple installation - continued
5-10
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
ASSEMBLY
Hot Runner User Manual
