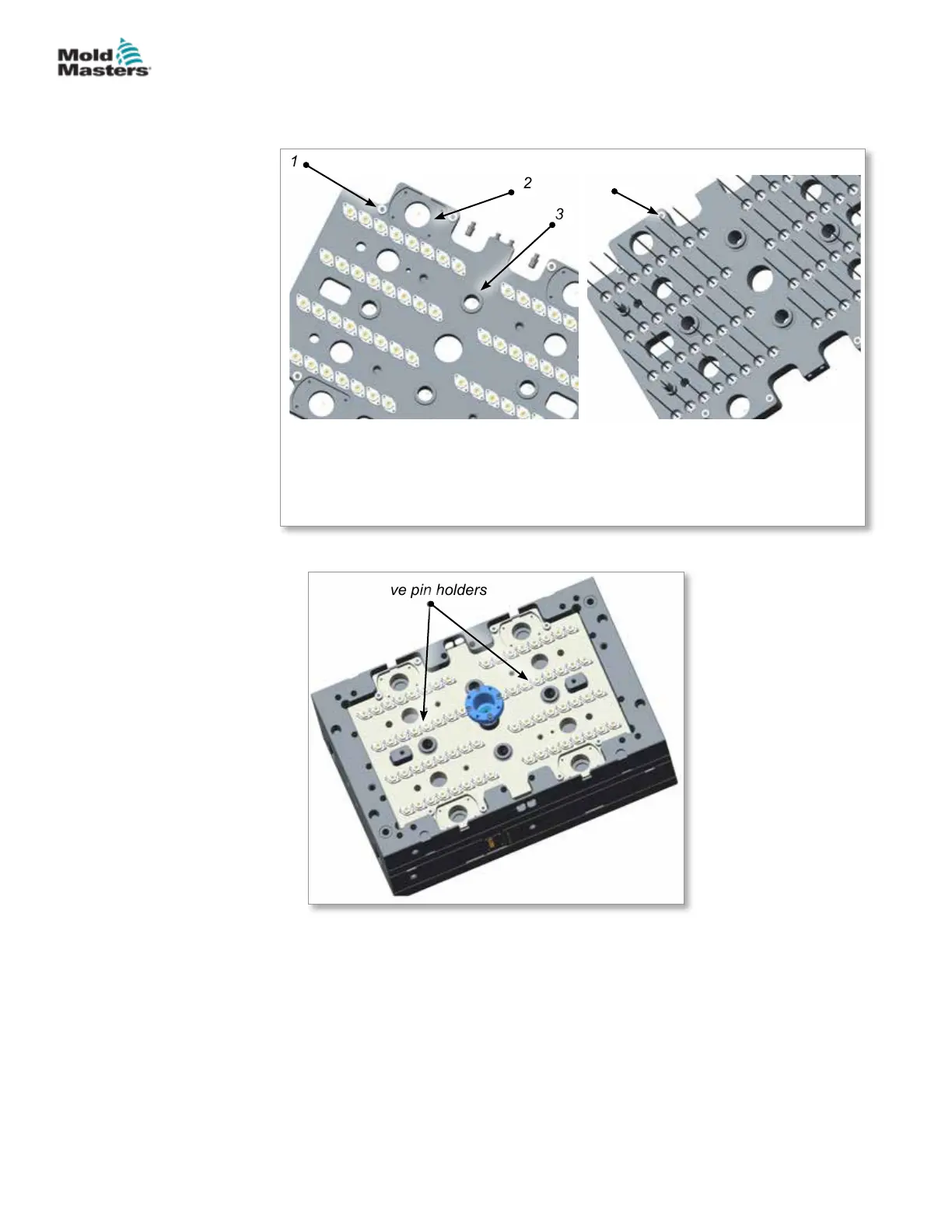

13.3.3 Synchro-Plate Assembly
1. Assemble the synchro-plate without ball-nut into the cut-out of the
interface plate.
1. Top stop buttons
2. Ball-nut ange seating area
3. Guide bushings with top / bottom retainers
4. Bottom stop buttons
1
2
3
4
2. Assemble the valve pin holders into the synchro-plate.
Valve pin holders
13-7E-DRIVE
Hot Runner User Manual
