15.1.1 Extraction of 1-piece Valve Disk
Method 1:
IMPORTANT
This method is for valve disks with an outer diameter of Ø35, Ø39 or Ø42
ONLY. There must also be enough distance between drops.
1. Heat the manifold to allow any plastic still in the system to become soft.
2. Attach the valve disk extraction tool to the valve disk.
3. Attach the EXTOOLAS10 tool to the valve disk extraction tool.
4. Extract the valve disk from the manifold.
IMPORTANT
Ensure that the pulling direction is perpendicular to the manifold surface.
1. EXTOOLAS10
2. Valve disk extraction tool
3. Valve disk (1-piece)
1
3
2

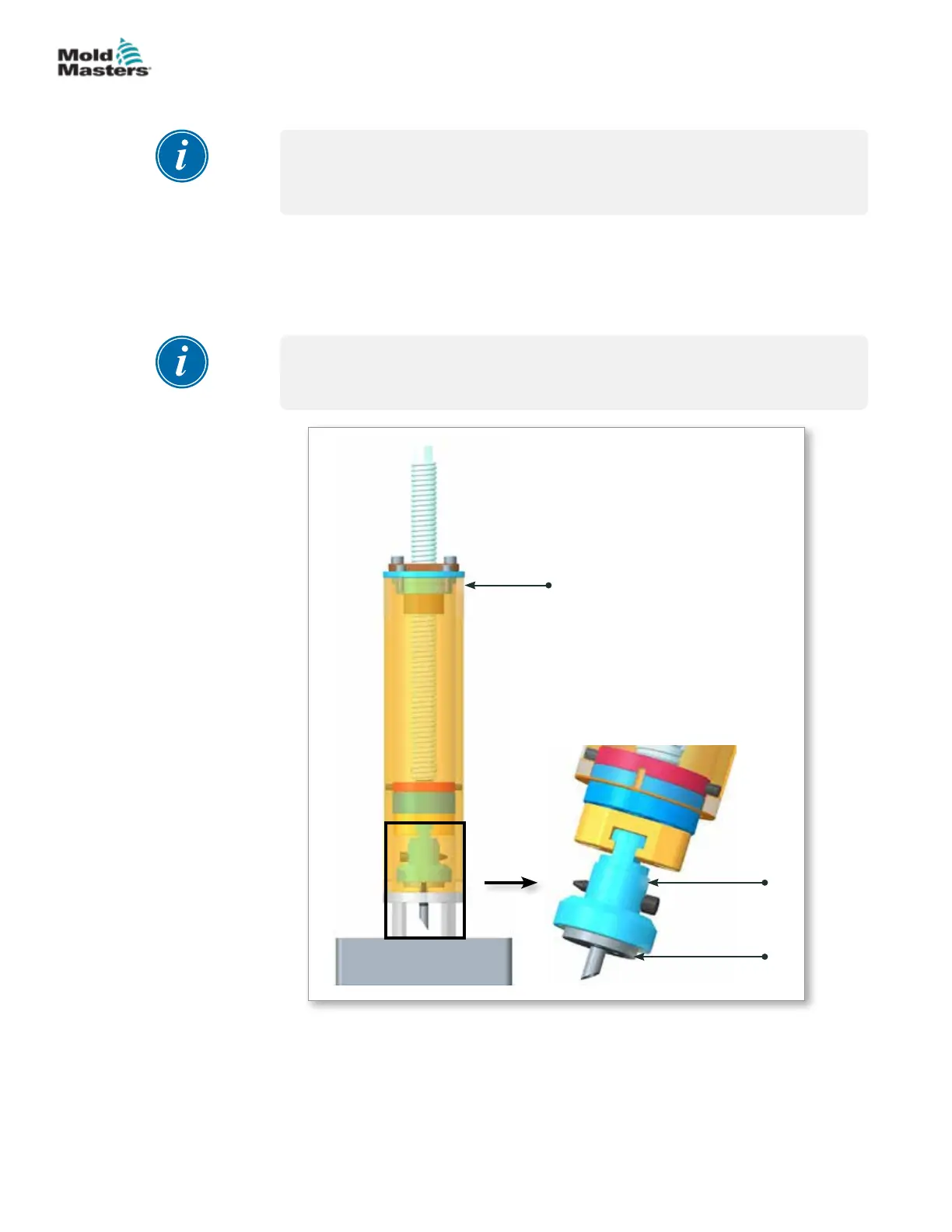

Figure 15-2 1-piece valve disk extraction - method 1
15-2
