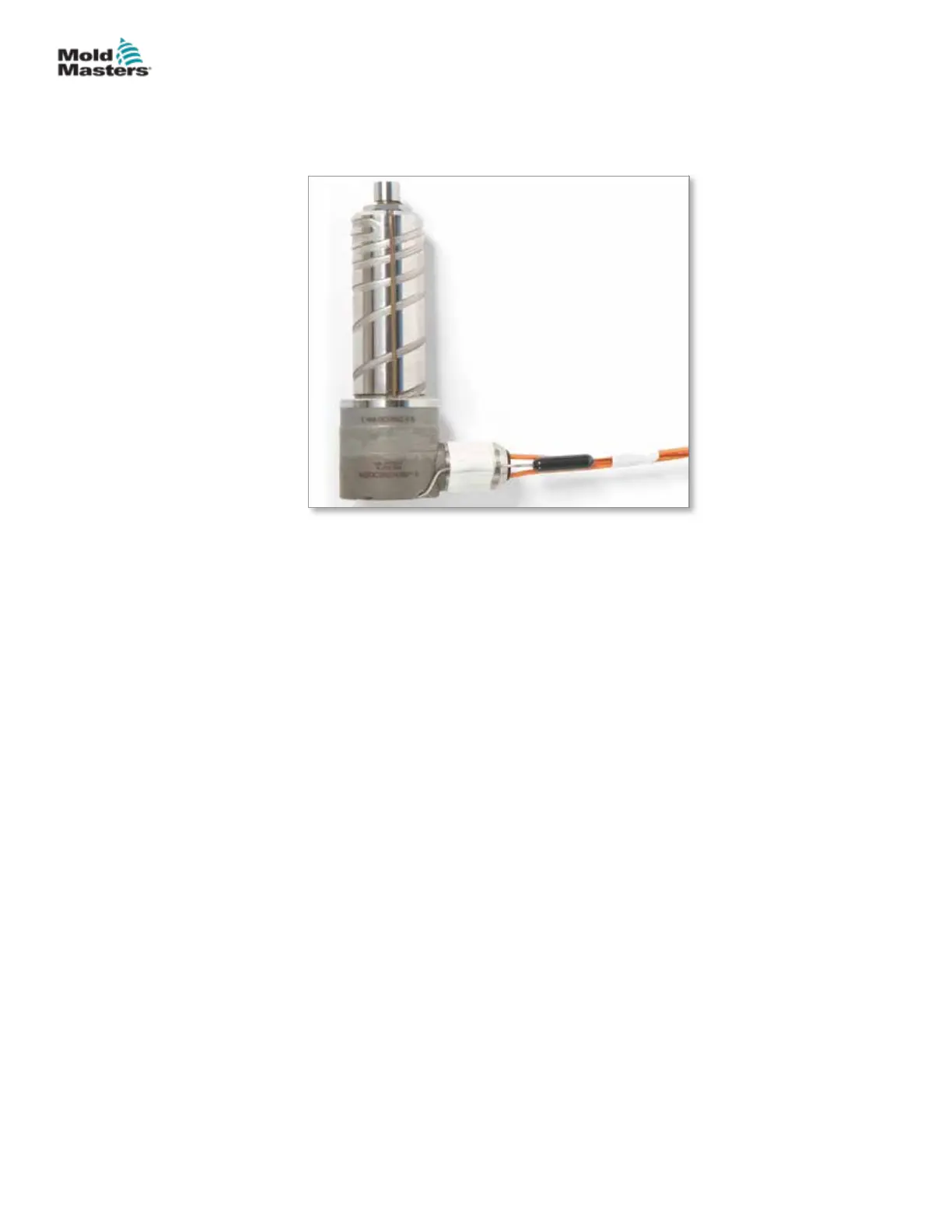

7. Use heat resistant tape to secure the nozzle wires and thermocouple

wires just above or below the insulator pod. The nozzle is ready for

assembly with the thermocouple fully installed.

Dura Line Thermocouple installation - continued

5-11ASSEMBLY
