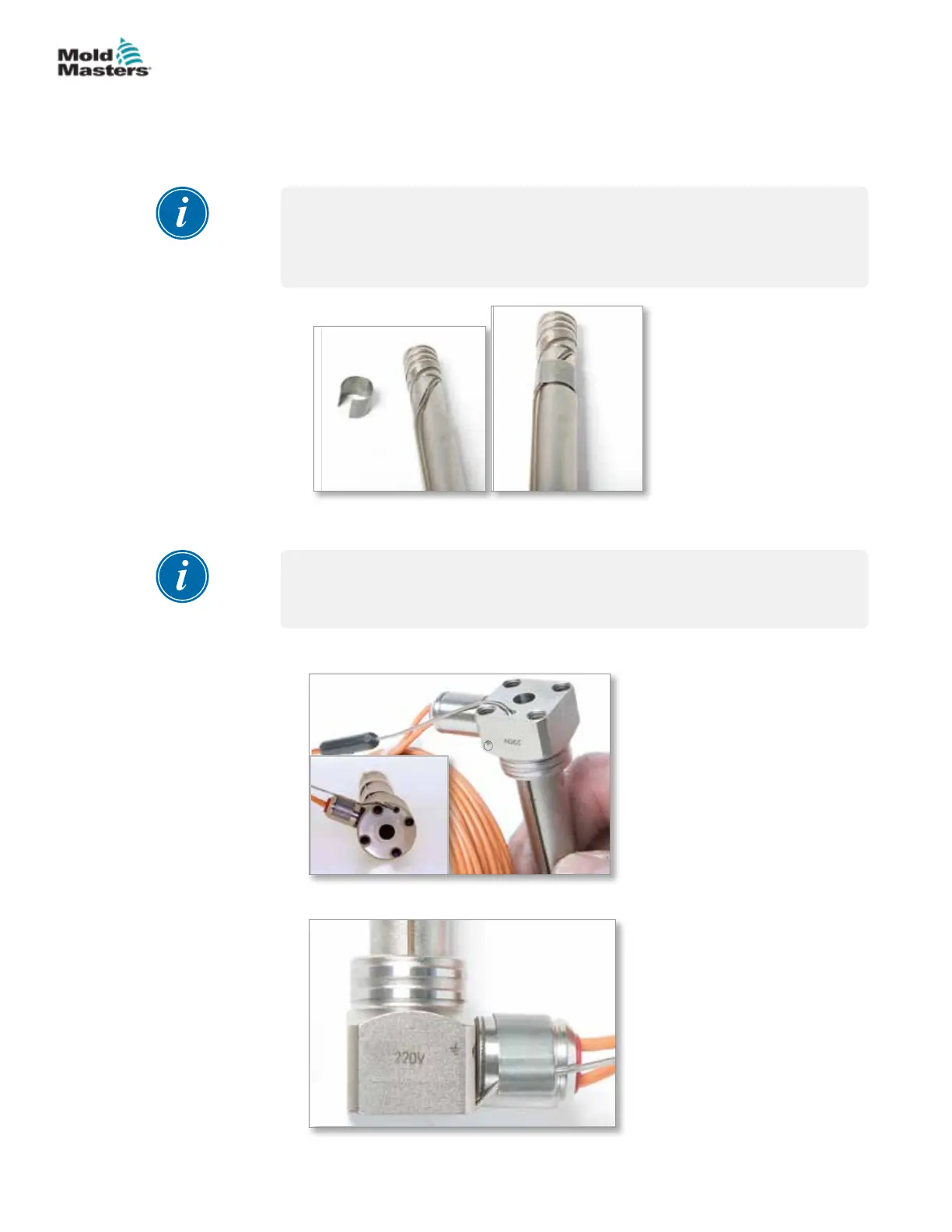

Thermocouple Installation - continued
3. Dress thermocouple carefully alongside nozzle body and install retaining
clip(s).
Check parts list for recommended number of clips for the nozzle type.
Check that the thermocouple ts into the recess of the clip.
IMPORTANT
It is important that one retainer clip is at the top of the nozzle to keep
the thermocouple inside the bore. This is especially important when
thermocouples are assembled from the front.
4. Install the terminal end retaining clip. Check that the thermocouple ts
into the recess of the clip.
IMPORTANT
Make sure that the terminal end of the thermocouple stays fully engaged in
the slot.
5. Bend the thermocouple at the nozzle ange area.
6. Install the clip over the terminal end.
5-7ASSEMBLY
Hot Runner User Manual
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
