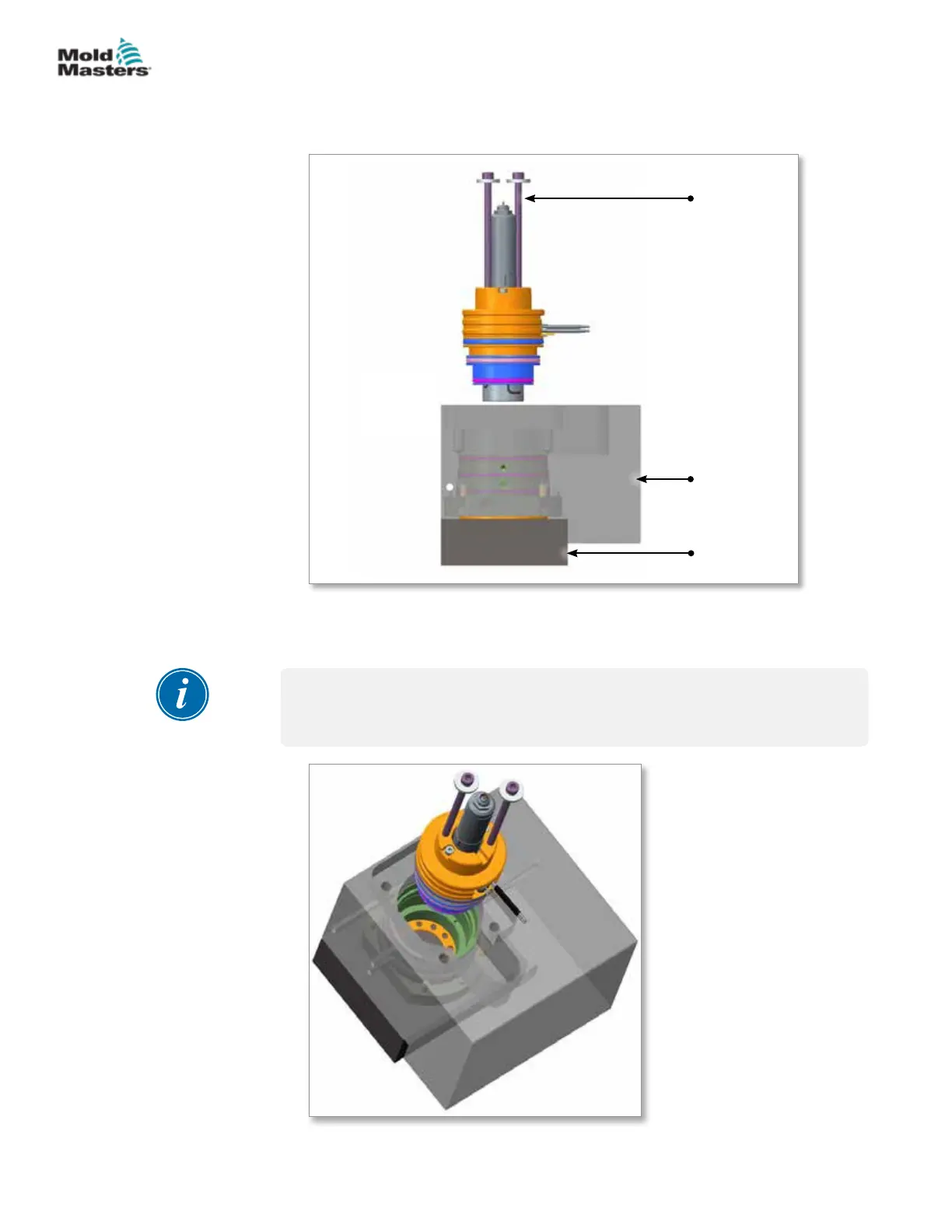

3. Place a manifold or support block beneath the manifold plate to hold the
Slimstack unit to be assembled. See Figure 11-22.
Support
block
Manifold
M6 screw
with washer
Figure 11-22 Support block, manifold plate and Slimstack unit
4. Turn the manifold plate and carefully install the Slimstack unit into the
manifold plate using screws with washers. See Figure 11-23.
IMPORTANT
Ensure that the nozzle and the heated body terminal end are correctly
oriented before sliding the unit inside the manifold plate.
Figure 11-23 Install Slimstack unit
Installation - continued
11-14
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
SLIMSTACK ACTUATOR
Hot Runner User Manual
