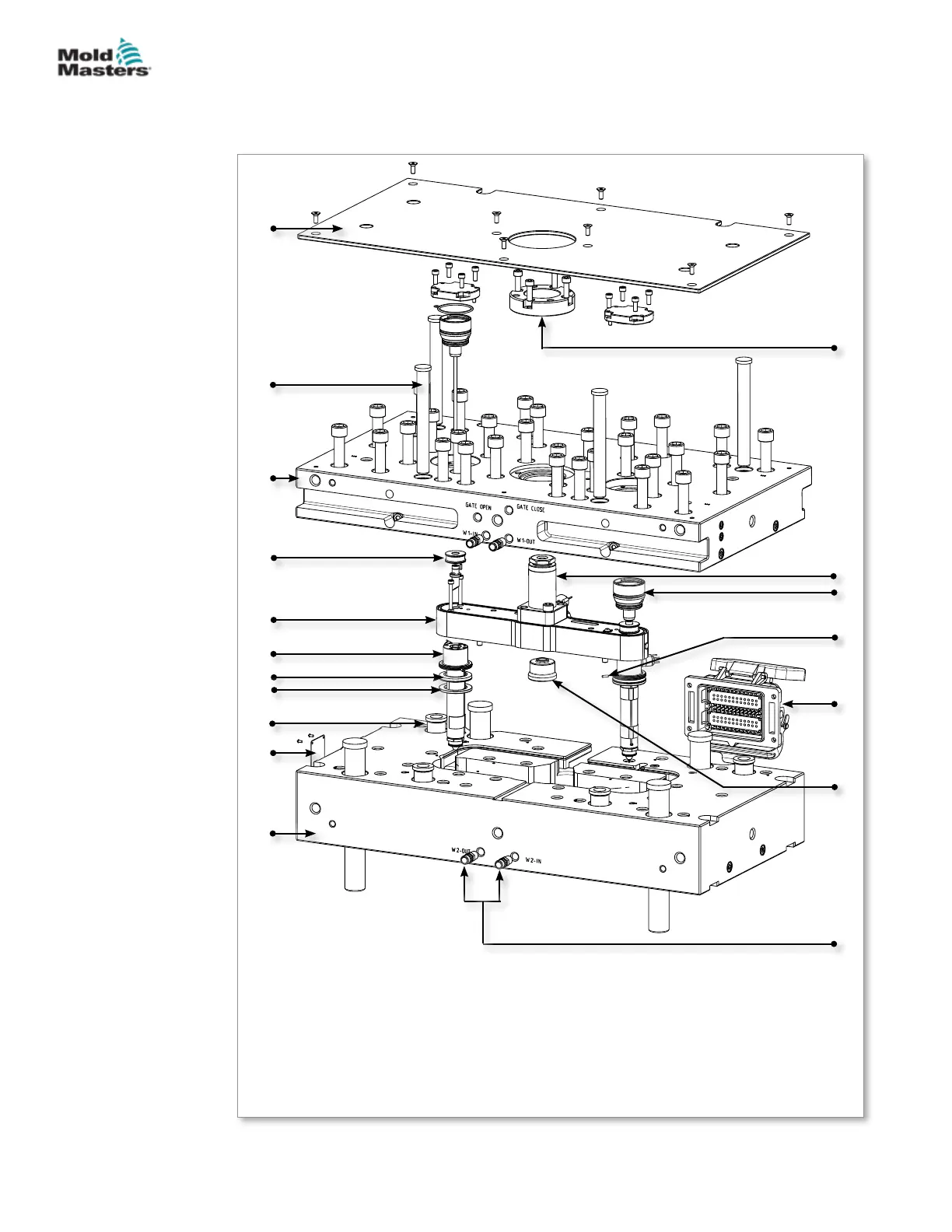

Figure 4-7 illustrates a pneumatic / hydraulic system with MasterSHIELD
components.
Figure 4-7 Pneumatic / hydraulic system with MasterSHIELD technology
1
2
3
5
7
6
4
18
17
16
15
12
8
9
11
14
13
10
1. Insulation board
2. Leader pin
3. Hydraulic plate
4. Valve disk
5. Manifold
6. Nozzle
7. Disc spring
8. Hardened washer
9. Leader bushings
10. Name plate
11. Manifold plate
12. Jiy plugs
13. Manifold locator
14. Electrical box
15. Anti-rotation dowel
16. Pneumatic / hydraulic actuator
17. Inlet extension
18. Locating ring
4-8
