3. Install the assembly with the valve pin downwards.
a) For the SE40-20 and SE40-20C models:
Attach to the actuator plate with four SHCSM6X25 screws. Torque to
18 Nm [13 ft-lbs].See Figure 12-5 and Figure 12-6.

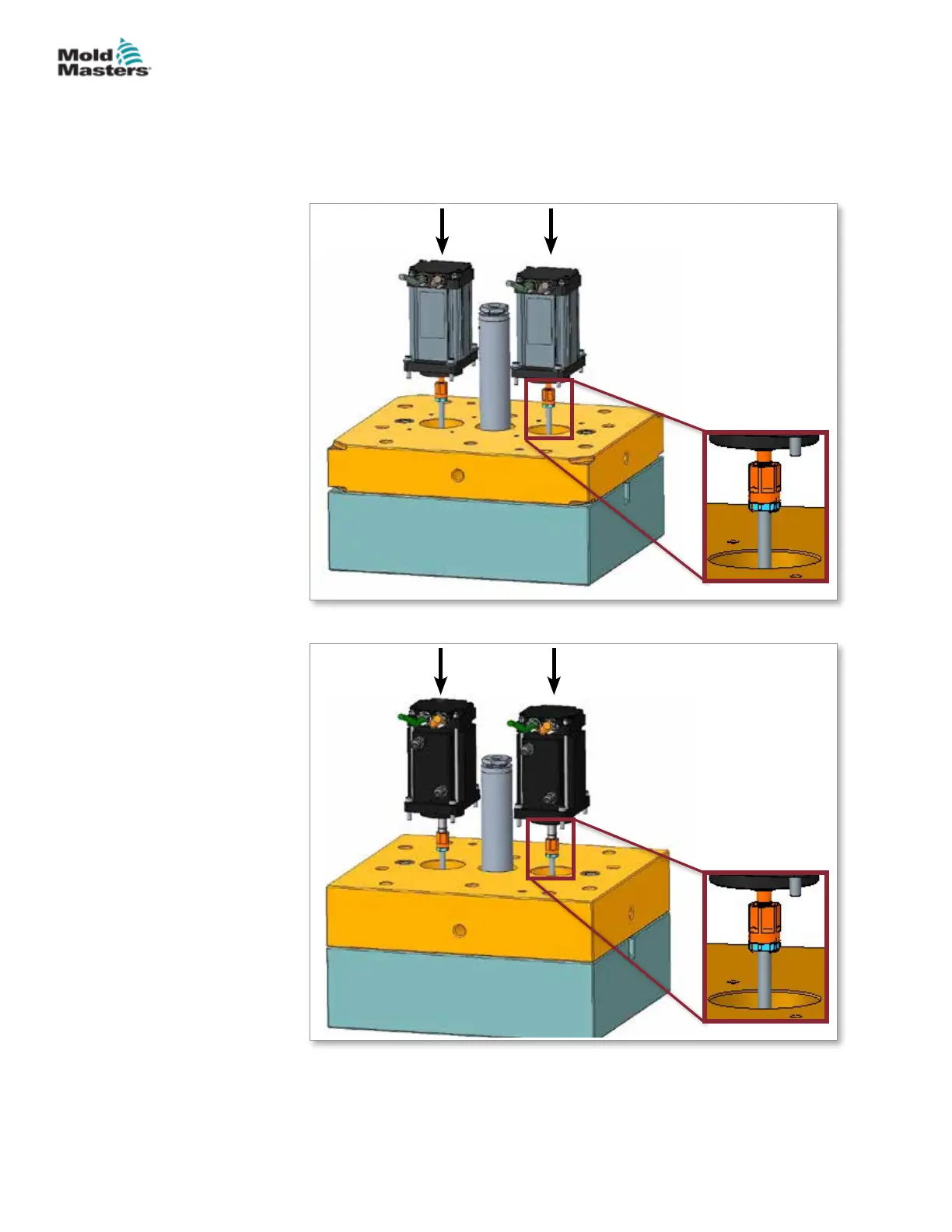

Figure 12-5 Install the SE40-20 actuator
Figure 12-6 Install the 40-20C actuator
Install the Motor and Valve Pin Assembly - continued
12-9SEVG PLUS ACTUATOR
Hot Runner User Manual
