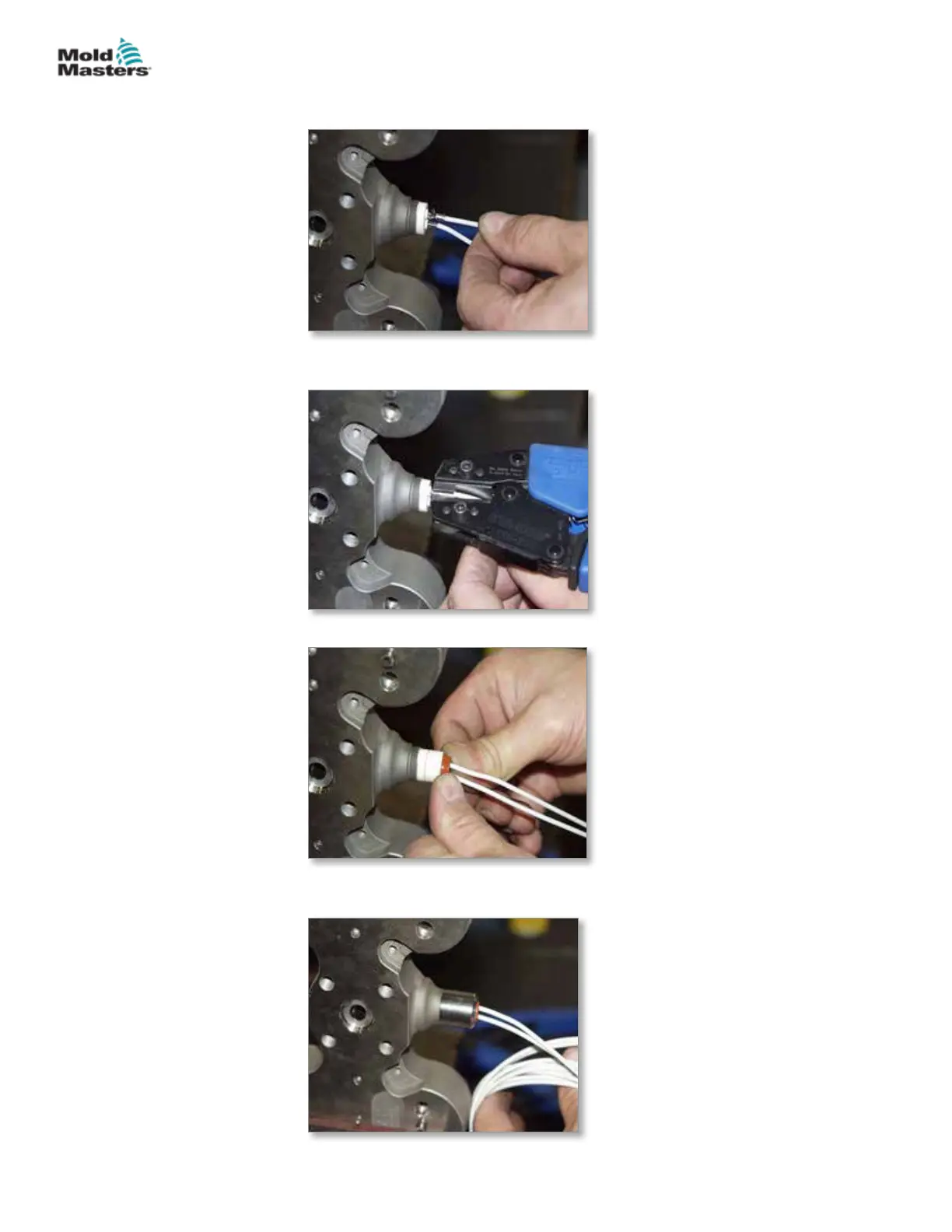

5. Spread the wire strands and insert the lead wire onto the terminal posts.
6. Grasp the crimp with the crimping tool, slide the crimp into position over
the terminal post and crimp the connection.
7. Slide the ceramic insulator and silicon seal into place.
8. Screw the element sleeve into the position. Make sure that the silicon
sleeve does not rotate with the sleeve which may damage the wire.
Terminal Assembly - continued
15-10
