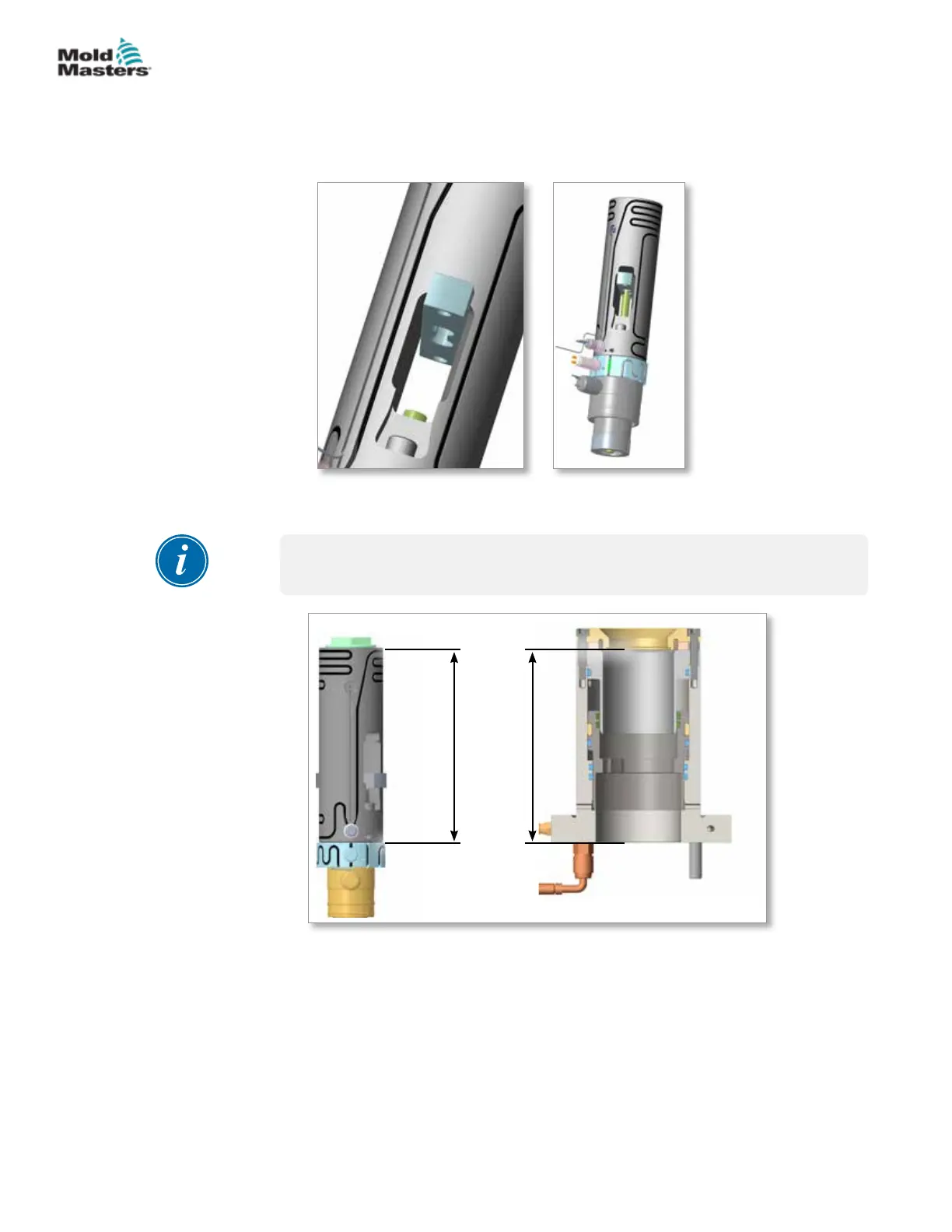

Insert the valve pin head into the keyhole slot in the valve pin holder.
Slide the holder so that the pin head is located in the narrow portion of the
slot.
26. In the cold condition, measure the dimension N of the heated body and
the dimension T of the cylinder body. Make sure that they are the same.
NOTE
The air gap is determined by the ange depth of the mold plate.
N T
27. Carefully place the nozzle assembly into the hydraulic unit. Make sure
that the nozzle terminal end is correctly oriented.
17-20
