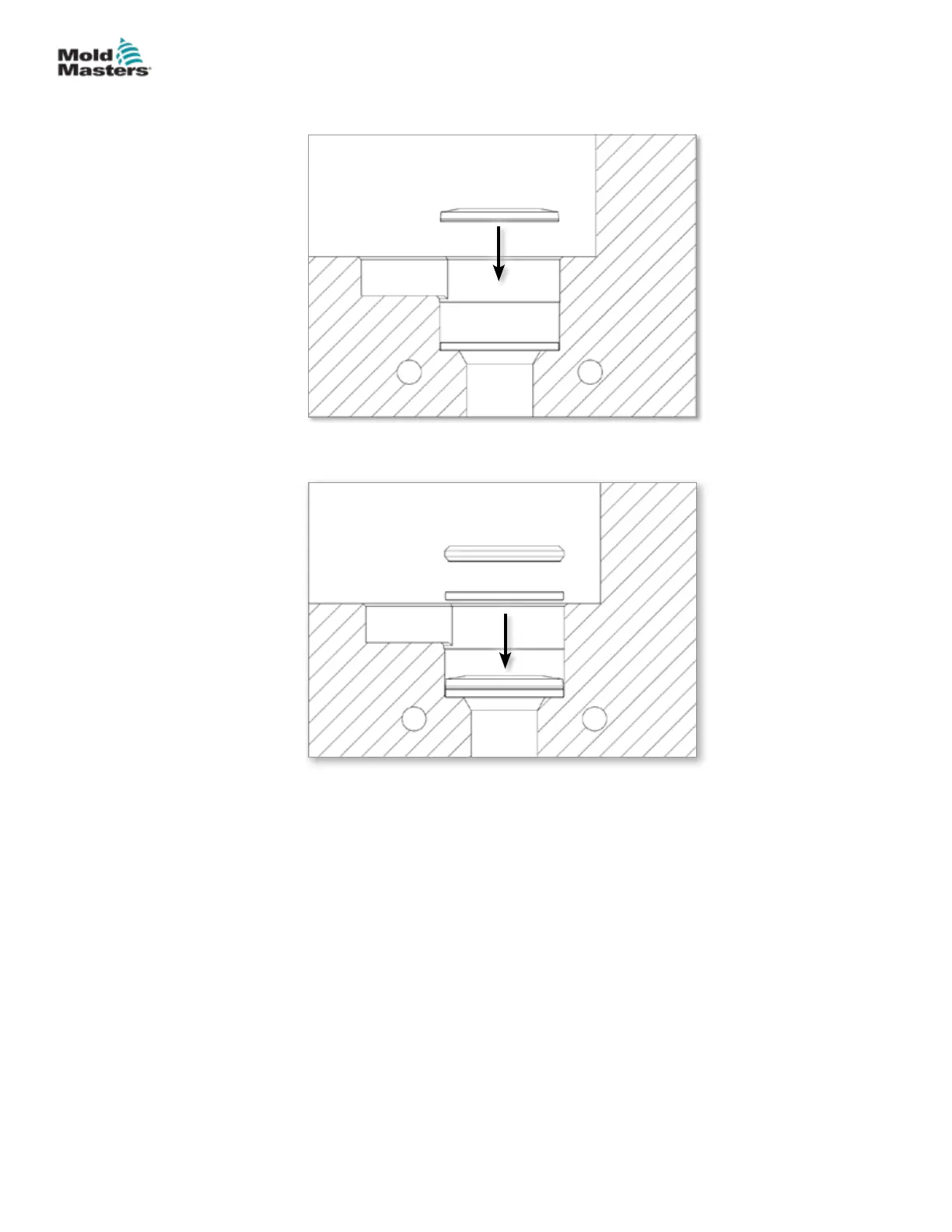

3. Apply high temperature grease to the spring.
4. Install the disc spring in the correct orientation.
5. Install the top hardened washer.
Install the nozzle retainer.
6. Install the nozzle. For anti-rotation, use the bolts between the manifold
and nozzle.
5-17ASSEMBLY
Hot Runner User Manual
