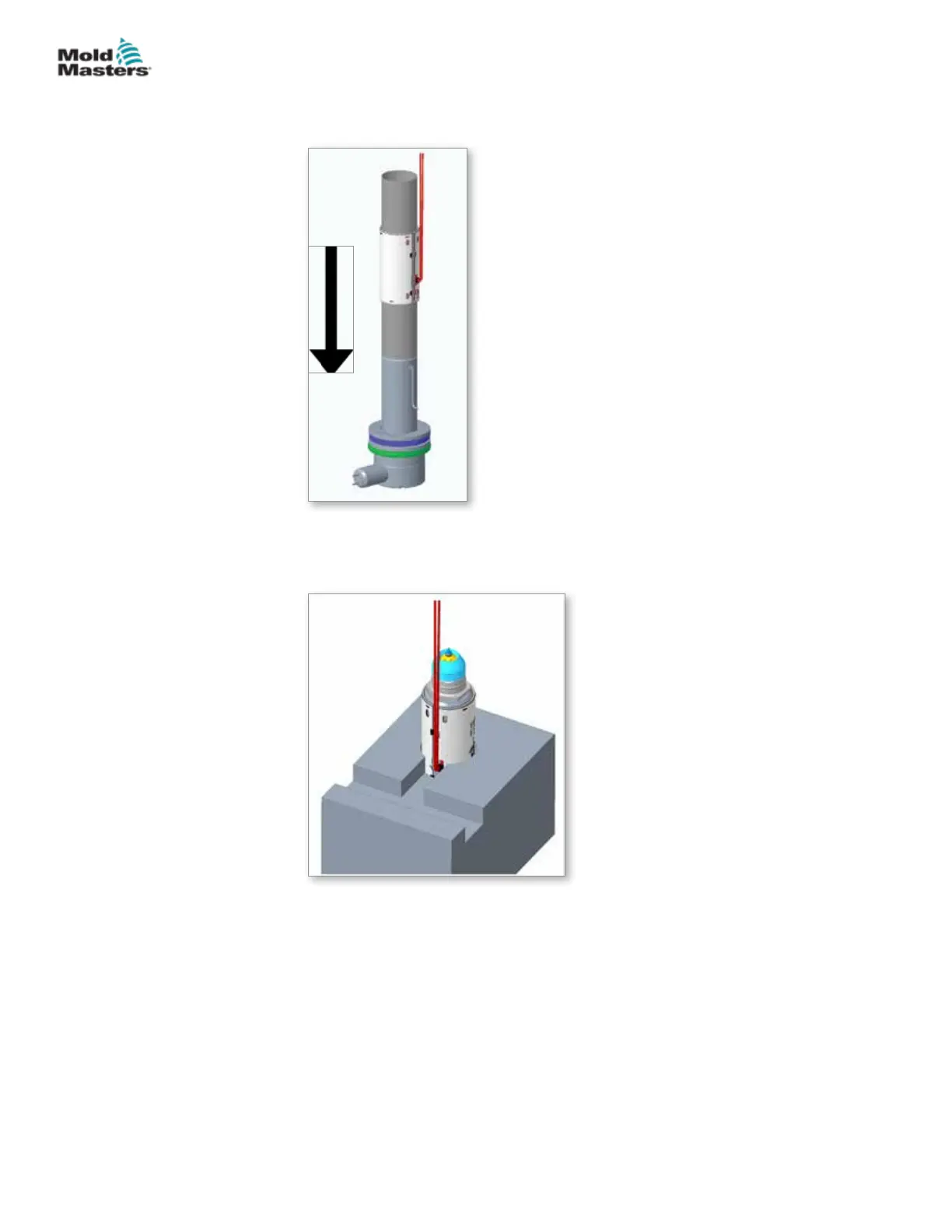

1. Align the assembly tube with the end of the nozzle, and slide the
emergency heater sleeve over the nozzle body. Make sure that the heater
element is pointing away from the nozzle.
Figure 5-13 Installed heater sleeve and tube assembly
2. Make sure that the nozzle is positioned within its cutout so that the heater
element exit is aligned with the cutout in the plate.
5-25ASSEMBLY
