・ "Camera Device Information"

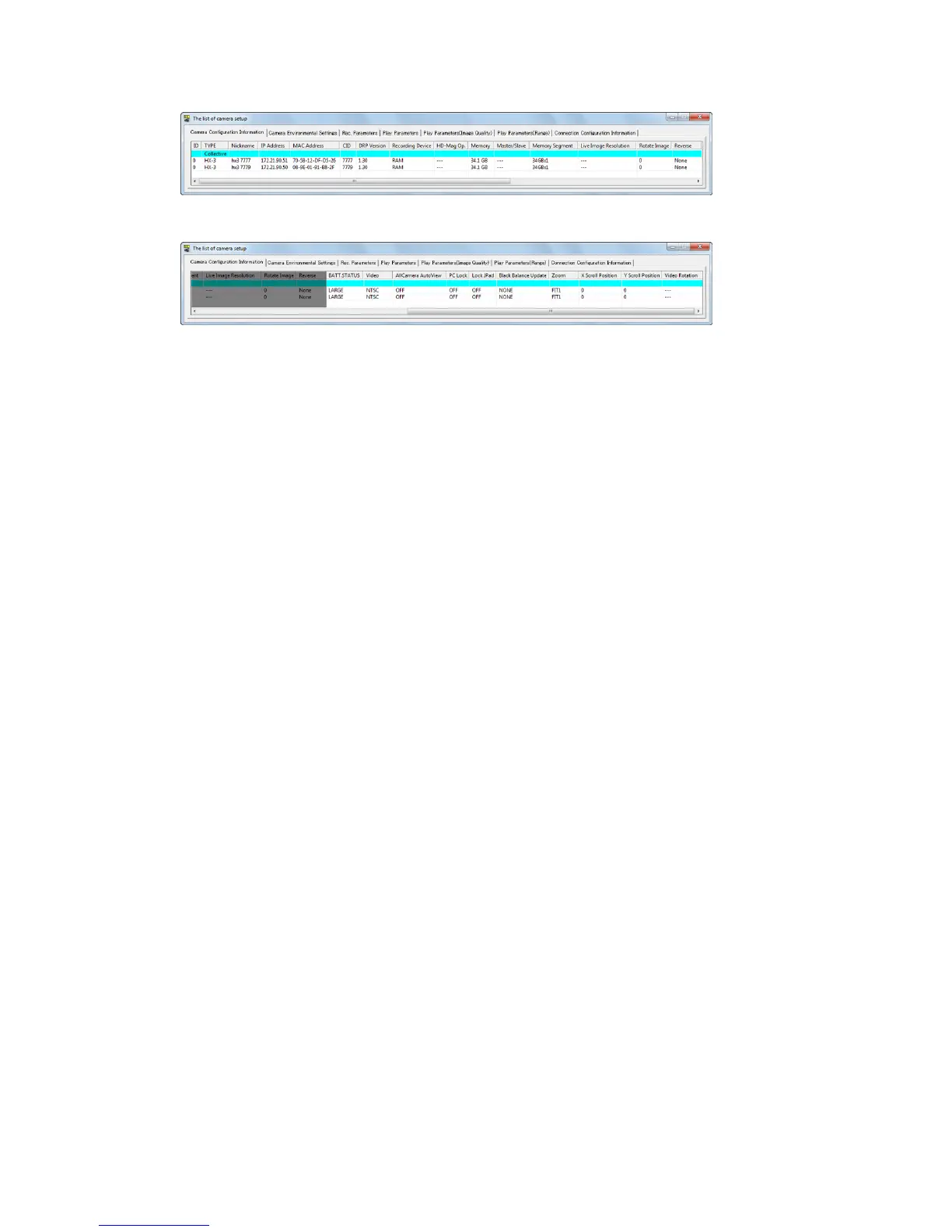

Camera Device Information (HX Camera Connection) 1
Camera Device Information (HX Camera Connection) 2
"Camera Device Information" Items
(ID, Segment Partition, Live Image Resolution, Rotate Image, Reverse Image, Update Black
Balance, Zoom, Scroll Position, Auto View, PC Lock and Lock Remote Control can be set. Other
items are for display only and the settings cannot be changed.)
ID Camera (DRP) ID
TYPE Camera (DRP) type
Nickname Camera (DRP) nickname (refer to page 4-2)
FC-AL node Camera (DRP) fiber channel node name (shown with FC-AL connection)
IP Address Camera (DRP) IP Address (shown with TCP/IP or Gbit connection)
MAC Address Camera (DRP) MAC Address (shown with TCP/IP or Gbitconnection)
CID Camera (DRP) identification number
DRP Version Camera (DRP) firmware version
Archive Select the destination to save the HX camera image (RAM/HD-Mag)
HD-Mag Shows the HD-Mag status for the HX camera option (HX-1 option)
Memory Maximum recording memory
If multiple camera heads, the memory used for each camera head.
Master/Slave Camera synchronization master, synchronization slave settings
Memory Segment Memory for one segment, and number of segments
Live Image Resolution Live image resolution(Only fx camera)
Rotate Image Image rotation angle
Reverse Image Image reverse direction
BATT.STATUS Battery status
(NONE: no battery, SMALL: limited charge, MIDDLE: medium charge, LARGE: high
charge)
Video Output Video output method (NTSC/PAL)
Auto View Auto View setting
Video Out Video output method (NTSC/PAL)
All Camera Auto View Auto View setting(Only indivisal)
PC Lock Operation locks status from PC(Only indivisal)
Lock Remote Control Operation lock status from remote control(Only indivisal)
Update Black Balance Black Balance calculation
Zoom Video display zoom setting
X Scroll Position Video display X scroll setting
Y Scroll Position Video display Y scroll setting
Rotate Video Rotation angle of video display
