5 - 57
5 Basic Settings
High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)
5-9 Multi-function Input Settings
5

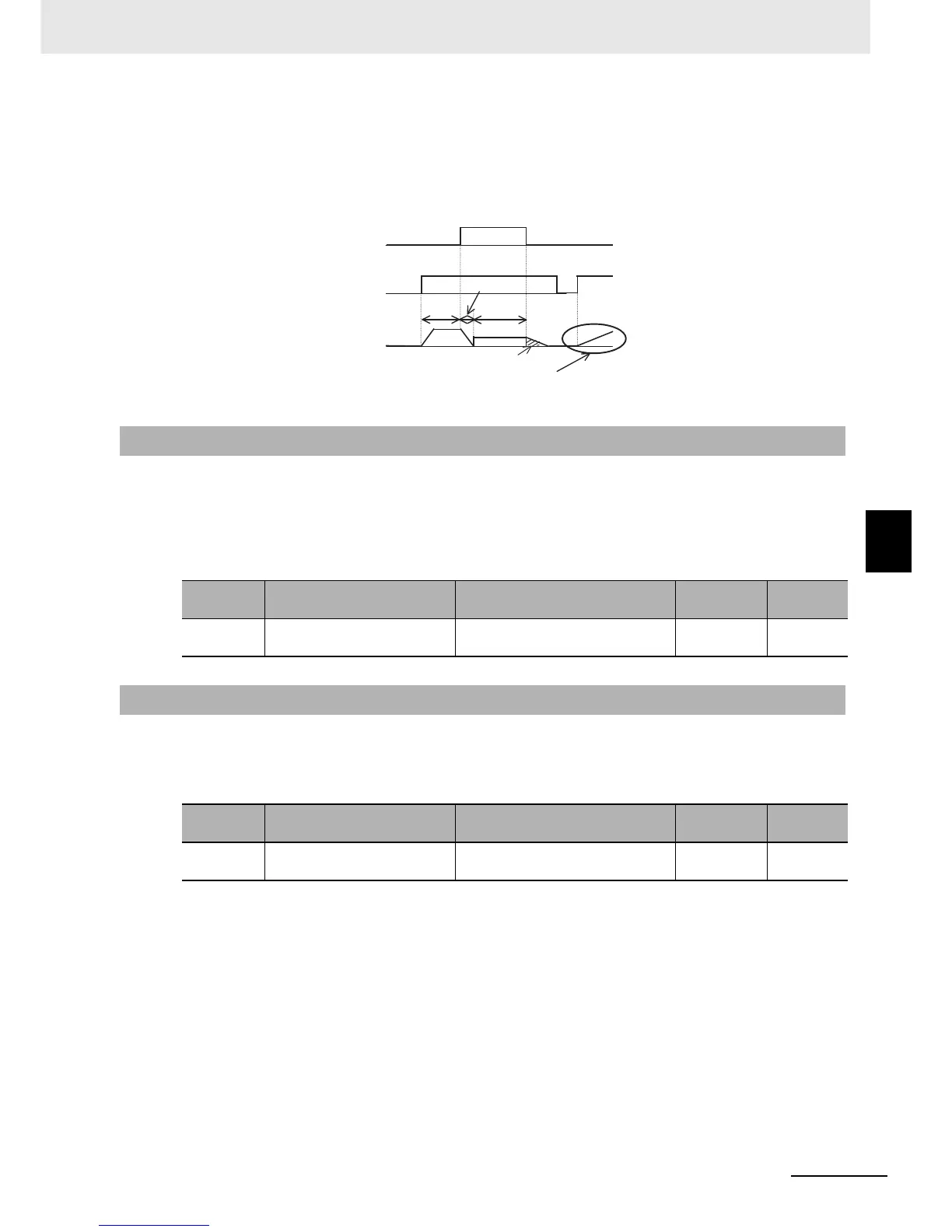

5-9-7 2-step Acceleration/Deceleration (2CH)
Enabled during Operation
When the Jogging Stop Selection (A039) is set to 03, 04, or 05, jogging operation will occur even if
the FW signal turns ON first.
However, if the JG signal turns OFF first, the motor will make a free-run stop.
• Use this function to change the acceleration/deceleration time on the way during
acceleration/deceleration.
• Allocate one of the Multi-function Input S1 to S8 Selection (C001 to C008) to 09 (2CH).
• For the 2-step acceleration/deceleration function, refer to 5-6 Acceleration/Deceleration Time
Settings on page 5-35.
• This function resets an inverter trip error.
• Allocate one of the Multi-function Input S1 to S8 Selection (C001 to C008) to 18 (RS).
• For the reset function, refer to 5-8 Reset Method Settings on page 5-47.
5-9-7 2-step Acceleration/Deceleration (2CH)
Parameter
No.
Function name Data Default data Unit
C001 to
C008
Multi-function Input S1 to S8
Selection
09: 2CH (2-step
acceleration/deceleration)
––
5-9-8 Reset (RS)
Parameter
No.
Function name Data Default data Unit
C001 to
C008
Multi-function Input S1 to S8
Selection
18: RS (Reset) – –
