12 Options
12 - 44
High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)

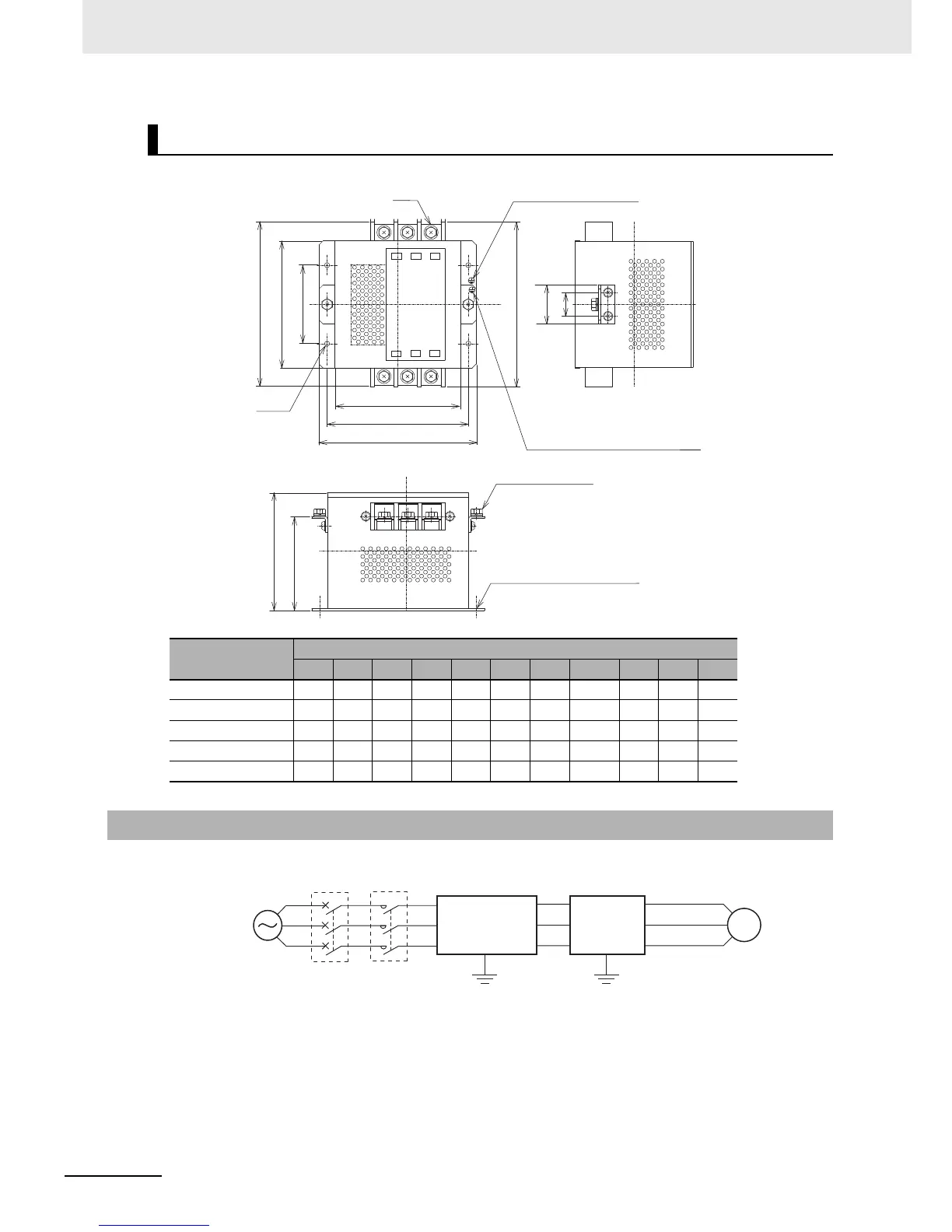

3G3AX-NFO03/NFO04/NFO05/NFO06/NFO07
Model
Dimensions [mm]
A B C E F H J M N O P
3G3AX-NFO03 160 145 130 80 112 120 – 6.5 dia. – M4 154
3G3AX-NFO04 200 180 160 100 162 150 120 6.5 dia. M5 M5 210
3G3AX-NFO05 220 200 180 100 182 170 140 6.5 dia. M6 M6 230
3G3AX-NFO06 220 200 180 100 182 170 140 6.5 dia. M8 M8 237
3G3AX-NFO07 240 220 200 150 202 170 140 6.5 dia. M8 M8 257
12-8-3 Connection Example
H
C
B
A
Ground marking
(Model: 3G3AX-NF003)
Ground marking
(Model: 3G3AX-NF004 to NF007)
E
F
P
J
H
30
50
Ground terminal N
Ground terminal
(Model: 3G3AX-NF003 only)
4-φM
6-O
Nameplate
1
2 3
4
IN
OUT
5
6
3G3RX-V1
Series
M
3G3AX-NFO
1
2
3
4
5
6
Inverter
Noise filter
3-phase 200 VAC
3-phase 400 VAC
Power
supply
MC
MCCB
