Omron RX Series - Removing Front Cover

2 Design
2 - 10
High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)

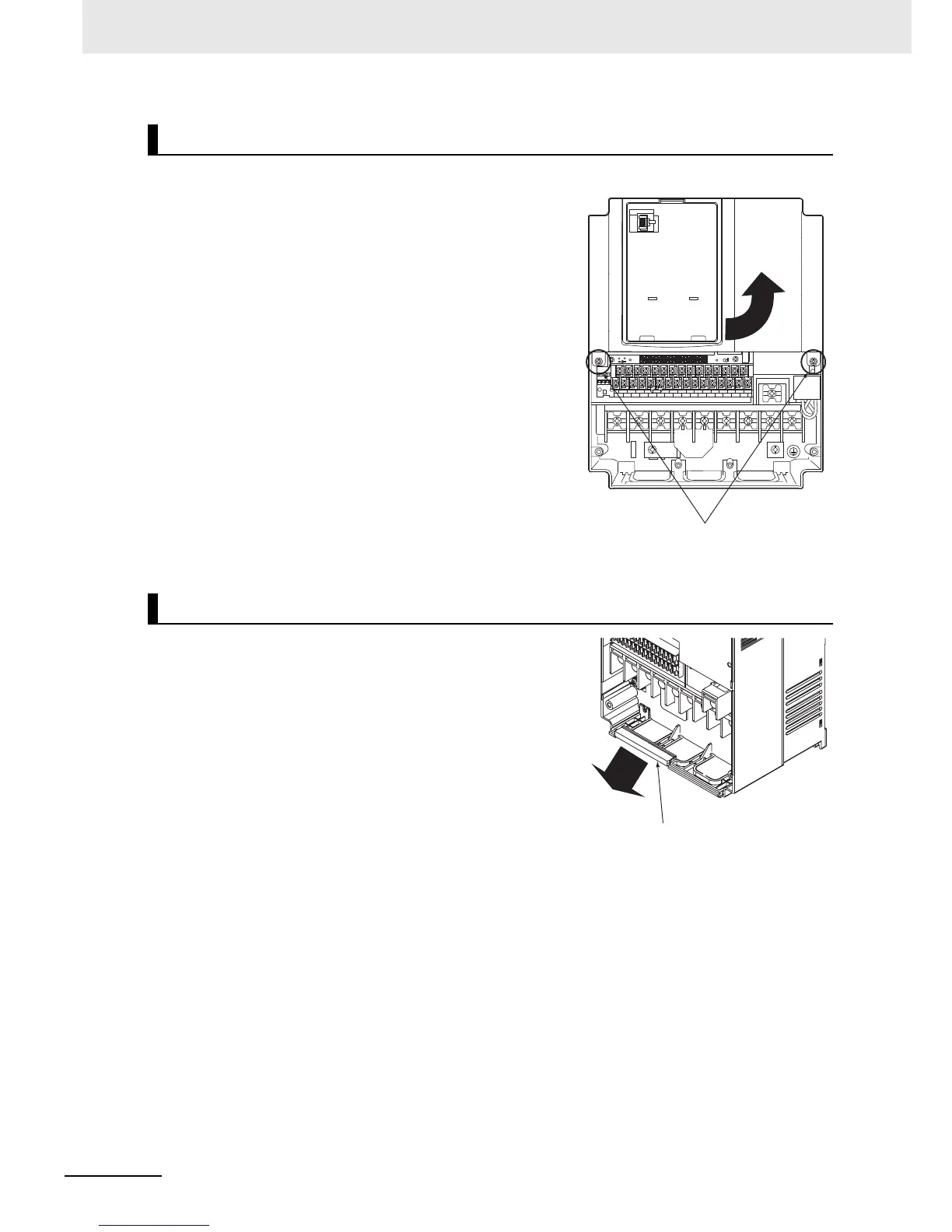

1 After removing the terminal block cover, Digital
Operator, and spacer cover, loosen the front cover
fixation screws.
There are two front cover fixation screws, one for
each side of the cover.
2 Remove the front cover in the direction of (a)
while holding it from the bottom.
After removing the terminal block cover, pull out the backing
plate in the direction of (a).
For how to cut the backing plate, refer to 2-2-3 Preparing
Backing Plate on page 2-13.
Removing Front Cover
Removing Backing Plate
Front cover fixation screws
(a)
Backing plate
(a)
