The Inverter/Servo support tool CX-Drive enables you to edit inverter parameters and monitor the
inverter status.
This section provides a functional outline of CX-Drive.

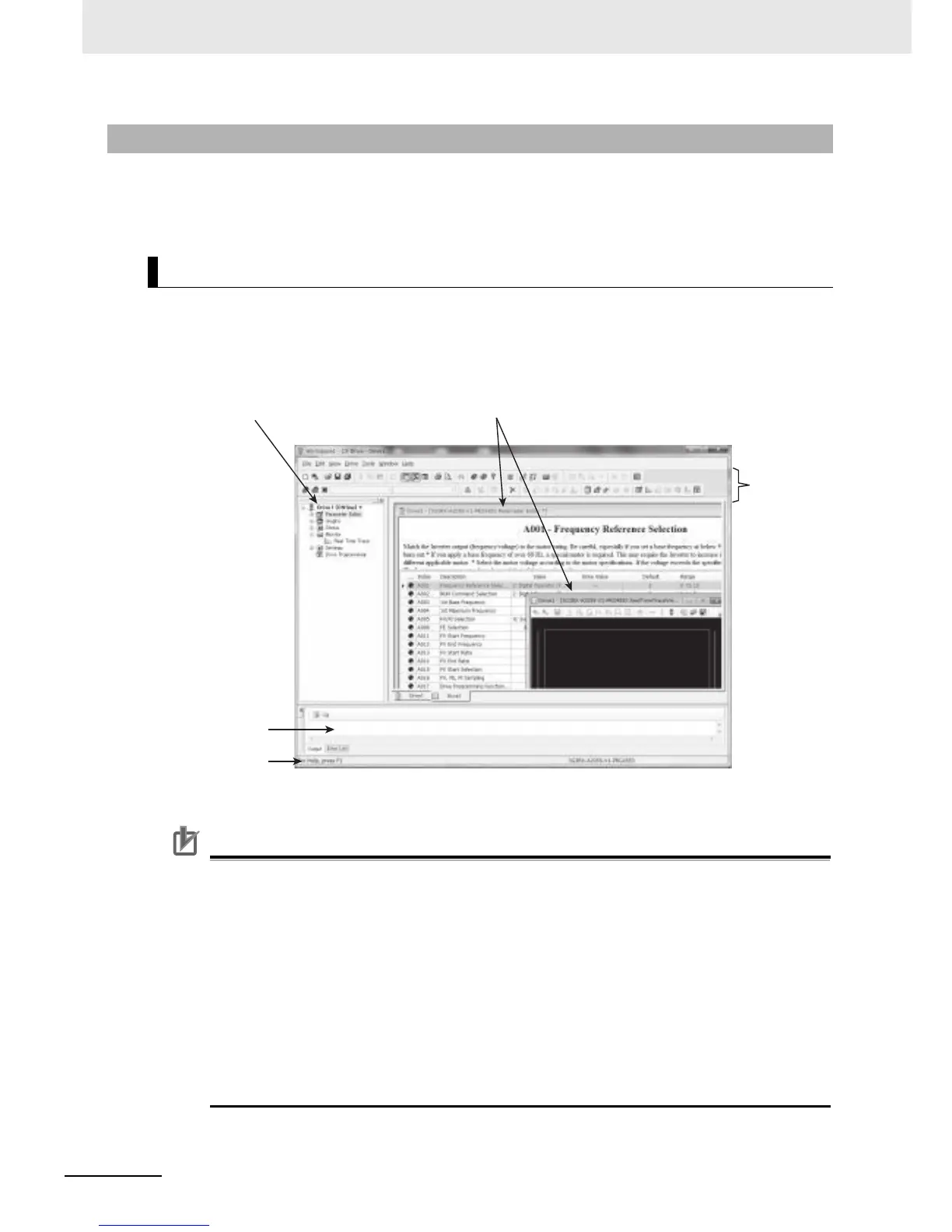

The screen structure of the CX-Drive is as shown below.
The workspace shows a list of registered drive projects. Double-clicking a project displays the functions
contained in it.
Then, double-clicking each function opens a window corresponding to that function.
CX-Drive, by default, does not allow connection to the inverter unless the software versions
match.
• Software number of the inverter set in the CX-Drive project
• Software number of the inverter actually connected
If you cannot connect to the inverter due to a software number mismatch, select [Tools] -
[Options] in the menu bar and, in the [Online] tab, deselect the [Check Drive Software
Compatibility] check box. This allows CX-Drive to connect to the inverter operate normally,
although a warning display appears.
To match the software numbers, right-click the project, select [Properties], and click the [Settings]
button in the [Drive Type] section. In the Drive Type Settings window, set the Software Number
that matches that of the inverter. If you cannot find the applicable software number in the
CX-Drive’s Software Number list, please upgrade the CX-Drive version.
3-3-2 Outline of CX-Drive
Screen Structure of CX-Drive
