Omron RX Series - External Dimensions

1 Overview
1 - 14
High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)
 3G3RX-A2004-V1/A2007-V1/A2015-V1/A2022-V1/A2037-V1/A4004-V1/
A4007-V1/A4015-V1/A4022-V1/A4037-V1

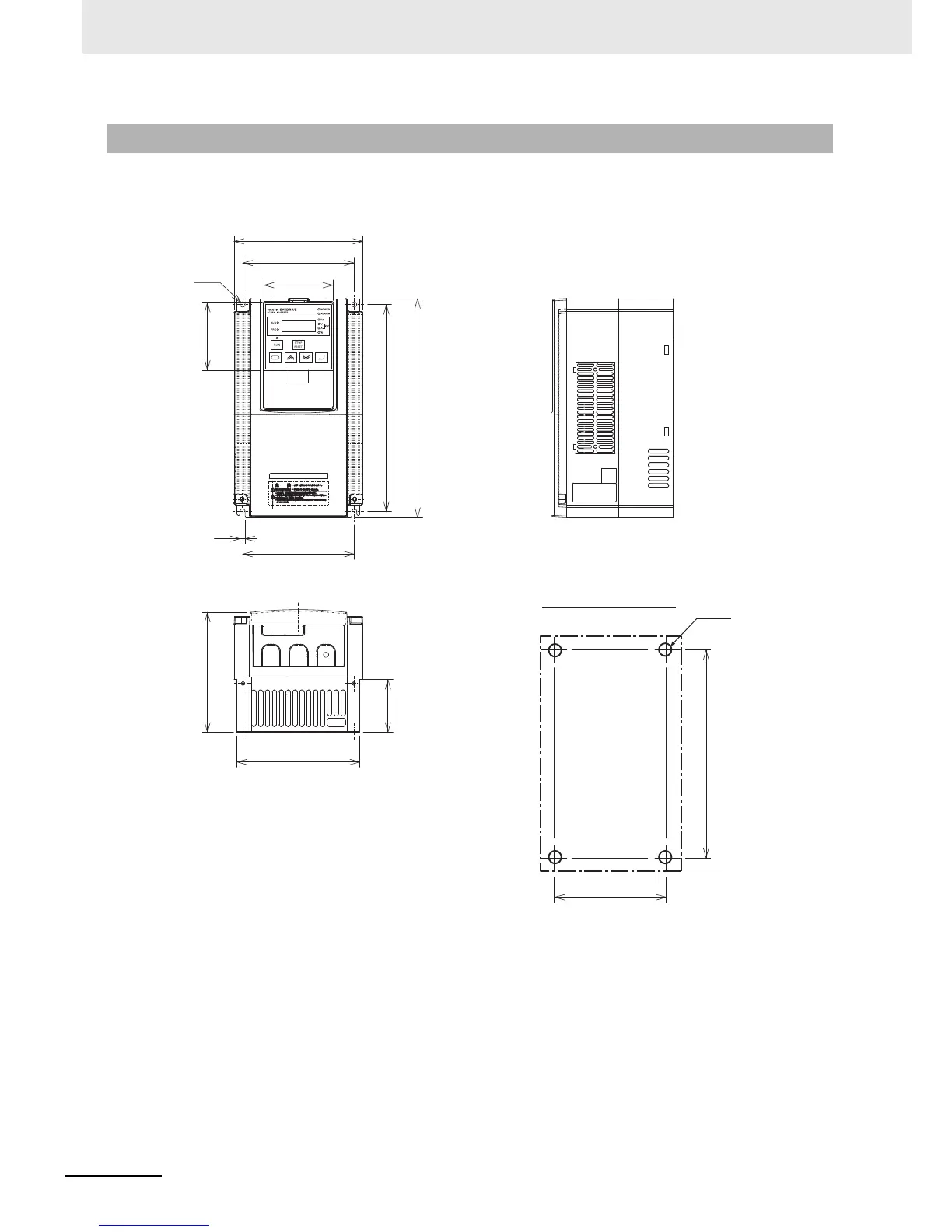

1-3-2 External Dimensions
150
2-φ6
130
130
143
80
6
79140
62
241 255
130
241
Mounting dimensions
4-M5
