1 Overview

High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)

1-3 Specifications

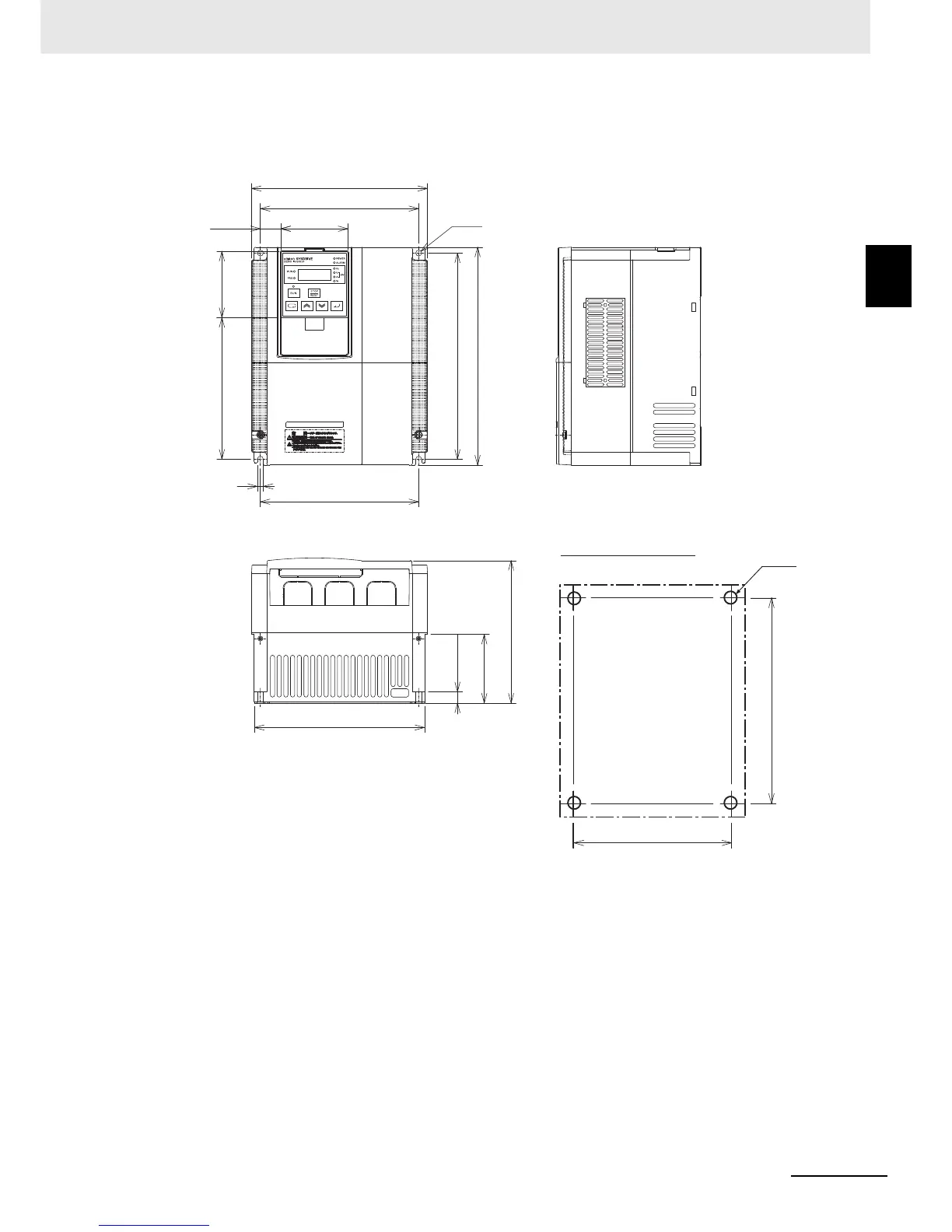

1-3-2 External Dimensions

 3G3RX-A2055-V1/A2075-V1/A2110-V1/A4055-V1/A4075-V1/A4110-V1

203

13.6

2-φ7

169

189

24.5

189

246

260

210

170

189

246

Mounting dimensions

4-M6
