• When the jogging function is enabled, jogging operation starts when the RUN command is input.
• To enable the jogging function, set the Multi-function Input S1 to S8 Selection (C001 to C008) to 06
(JG: Jogging).
• Set the frequency reference for jogging operation in the Jogging Frequency (A038).
Because, in jogging operation, the frequency reference is output instantaneously without acceleration
time, setting a high jogging frequency value may cause an overload or trip error. Be sure to set a
frequency value that does not cause a trip error.
• Use the Jogging Stop Selection (A039) to set the jogging stop method and whether to enable or
disable the jogging function during operation.
Disabled during Operation
To perform jogging operation, turn ON the JG terminal and then turn ON the FW or RV terminal.
When the Jogging Stop Selection (A039) is set to 00, 01, or 02, jogging operation will not occur if the
FW signal turns ON first.

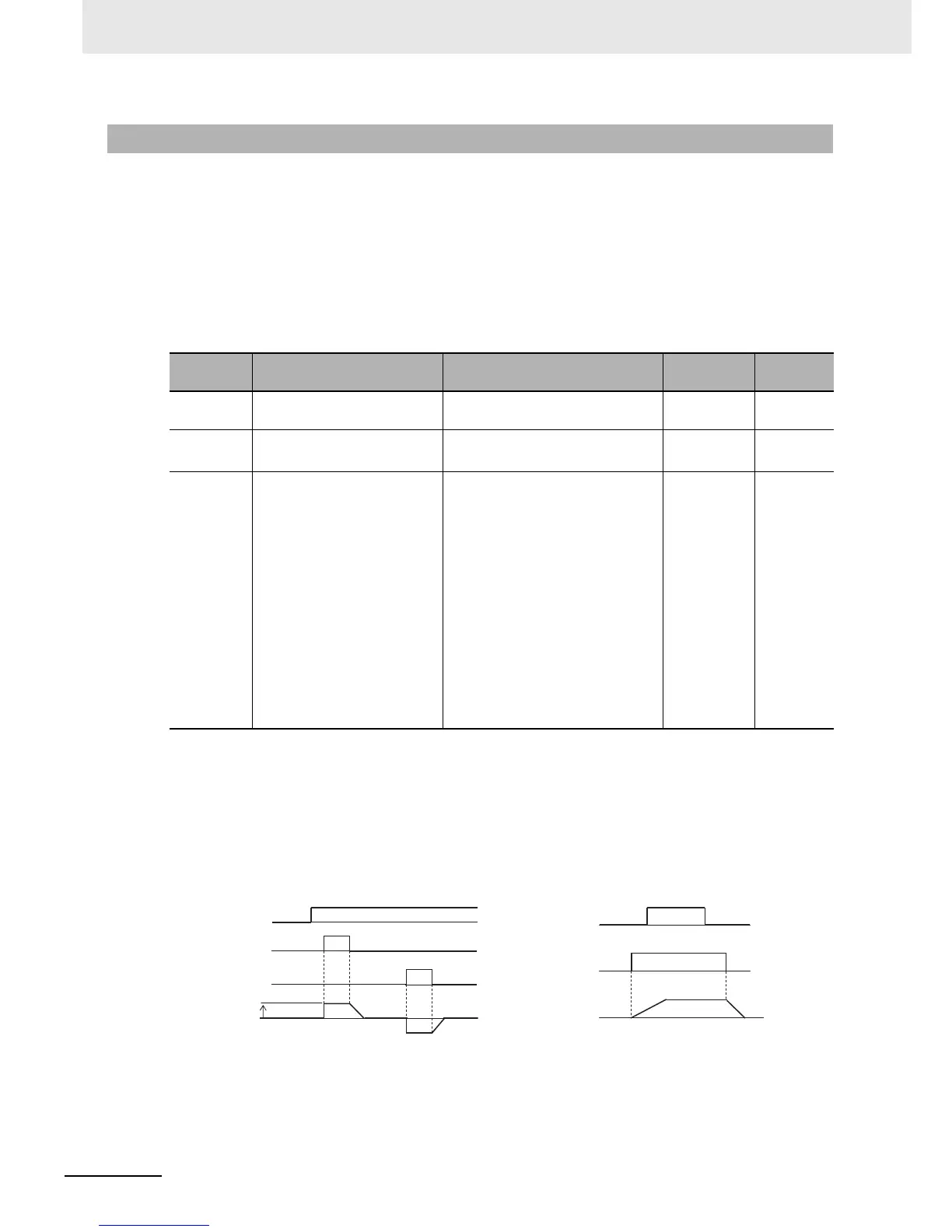

5-9-6 Jogging (JG)
Parameter
No.
Function name Data Default data Unit
C001 to
C008
Multi-function Input S1 to S8
Selection
06: JG (Jogging) – –
A038 Jogging Frequency
0.00
Starting Frequency to 9.99
6.00 Hz
A039 Jogging Stop Selection
00: Free running during jogging
stop/Disabled during operation
01: Deceleration stop during
jogging stop/Disabled during
operation
02: DC injection braking on jogging
stop/Disabled in operation *
03: Free running during jogging
stop/Enabled during operation
04: Deceleration stop during
jogging stop/Enabled during
operation
05: DC injection braking on jogging
stop/Enabled in operation
*1
*1.If the Jogging Stop Selection(A039) is set to 02 or 05, set the DC Injection Braking Selection (A051).
00 –
Jogging Operation Enabled Jogging Operation Disabled
