2 Design
2 - 4
High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)
2-1 Installation

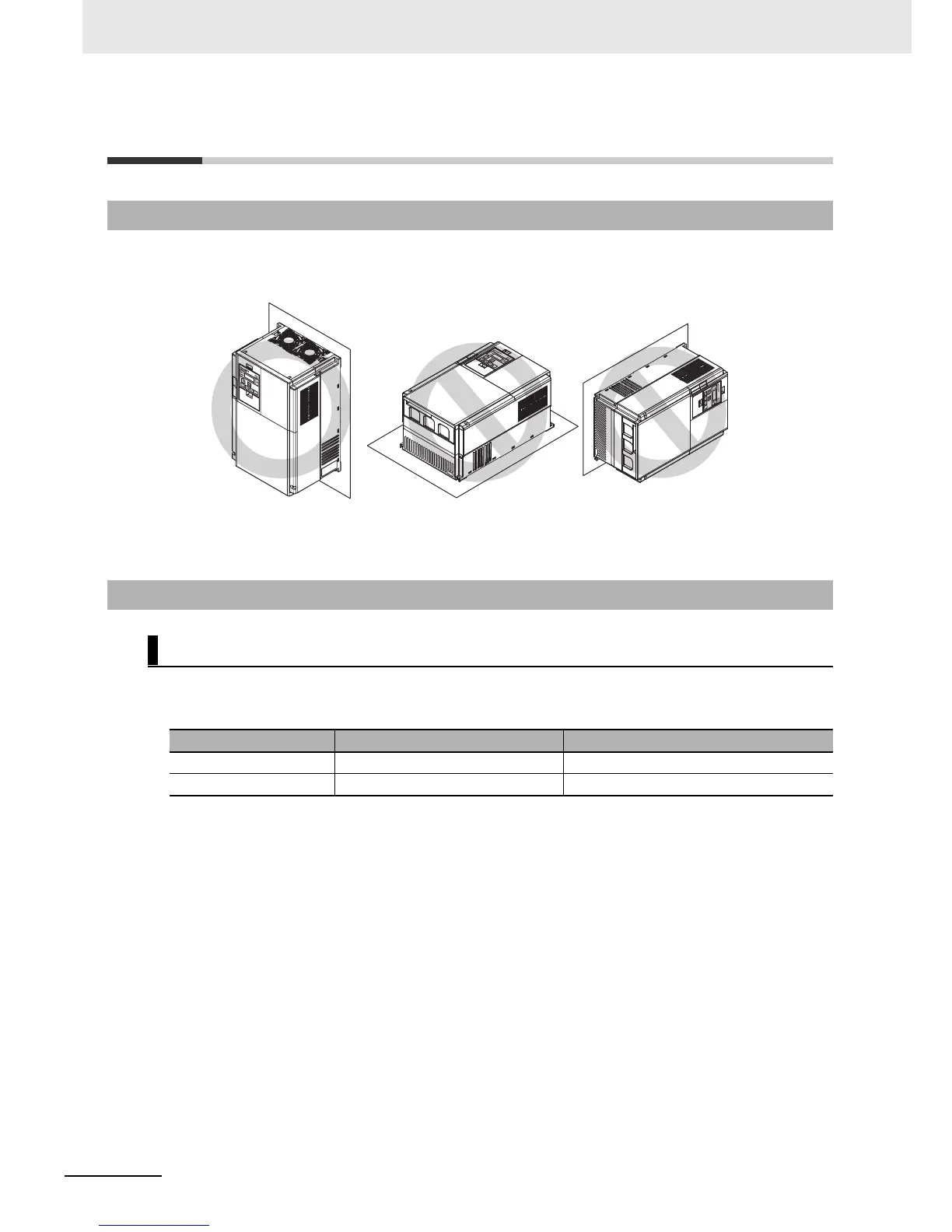

Mount the 3G3RX-V1 Series Inverter vertically on a wall with the product’s longer sides upright.
The material of the wall must be noninflammable such as a metal plate.
For the mounting dimensions, refer to 1-3-2 External Dimensions on page 1-14.
Install the inverter in a location that meets the following conditions.
• Avoid installing the inverter in a dirty environment subject to oil mist, dust, or other airborne
particles. Install the inverter in a clean place, or in a full-enclosure type panel.
• Take measures during installation and operation to prevent foreign objects such as metal
particles, oil, and water from entering the inverter.
2-1-1 Inverter Installation
2-1-2 Installation Environment
Operating Environment Conditions
Rating Operating ambient temperature Operating ambient humidity
Heavy load mode –10 to 50°C 20% to 90% (with no condensation)
Light load mode –10 to 40°C 20% to 90% (with no condensation)
