Omron RX Series - External Dimensions; Connection Examples

12 Options
12 - 58
High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)

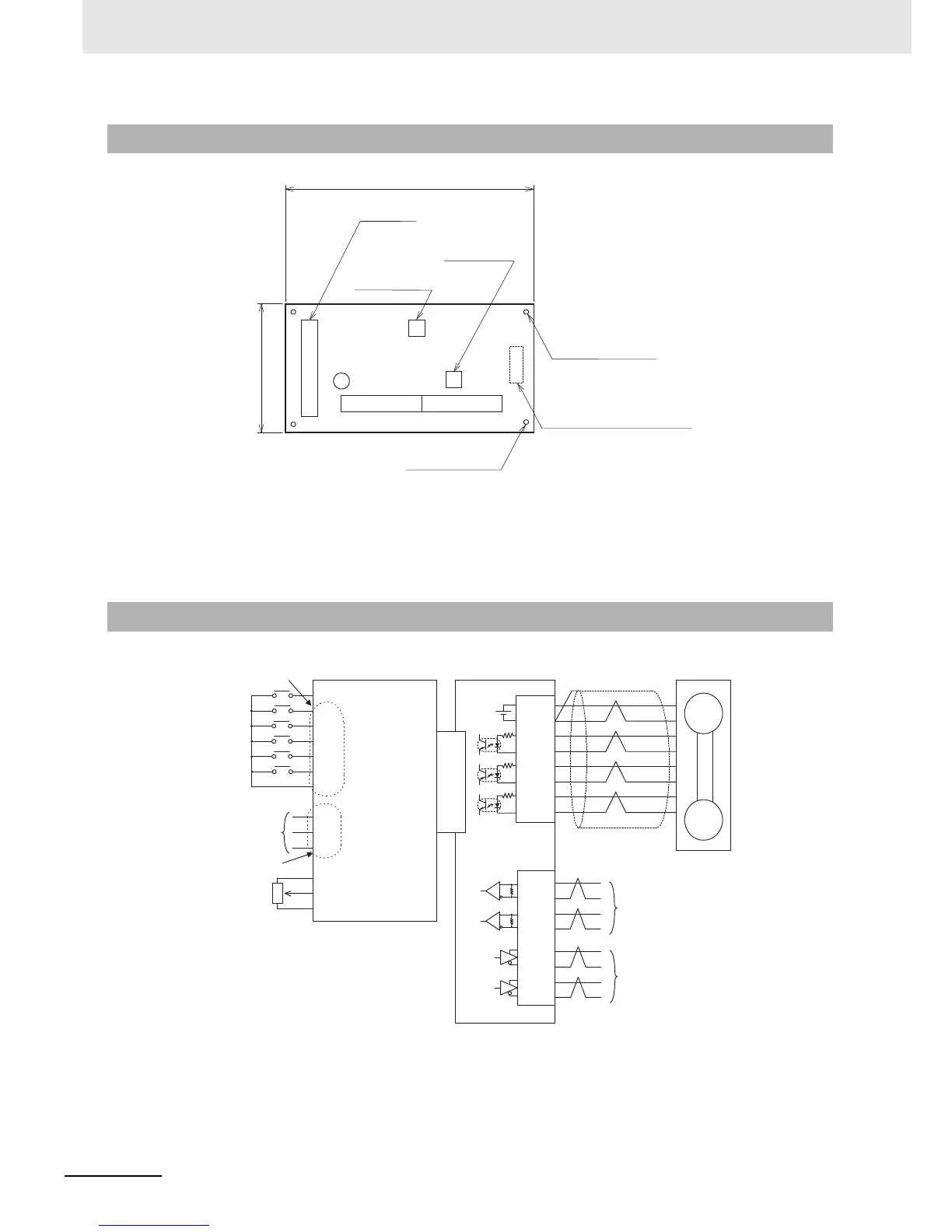

12-13-2 External Dimensions
12-13-3 Connection Examples
TM1 TM2
DIP switch
SWENC
DIP switch
SWR
54
104
M2, push-in type
Applicable screwdriver: Flat-blade 0.4 x 2.5
Wire diameter 0.75 mm
Screw tightening torque 0.2 to 0.25 N·m
TM1, TM2
Nameplate
Connector to the inverter
Screw fixing hole
Positioning hole
FS
FV
FC
Control terminal block on Inverter
Available to allocate
to multi-function input
terminals 1 to 8
EP5
5 VDC
EG5
EAP
EAN
EBP
EBN
EZP
EZN
M
EC
Motor with an
encoder
SAP
SAN
SBP
SBN
Pulse train
position command
POK
ZS
DSE
Output
terminal
FW
RV
LAC
PCLR
(Position deviation clear)
ORT
CM1
Input
terminal
AP
AN
BP
BN
Encoder
signal output
STAT
Encoder signal
TM1
Photocoupler
Photocoupler
Photocoupler
Reciever IC
TM2
(LAD cancel)
(Orientation)
(Pulse train position
command permission)
Available to allocate to
multi-function
output
terminals 1 to 5
(Position ready)
(0 Hz detection signal)
(Excessive speed deviation)
PG Board
Reciever IC
Reciever IC
Reciever IC
