7 Detailed Functions
7 - 44
High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)
• When RUN Command Selection (A002) is set to 02 (Digital Operator)

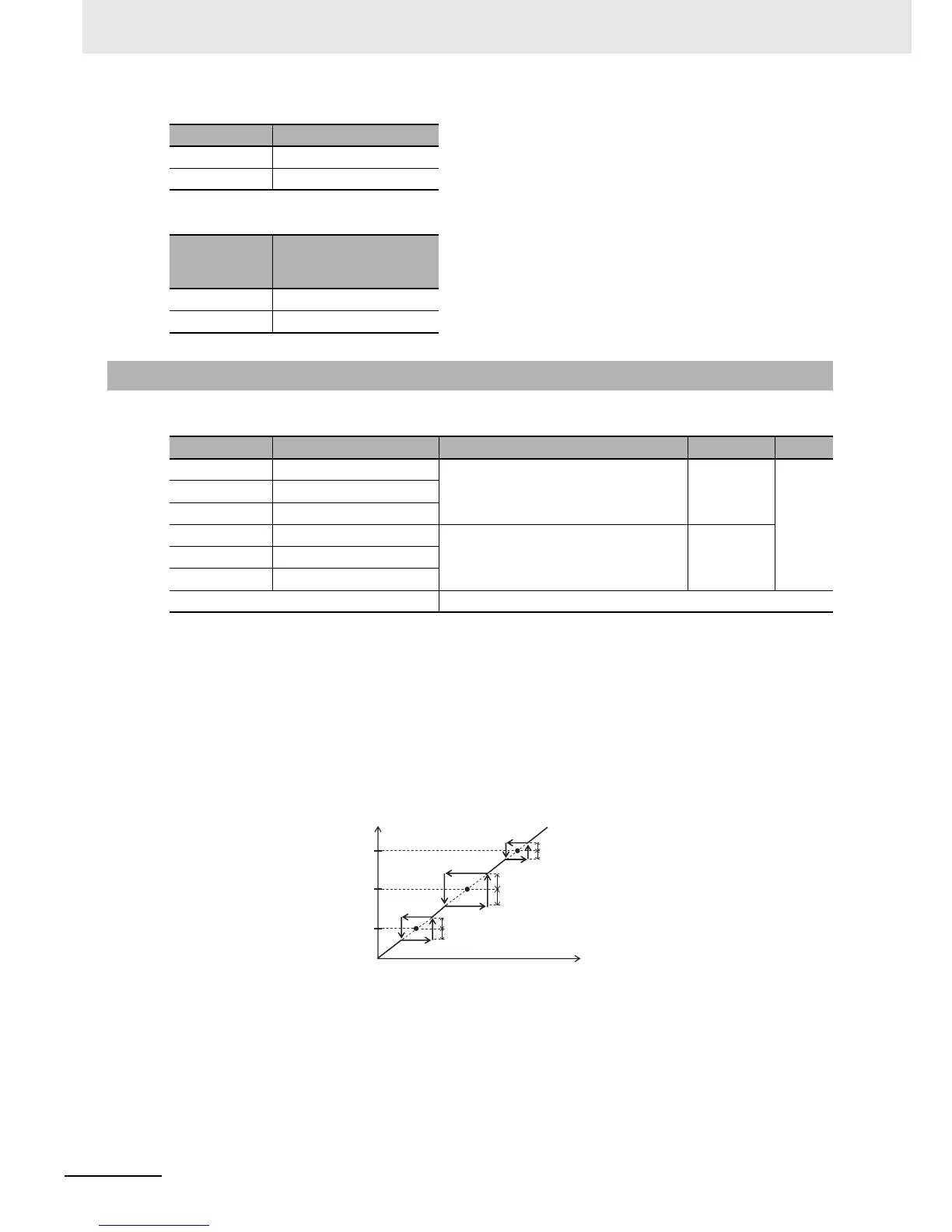

Use the frequency jump function to avoid the resonant point of the load machine during operation.
• In the Jump Frequency 1 to 3 (A063/A065/A067), set the center of the jump-target frequency range.
• In the Jump Frequency Width 1 to 3 (A064/A066/A068) set 1/2 of the width of the jump-target
frequency range.
• When a jump frequency is set, the output frequency is the upper/lower-limit frequency of the set jump
frequency range, avoiding frequencies within that range.
• The output frequency changes continuously according to the acceleration/deceleration time settings
during acceleration/deceleration.
• You can set up to three jump frequency ranges.
Terminal Rotation when FE = 0 V
FW (ON) A062 (Forward side)
RV (ON) A062 (Reverse side)
RUN Direction
Selection
(F004) setting
Rotation when FE = 0 V
00: Forward A062 (Forward side)
01: Reverse A062 (Reverse side)
Frequency Jump Function
Parameter No. Function name Data Default data Unit
A063 Jump Frequency 1
0.00: Disabled (Function not active)
0.01 to 99.99
100.0 to 400.0
0.00
Hz
A065 Jump Frequency 2
A067 Jump Frequency 3
A064 Jump Frequency Width 1
0.00 to 10.00 0.50A066 Jump Frequency Width 2
A068 Jump Frequency Width 3
Related functions C001 to C008
