2 Design
2 - 24
High-function General-purpose Inverter 3G3RX-V1 User’s Manual (I578-E1)
3G3RX-A2450-V1
3G3RX-A4450-V1
3G3RX-A4550-V1
Ro, To: M4
Ground terminal: M8
Others: M8

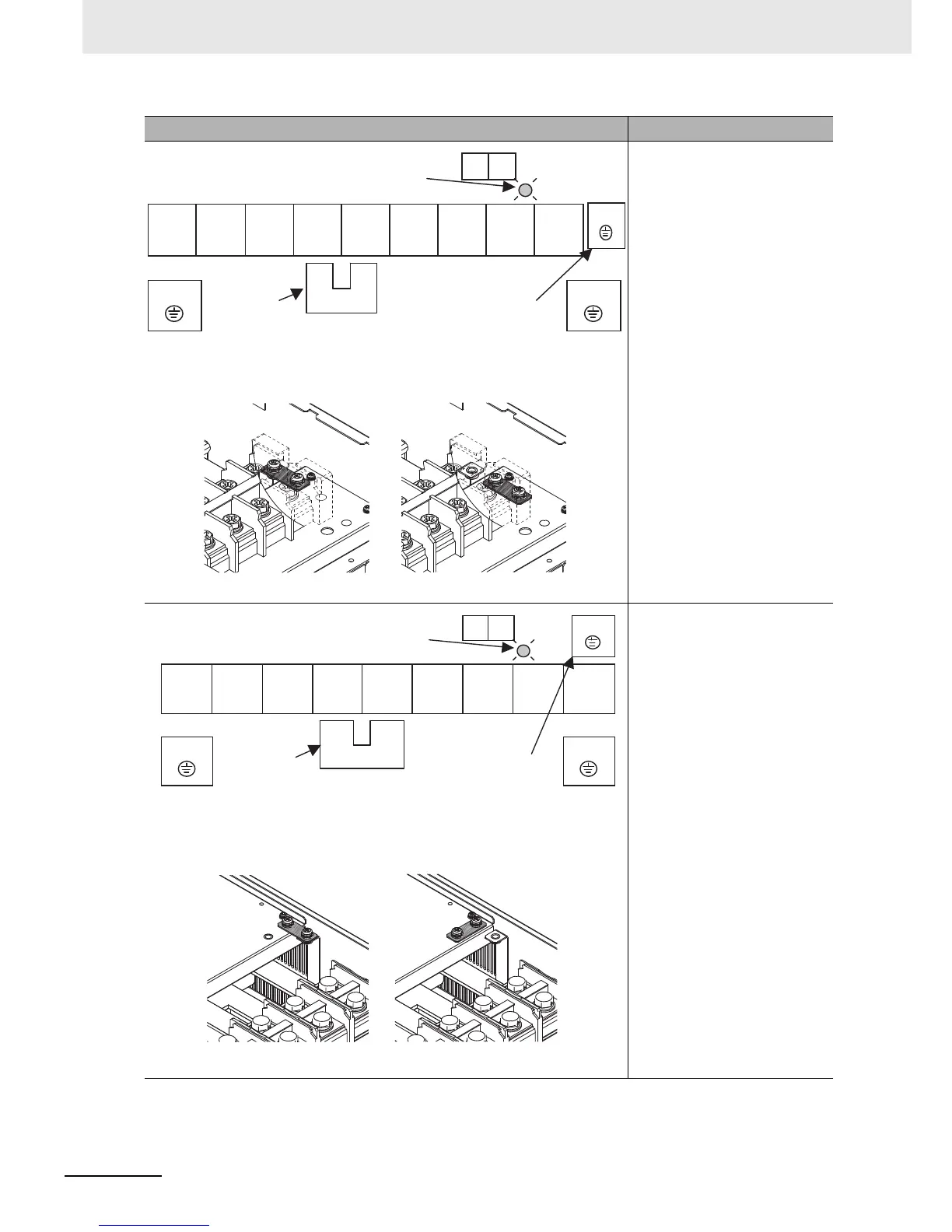

[EMC filter function switching method]
3G3RX-A2550-V1
Ro, To: M4
Ground terminal: M8
Others: M10
[EMC filter function switching method]
Terminal arrangement Applicable model
Ro To
GG
G
Charge indicator
+1–P/+2
short-circuit bar
R/L1 S/L2 T/L3 +1
P/+2 N/– U/T1 V/T2 W/T3
Ground terminal with
short-circuit bar (shaded area)
for EMC filter function switching
When not using the DC reactor,
keep the +1–P/+2 short-circuit
bar attached.
EMC filter enabled EMC filter disabled (factory setting)
Charge indicator
+1–P/+2
short-circuit bar
Ro To
G
G
G
R/L1 S/L2 T/L3 +1
P/+2 N/– U/T1 V/T2 W/T3
Ground terminal with
short-circuit bar (shaded area)
for EMC filter function switching
When not using the DC reactor,
keep the +1–P/+2 short-circuit
bar attached.
EMC filter enabled EMC filter disabled (factory setting)
