Chapter 4 Configuring Your Library
Configuring Devices
Scalar i2000 User’s Guide 151
5 Click Configure.

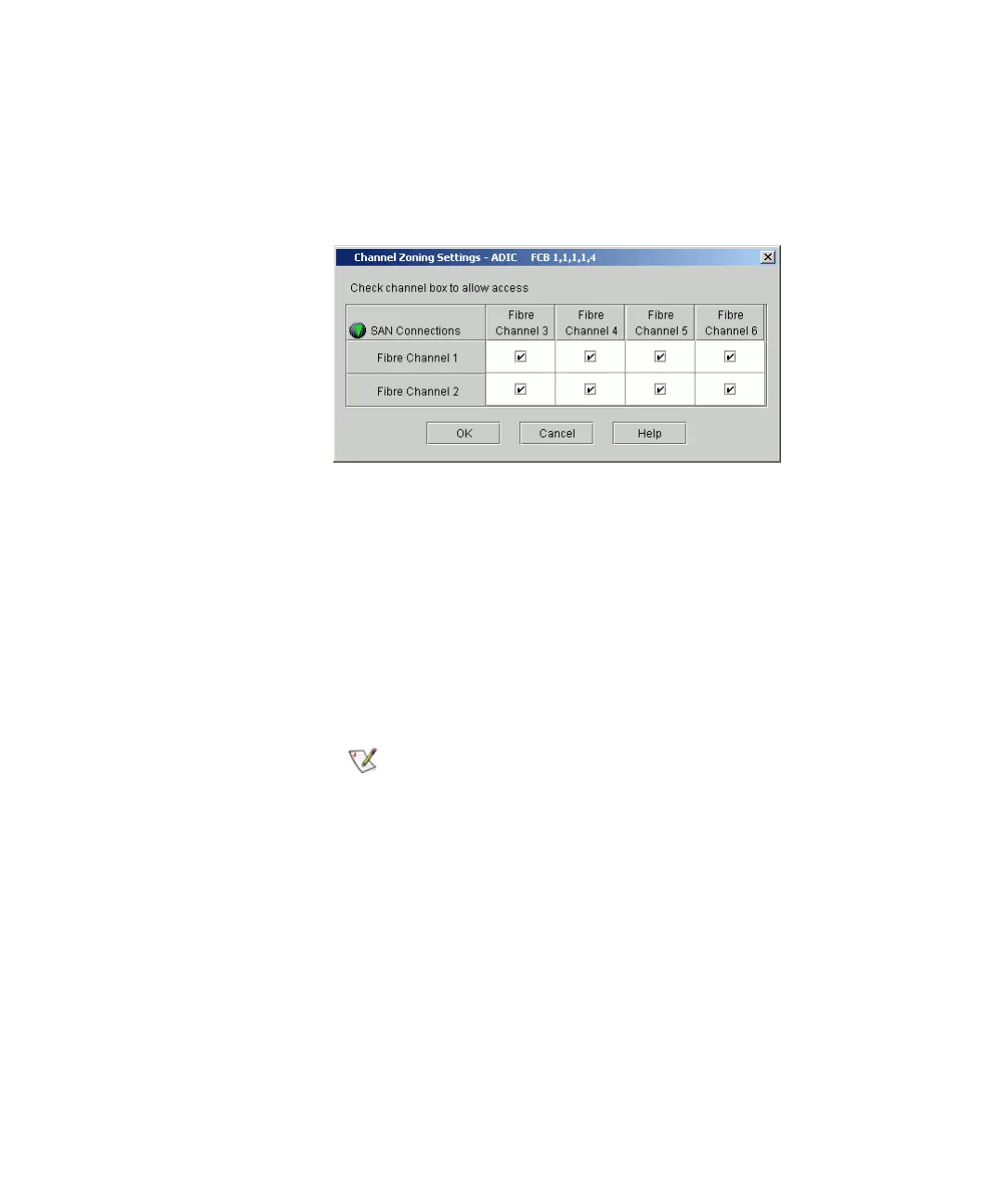

The Channel Zoning Settings dialog box appears for the selected I/O
blade. By default, all FC ports have access to all channels.
6 If you want to permit access, select the check box in the cell where the
target port and the initiator channel meet. If you want to restrict
access, clear the check box in the cell where the target port and the
initiator channel meet.
If an FC port is set to target and initiator mode, the port appears in both
the horizontal row and vertical column. To prevent ghosting, the FC port
is not allowed access to itself. Ghosting is a condition where hosts can see
storage in two places.
7 To continue, click OK.
8 You must reboot the I/O blade for the new configuration settings to
take effect. In the Attention dialog box, click Yes to proceed. If you
do not want to continue with the configuration, click No.
9 After you complete your configuration changes, click Close.
When you select a check box in the cell, the entire
channel is zoned. This zoning affects any host that
might being accessing the I/O blade. Channel
zoning settings supersede any host LUN mapping
on the I/O blade.
