Chapter 2 Troubleshooting Your Library
Interpreting LEDs
Scalar i2000 User’s Guide 67

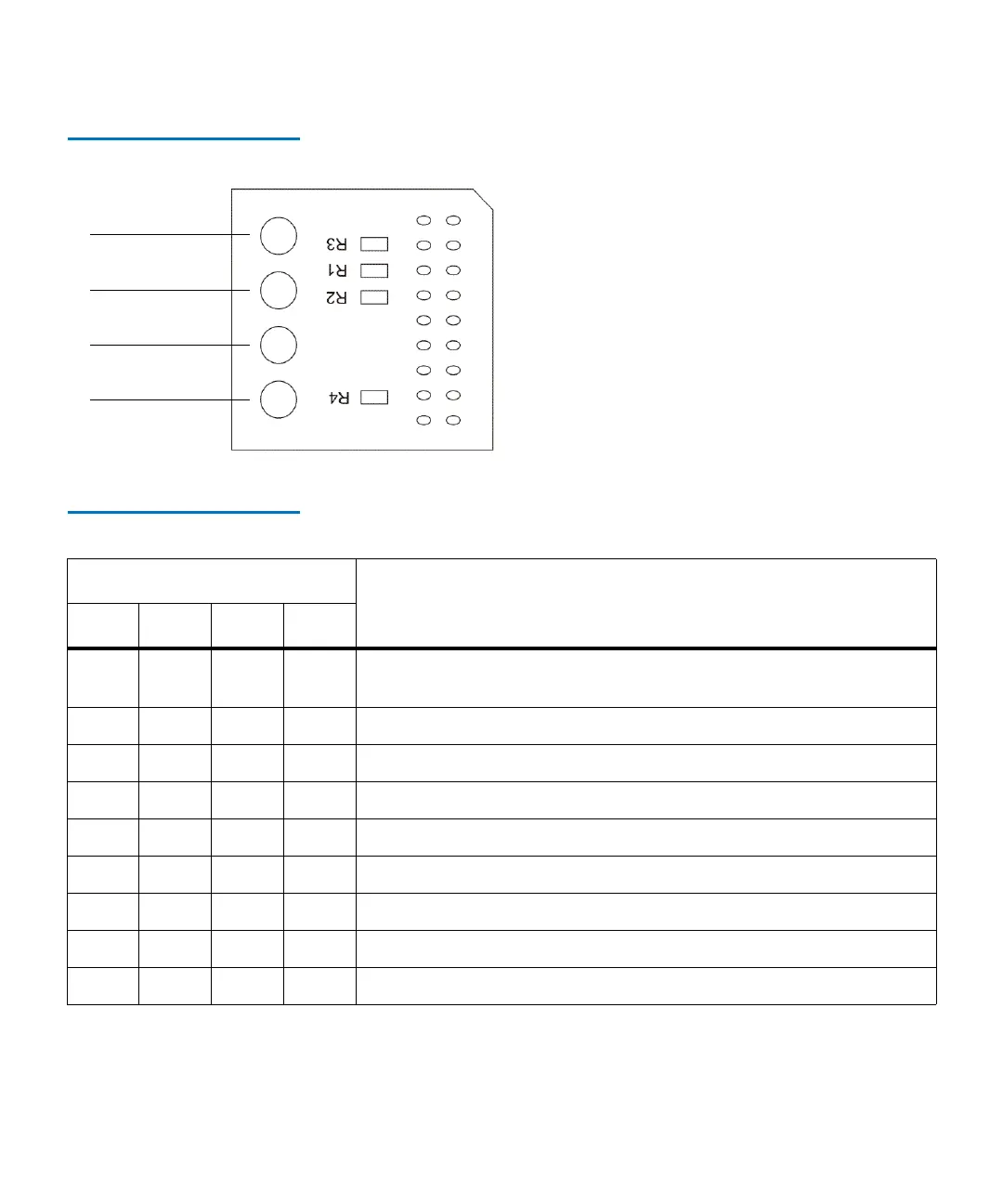

Figure 8 Locations of LBX
Terminator LEDs (Version 01)
Table 12 LBX LED Version 01
LED On/Off Combinations
Explanation1 2 3 4
Off Off Off Off Robotics are disabled, the access door is open, or the LBX terminator
is misaligned.
On Off Off Off The library has one control module and no expansion modules.
On On Off Off The library has one control module and one expansion module.
On On On Off The library has one control module and two expansion modules.
On On On On The library has one control module and three expansion modules.
On Off On On The library has one control module and four expansion modules.
On On Off On The library has one control module and five expansion modules.
On Off On Off The library has one control module and six expansion modules.
On Off Off On The library has one control module and seven expansion modules.
