Chapter 4 Configuring Your Library
Configuring Devices
Scalar i2000 User’s Guide 156
When a device has been mapped, it is still listed, but unavailable, in the
Internal LUN column.

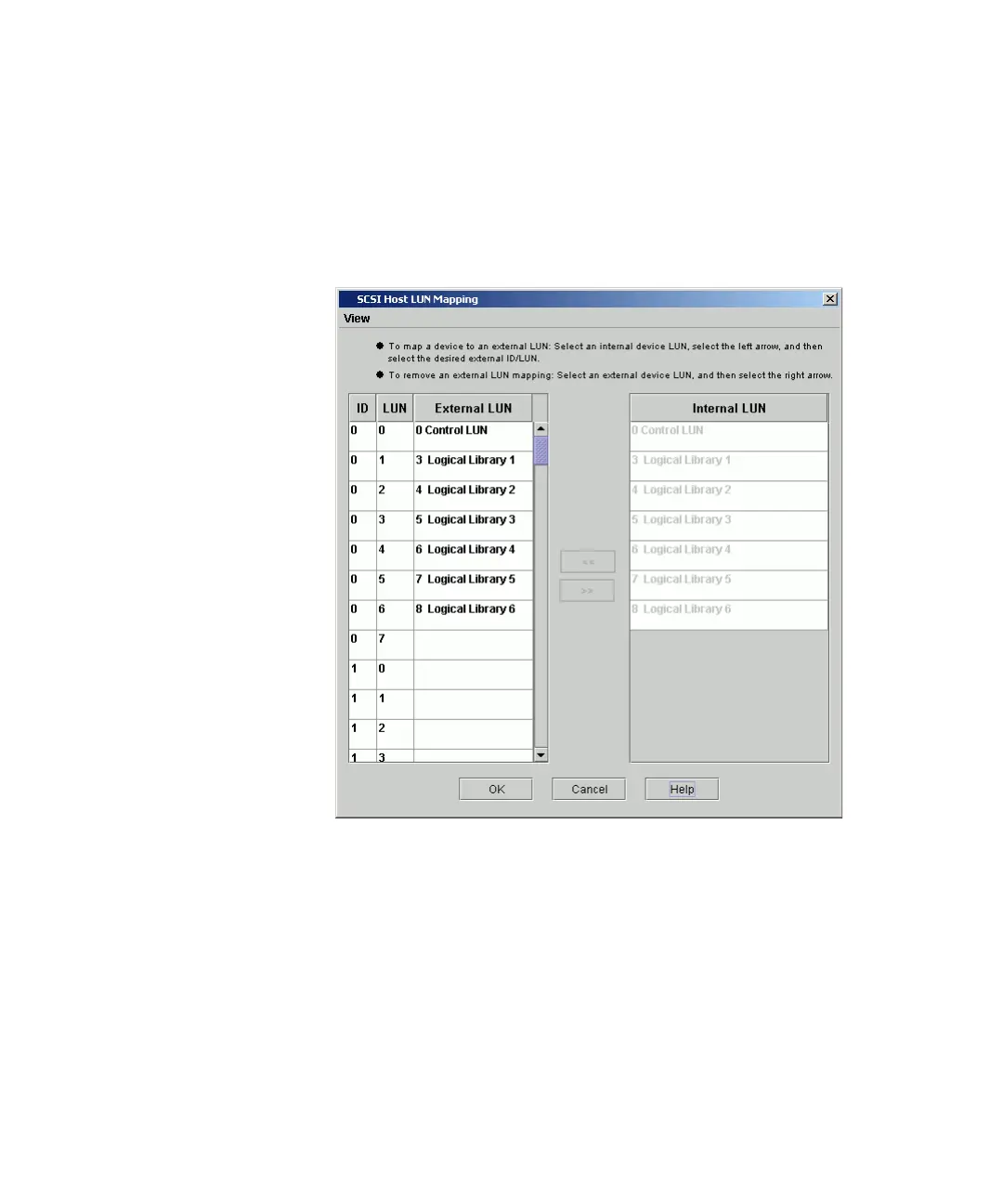

In the following figure, no LUNs are currently available for mapping
because they have been mapped into the ID/LUN/External LUN column
already.
Drag the LUNs back into the Device column to make them available for
re-mapping. If you are working from the local touch screen, select an
external device LUN, and then select the right arrow.
Setting the View for the SCSI Host Device Column 4
Click View at the top of the SCSI Host dialog box. If you want to see
product details, select the Show Details check box. If you want to see only
the names of the devices available for mapping, clear the Show Details
check box to toggle the display back to the default view.
