Chapter 5 Maintaining Your Library
Monitoring the Library
Scalar i2000 User’s Guide 226
Displaying Voltage Information 5

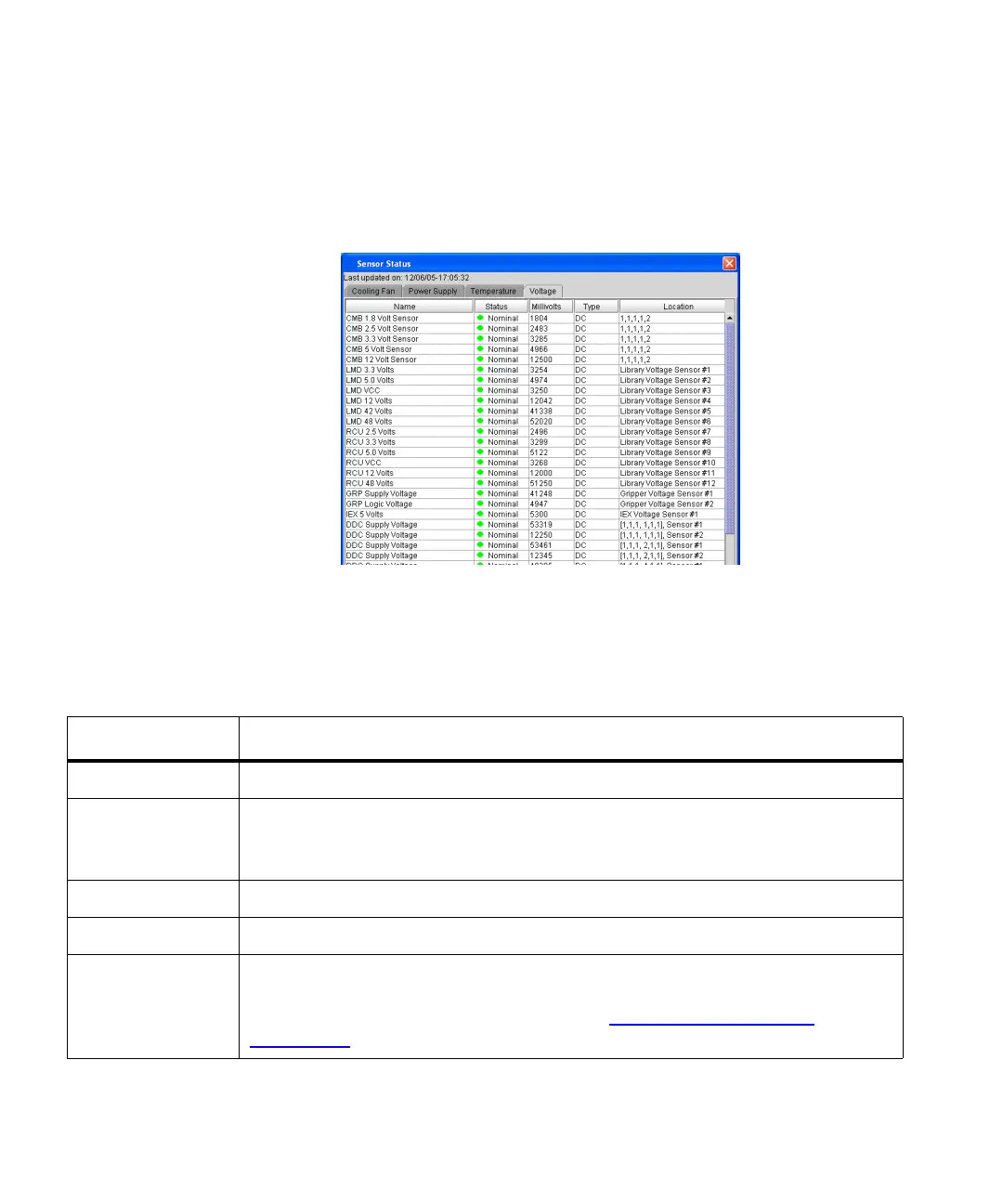

1 To display voltage status information for various library components,
click the Voltage tab on the Sensor Status dialog box.
The following table describes the elements on the Voltage tab.
2 To view current information, click Refresh.
Element Description
Name The name of the voltage sensor.
Status The voltage status at the location of the sensor. If the voltage is within normal
operational limits, the status is nominal. Otherwise, a warning or alarm is
indicated.
Millivolts The sensor’s voltage reading in millivolts.
Type The type of power at the location of the sensor (AC or DC).
Location The location of the voltage sensor within the library. Control management
blade (CMB) locations are indicated by means of a coordinate system. For
information about location coordinates, see
Understanding Location
Coordinates on page 366.
