"Add All..." copies the correction data of all channels to the cal pool, generating
new pool members (cal groups).
●
"Replace" overwrites a cal group with new correction data.
●
"Apply" assigns the selected cal group to the selected channel.
●
"Apply to All" assigns the selected cal group to all channels in the "Channel State"
table.
For channels that are linked to a "Cal Group" (using "Apply" or "Apply to All"), a new
calibration overwrites the cal group data and hence affects all channels that are also

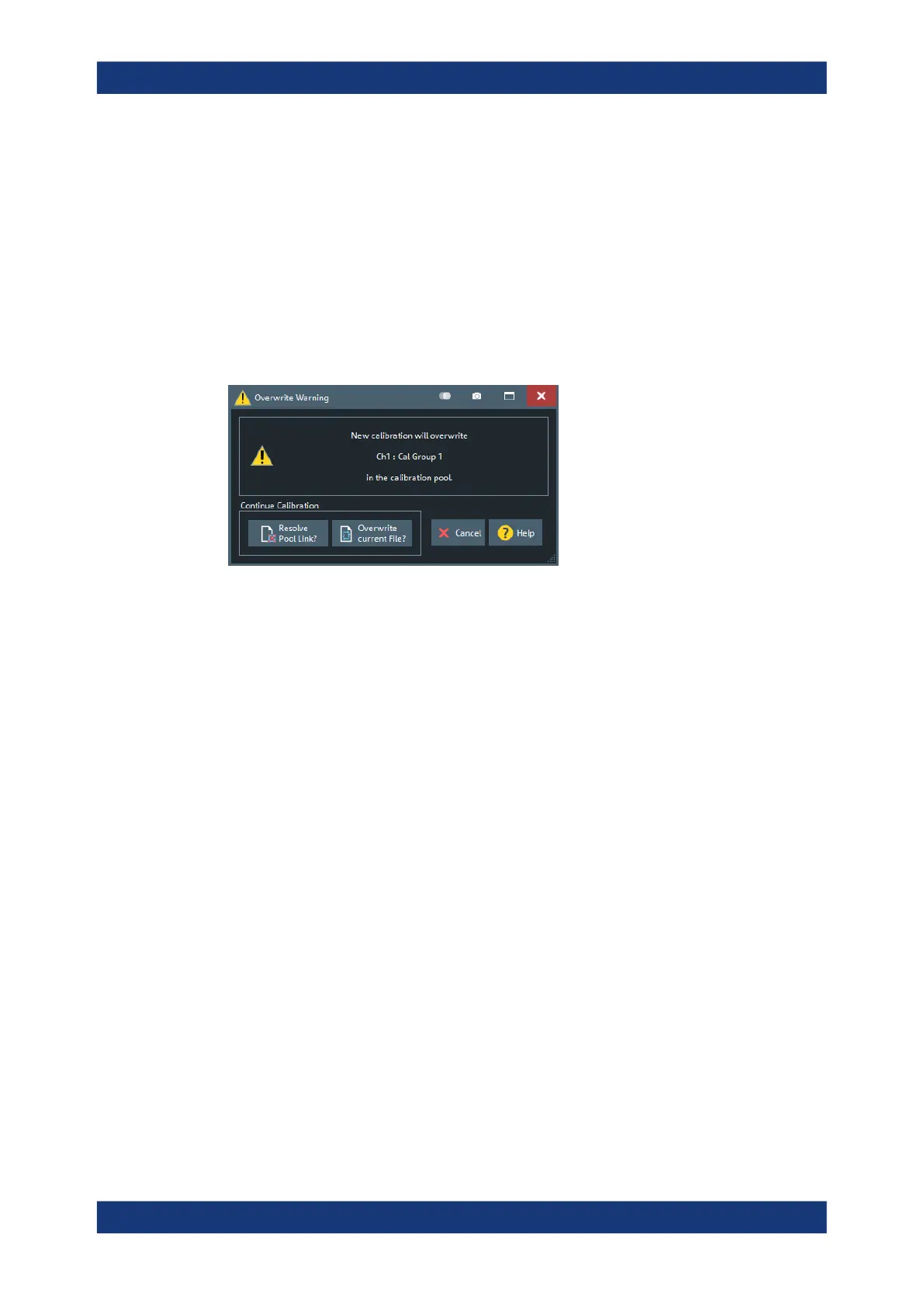

linked to this cal group. An "Overwrite Warning" is displayed in this case. To continue
with the calibration, confirm by using button "Overwrite Current File?" or "Resolve Pool
Link / Remove Pool Link" on page 524.
Remote command:
MMEMory:STORe:CORRection
MMEMory:LOAD:CORRection
MMEMory:LOAD:CORRection:MERGe
Pool / Delete from Pool
The "Pool" table shows all correction data sets <CalGroup_name>.cal in the direc-
tory C:\Users\Public\Documents\Rohde-Schwarz\ZNL\Calibration\Data.
The name of a pool data set can be modified directly in the corresponding table cell.
"Delete from Pool" deletes a cal group file from the pool. Note however, that calibra-
tions being used in any of the opened channel setups cannot be deleted.
Remote command:
MMEMory:DELete:CORRection
Preset User Cal
Selects a cal group from the pool that is activated during a user-defined preset.
Remote command:
SYSTem:PRESet:USER:CAL
Resolve Pool Link / Remove Pool Link
Deletes a link between the selected channel and a "Cal Group" (previously created
using "Apply" or "Apply to All"). With "Resolve Pool Link", the cal group data are still
used as a channel calibration ("Channel Cal") for this channel. With "Remove Pool
Link" the channel calibration is removed.
Remote command:
MMEMory:LOAD:CORRection:RESolve
