R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
Trace Menu
Operating Manual 1145.1084.12 – 30 136
k show the SI units of a current (W/V) and an inverse resistance (W/V2), respectively.
Models 1 and 4 provide the exact DC power supplied to the DUT, the two other models are based on the
approximation P
R
= 0.
[SENSe<Chn>:]PAE:EXPRession
[SENSe<Chn>:]PAE:C
[SENSe<Chn>:]PAE:K
Power Sensor...
Opens a configuration dialog for the measurement of wave quantities using an external power meter.

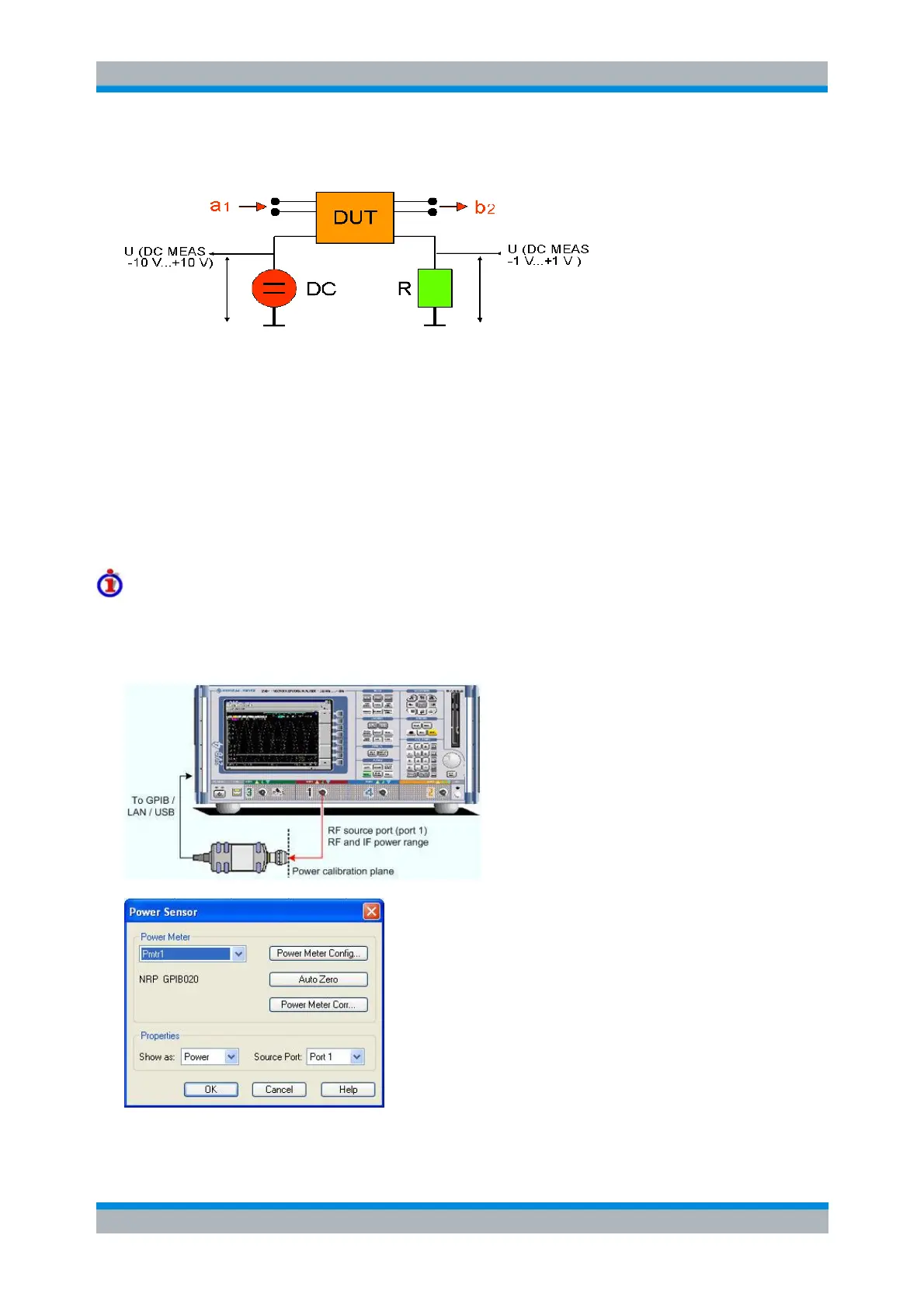

Power Sensor measurement example
The simplest test setup for a Power Sensor measurement involves one analyzer source port and a power
sensor. The power sensor is connected e.g. to the analyzer's USB port and provides the (scalar) wave
quantity results.
The controls in the Power Meter panel show the configured power meters, open the System
