Show All Ripple Results
Shows or hides the info field for all traces in the active setup, irrespective of the active trace. If Show
Result All Traces is disabled (and the ripple check is on), the info field covers the active trace only.
Remote control:
No direct equivalent (display configuration)
Global Beep
Activates or deactivates the fail beep. The fail beep is a low-tone acoustic signal that is generated each
time the analyzer detects an exceeded limit. No fail beep can be generated if the limit check is switched
off. A checkmark appears next to the menu item when the fail beep is enabled.
Remote control:
CALCulate<Chn>:RIPPle:SOUNd:STATe ON | OFF
Global Check

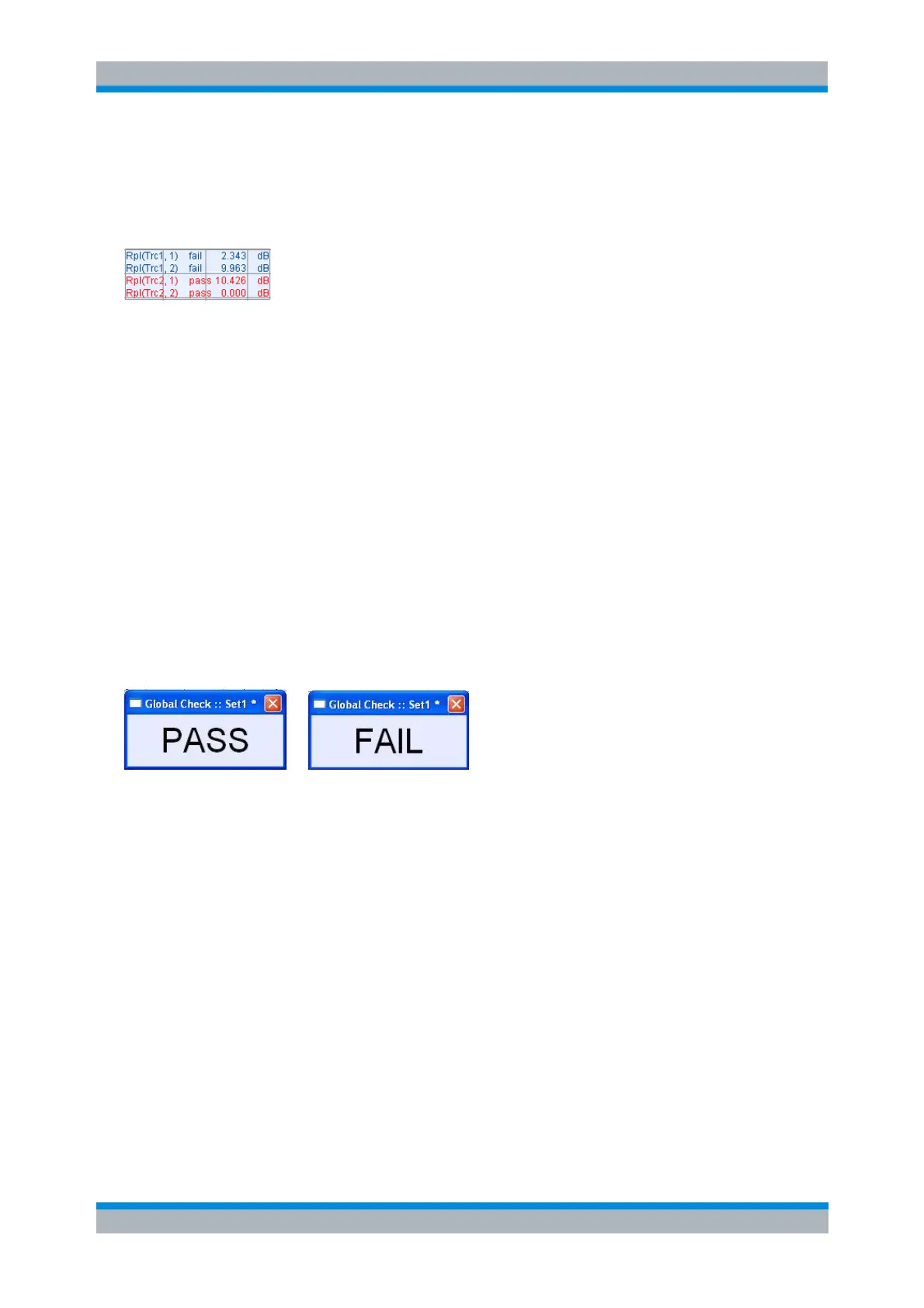

Activates or deactivates the global limit check including upper/lower limits and ripple limits. The global limit
check is a composite limit check over all traces of the current setup. The result of the global check
appears in a popup box whenever Global Limit Check is pressed.
or
 PASS represents pass for all traces with enabled limit check. A trace without limit lines or with
disabled individual limit check always passes the global check.
 FAIL means that the limit check for one or more traces failed.
Remote control:
CALCulate<Chn>:CLIMits:FAIL?
TTL Out Pass 1/2
Assigns the active trace to the low-voltage (3.3 V) TTL output signals at the USER CONTROL connector.
To select TTL Out Pass 1 / 2, the limit check of the active trace must be switched on.
 If TTL Out Pass 1 is selected and the active trace passes the limit check (including upper/lower
limits and ripple limits), then the TTL signal is applied to pin 13 of the USER CONTROL
connector.
 If TTL Out Pass 2 is selected and the active trace passes the limit check (including upper/lower
limits and ripple limits), then the TTL signal is applied to pin 14 of the USER CONTROL
connector.
