ZVT System Overview
Screen Elements
Operating Manual 1145.1084.12 – 30 31

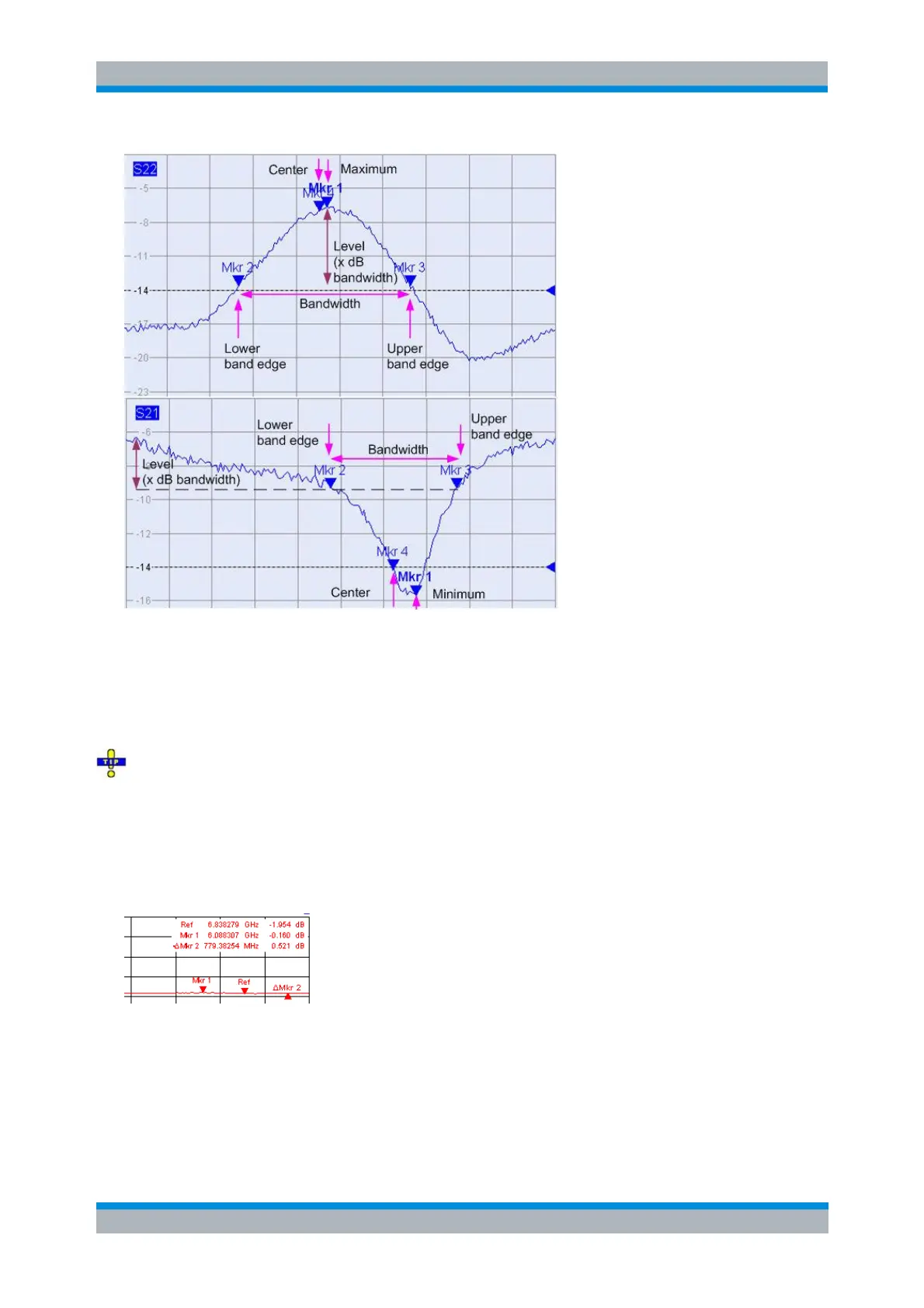

 Mkr 1 indicates the maximum (minimum) of the peak.
 Mkr 2 and Mkr 3 indicate the lower and upper band edge where the trace value has decreased
(increased) by a definite Level value.
 Mkr 4 indicates the center of the peak, calculated as the arithmetic mean value of the LBE and
UBE positions.
The Paste Marker List allows you to select marker values as numeric entries.
Marker Info Field
The coordinates of all markers defined in a diagram area are displayed in the info field, which by default is
located in the upper right corner.
The list contains the following information:
 Mkr 1, Mkr 2, ... denote the marker numbers. Markers are displayed with the same color as the
associated trace.
 The marker coordinates are expressed in one of the marker formats selected via Marker Format.
The formats of the markers assigned to a trace are independent of each other and of the trace
format settings.
