R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
System Menu
Operating Manual 1145.1084.12 – 30 542

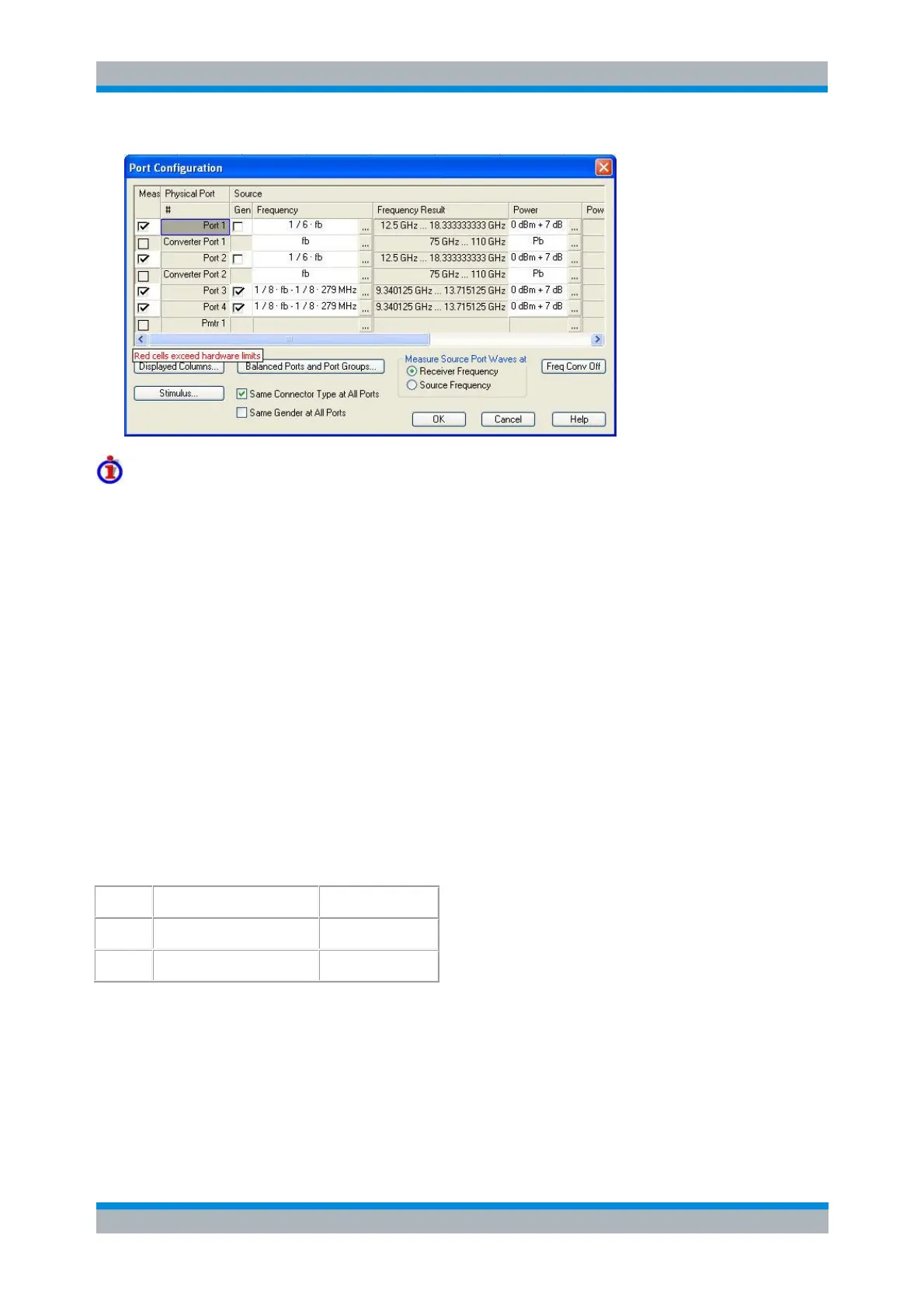

Tooltips in the dialog
Insufficient Frequency Range of Analyzer or external Generator.
This tooltip is displayed in the following cases:
o The frequency range of the analyzer is insufficient (e.g. in case of R&S ZVA/T8)
o For converter setups if an external generator with insufficient frequency range is used as
LO signal; please check the related generator configuration file in this case.
[SENSe<Ch>:]FREQuency:CONVersion:DEVice:MODE
[SENSe<Ch>:]FREQuency:CONVersion:DEVice:NAME
Port Assignment
The current assignment of converters to NWA test ports is shown in the Port Assignment table. If upon
powering-up of the NWA a converter is found in the port assignment table whose serial number has
already been registered, no user prompts are issued. It is assumed that the user wants to continue with
the current setup.
The Port Assignment table is only shown if a converter Type other than None was selected. The available
ports are determined by the configuration selected in the Use of External Sources picture list.
In the example above a converter R&S ZC330 with serial number 100001 was assigned to test port 1.
From the system configuration (R&S ZVA24 without external generator) two test ports are available, and
hence the table contains two rows. As no converter was assigned to port 2, no power control data can be
provided.
Column Port # is read-only. Column Serial # of Converter is for future use. The combo-box allows to select
the serial number of a converter R&S ZCxxx or Unknown. If you select a serial number that was previously
assigned to a different test port, this assignment is automatically deleted. For converters of the R&S ZVA-
Zxxx family the serial number is Unknown.
