R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
System Menu
Operating Manual 1145.1084.12 – 30 558
converted signals (for a frequency sweep, the input and output frequencies at the DUT ports). All
measured quantities (Sparameters, wave quantities, ratios etc.) and other trace settings are available.

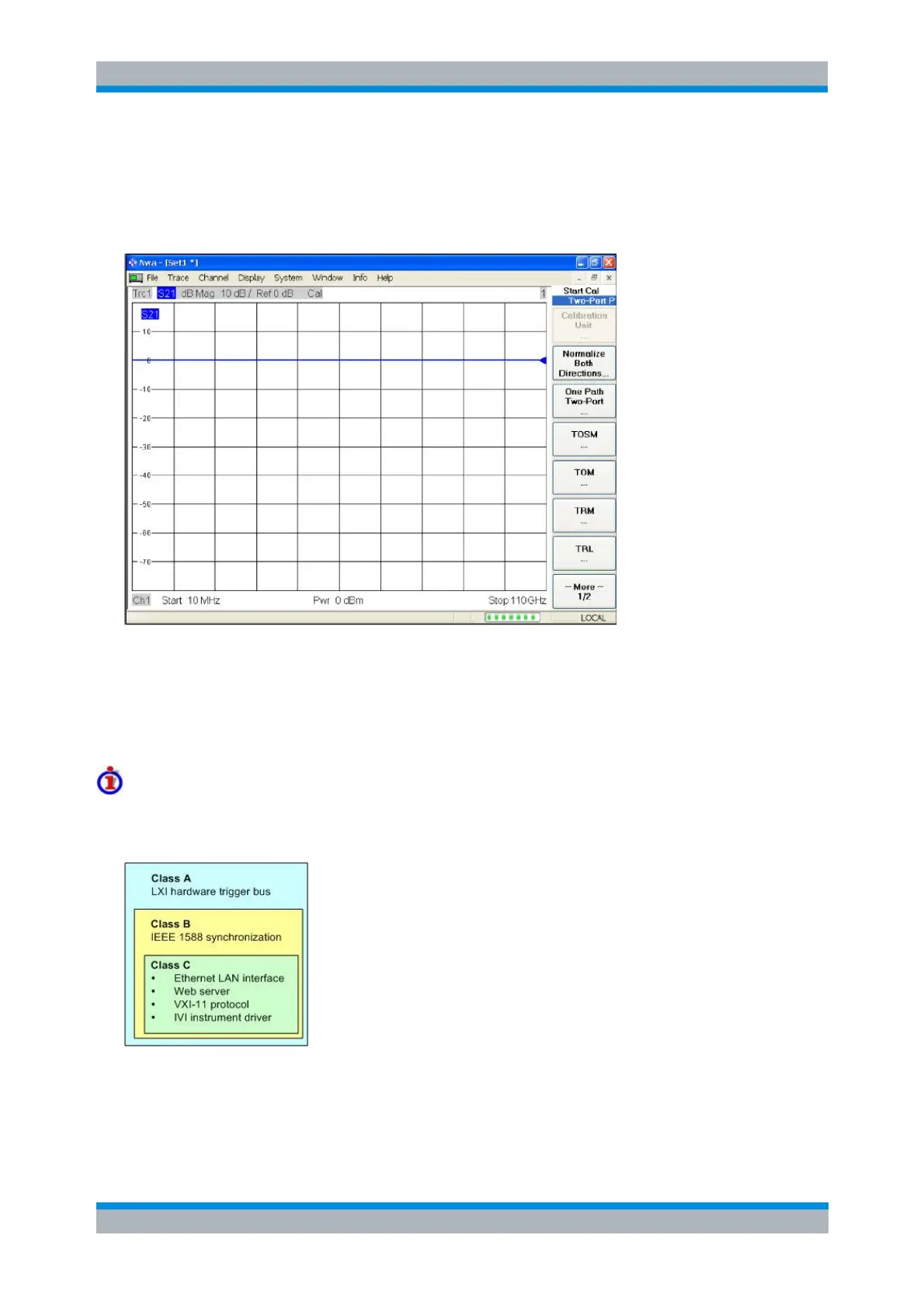

The following example shows a transmission measurement on a through connection in the frequency
range between 10 MHz and 110 GHz.
LXI Configuration (R&S ZVA and R&S ZVB Analyzers)
LAN eXtensions for Instrumentation (LXI) is an instrumentation platform for measuring instruments and
test systems that is based on standard Ethernet technology. LXI is intended to be the LAN-based
successor to GPIB, combining the advantages of Ethernet with the simplicity and familiarity of GPIB.
LXI classes and LXI functionality
LXI-compliant instruments are divided into three classes, A, B and C, with the functionality of the classes
hierarchically based one upon the other:
Class C instruments are characterized by a common LAN implementation, including an ICMP
ping responder for diagnostics. The instruments can be configured via a web browser; a LAN
Configuration Initialize (LCI) mechanism resets the LAN configuration. The LXI class C
instruments shall also support automatic detection in a LAN via the VXI-11 discovery protocol and
