LASER UNIT 26 July 2002
3-18
3.4.3 POLYGONAL MIRROR MOTOR AND LSD
!WARNING
Do not touch any edges of the polygon mirror, spring, or bracket. These
edges can cause serious injury.
1. Development units, LD cover (☛ 3.4.2)
2. Cover [A] (! x 1)
NOTE: Before removing the cover, clean
the cover to prevent toner from
entering into the unit.
3. Polygonal mirror motor [B]
(" x 1, ! x 4)
NOTE: Do not touch the mirror
surface.
4. Synch. detection board (LSD) [C]
(" x 1, ! x 1)

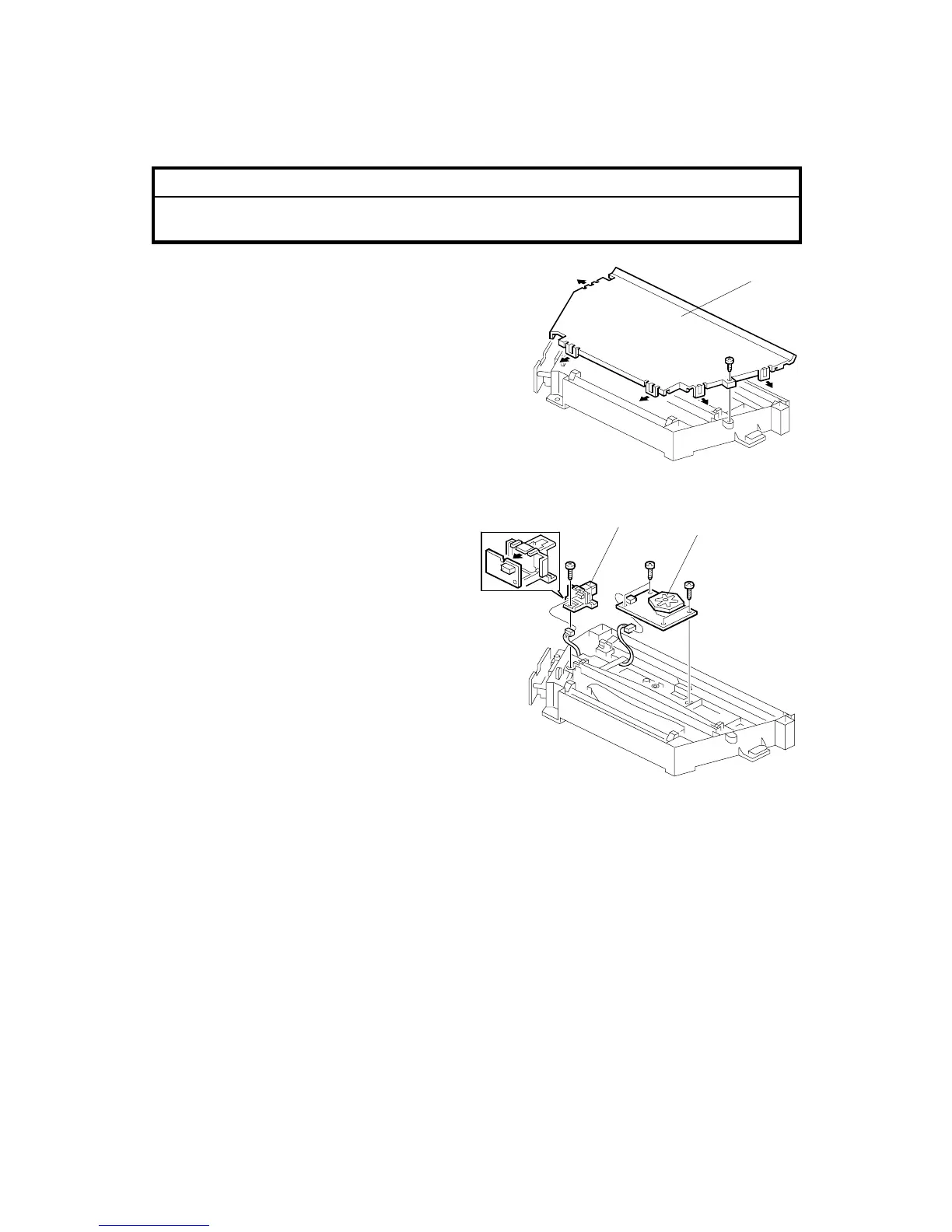

B051R904.WMF
B051R905.WMF
[A]
[B]
[C]
To Next Page
