Ricoh U-C1 B051 - Registration Sensor

26 July 2002 PAPER FEED AND TRANSPORT
3-37
Replacement
Adjustment
3.9.2 REGISTRATION SENSOR

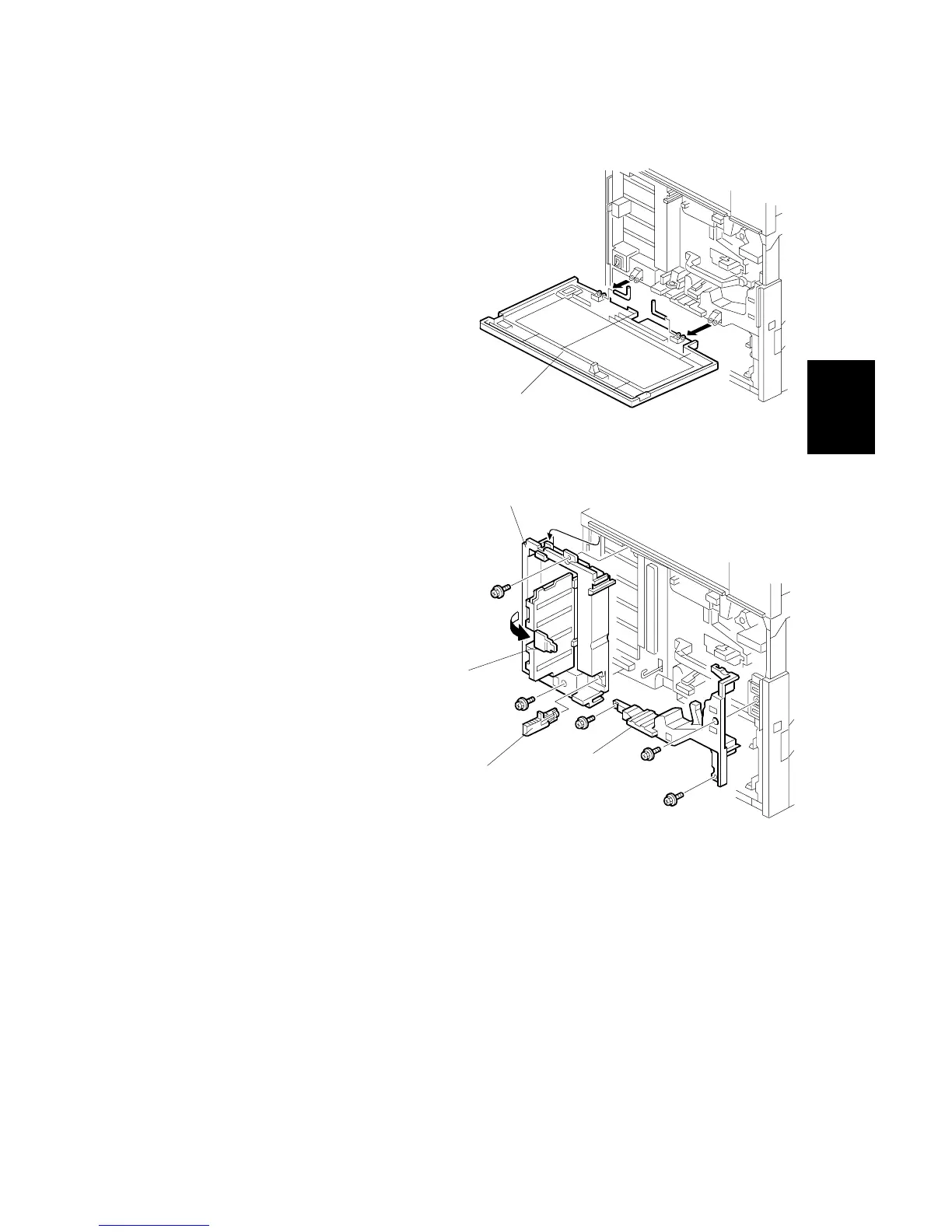

1. Front cover [A] (L-shaped pin x 2)
2. Remove the upper tray.
3. Rear cover, lower rear cover, and
lower left cover (☛ 3.4.2)
4. Right cover (☛ 3.7.1)
5. Paper exit tray (☛ 3.8.14)
6. Charge corona unit (☛ 3.6.3)
7. Dust shield glass cleaning lever [B]
8. Open the left inner cover door [C].
9. Left inner cover [D] (! x 2)
10. Right inner cover [E] (! x 3)
NOTE: Pull out the PCU when
removing the right inner
cover.
B051R602.WMF
B051R603.WMF
[A]
[C]
[D]
[E]
[B]
