6.9.5 DEVELOPMENT UNIT CONTACT MECHANISM
Mechanism
Each development unit has an independent clutch. When a development clutch
turns on, a gear under the development unit moves the development unit into
contact with the OPC belt. When the clutch turns off, two springs (one at the front
and one at the rear) detach the development unit from the OPC belt.
☛ ! Color Processes – Color Development – Fixed Position Development
Systems – Similar to Example 2: Model G033

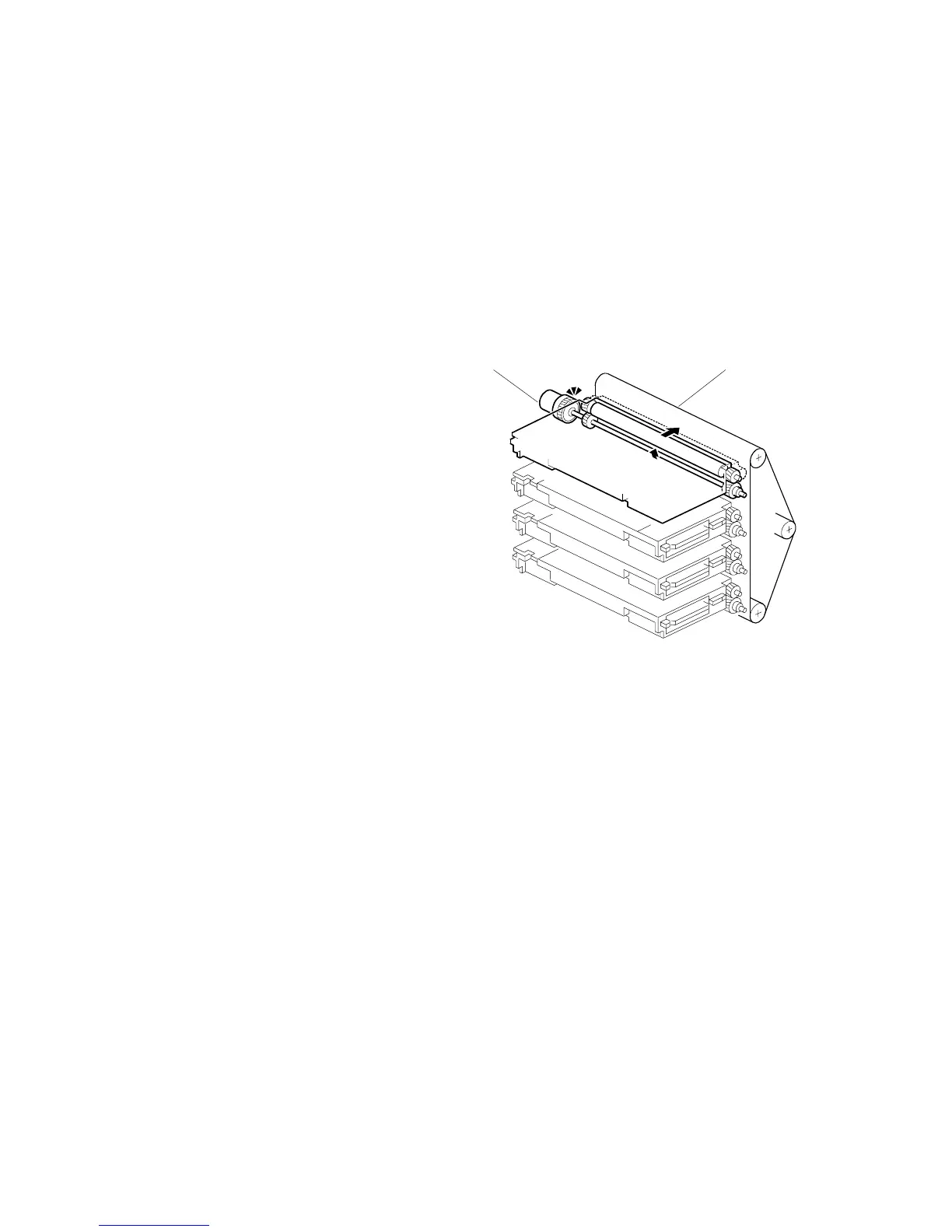

[A]: OPC belt
[B]: Development clutch
Reverse Rotation
The gears reverse at intervals to prevent toner from clumping.
B051D305.WMF
[A] [B]
