26 July 2002 ANTI-CONDENSATION HEATER
1-53
Installation
1.17 ANTI-CONDENSATION HEATER
!CAUTION
Unplug the main machine power cord before starting the following
procedure.

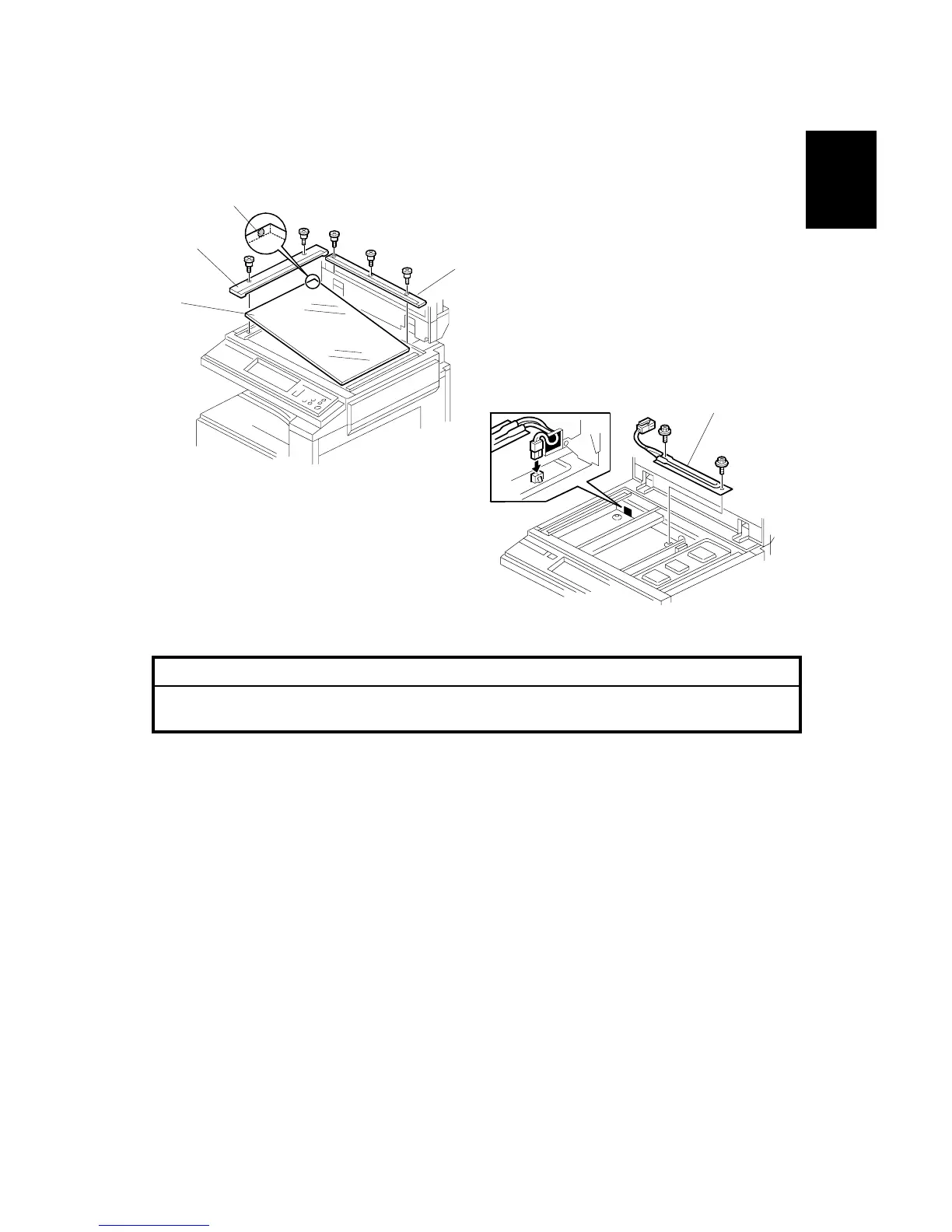

1. Remove the rear scale [A] (! x 3), left scale [B] (! x 2), and exposure glass
[C].
NOTE: When installing the exposure glass, make sure that the mark [D] is
positioned at the rear left corner, as shown.
2. Install the anti-condensation heater [E] (! x 2, " x 1).
3. Reinstall the exposure glass and the scales.
B051I151.WMF
B051I139.WMF
[A]
[B]
[C]
[D]
[E]
