3.10.6 POWER SUPPLY UNIT
NOTE: When having removed the oil pipe from the oil tank, lift the end of the pipe
and stick it to the right side of the machine with tape. See if oil does not
drip from the pipe.
1. Open the controller box (☛ 3.9.2).

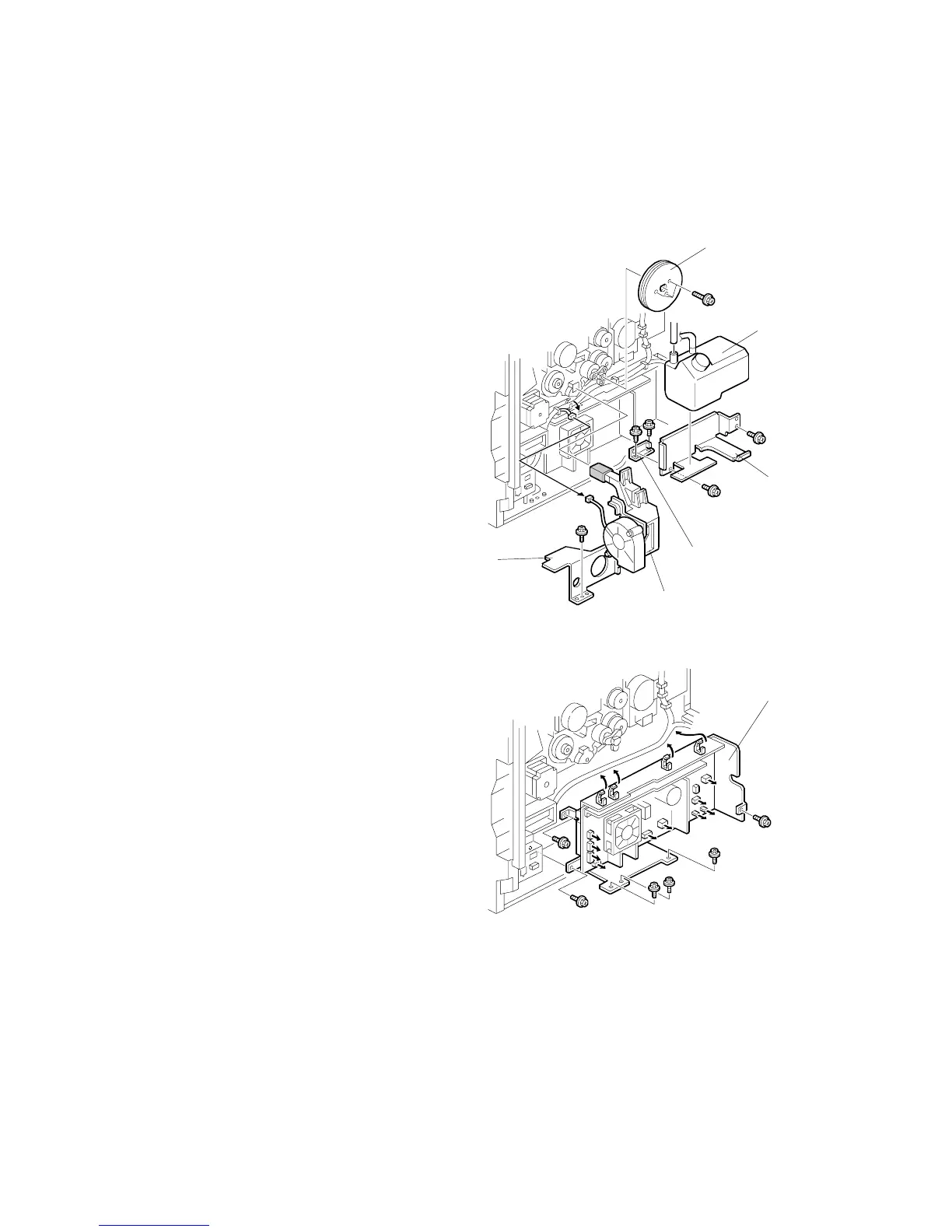

2. Oil tank [A]
3. Flywheel [B] (! x 3)
4. Duct [C] with bracket [D]
(" x 1, ! x 1)
5. Oil tank holder [E] (! x 2)
6. Bracket [F] (! x 2)
7. Power supply unit [G]
(" x 10, ! x 6)
B051R814.WMF
B051R815.WMF
[A]
[B]
[C]
[D]
[E]
[G]
[F]
